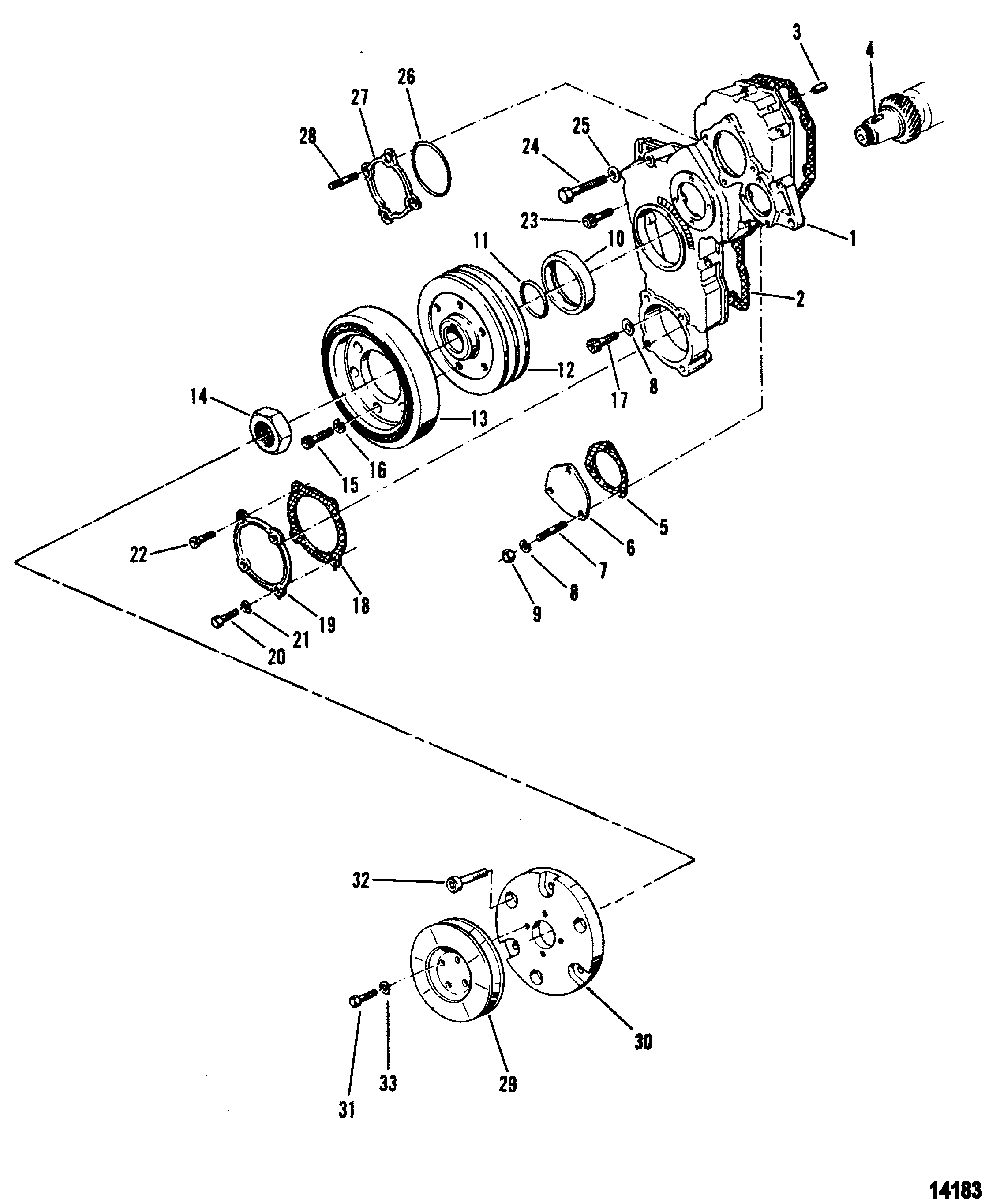

Front Cover для Mercruiser - D3.0L (BRAVO) VM 183 I/L5 1994-1997 0D725152 THRU 0F999999
-
№АртикулНазвание
-
1898135 COVER
(Quantities (5 CYL) - 1; (6 CYL) - 1)COVER
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
227-854096001 GASKET
(Quantities (5 CYL) - 1; (6 CYL) - 1)GASKET
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
317-801331212 PIN
(Quantities (5 CYL) - 2; (6 CYL) - 2)PIN
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
428-801331705 KEY
(Quantities (5 CYL) - 1; (6 CYL) - 1)KEY
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
527-801331621 GASKET
(Quantities (5 CYL) - 1; (6 CYL) - 1)GASKET
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
6801331620 COVER
(Quantities (5 CYL) - 1; (6 CYL) - 1)COVER
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
716-801761801 STUD
(Quantities (5 CYL) - 3; (6 CYL) - 3)STUD
(Quantities (5 CYL) - 3; (6 CYL) - 3) -
812-8M0129782 LOCKWASHER
(Quantities (5 CYL) - 3; (6 CYL) - 3)LOCKWASHER
(Quantities (5 CYL) - 3; (6 CYL) - 3) -
911-879194234 NUT
(Quantities (5 CYL) - 3; (6 CYL) - 3)NUT
(Quantities (5 CYL) - 3; (6 CYL) - 3) -
1026-881789 SEAL
(Quantities (5 CYL) - 1; (6 CYL) - 1)SEAL
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
1125-801331706 O-RING
(Quantities (5 CYL) - 1; (6 CYL) - 1)O-RING
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
12850499A1 PULLEY
(Quantities (5 CYL) - 1; (6 CYL) - 1)PULLEY
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
13801331708 VIBRATION DAMPER
(Quantities (5 CYL) - 1; (6 CYL) - 1)VIBRATION DAMPER
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
1411-811421 NUT
(Quantities (5 CYL) - 1; (6 CYL) - 1)NUT
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
1510-809919682 SCREW
(Quantities (5 CYL) - 6; (6 CYL) - 6)SCREW
(Quantities (5 CYL) - 6; (6 CYL) - 6) -
1612-879194123 LOCKWASHER
(Quantities (5 CYL) - 6; (6 CYL) - 6)LOCKWASHER
(Quantities (5 CYL) - 6; (6 CYL) - 6) -
1710-809919621 SCREW
(Quantities (5 CYL) - 1; (6 CYL) - 1)SCREW
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
1827-801331623 GASKET
(Quantities (5 CYL) - 1; (6 CYL) - 1)GASKET
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
19801331622 COVER
(Quantities (5 CYL) - 1; (6 CYL) - 1)COVER
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
2010-898101555 SCREW
(Quantities (5 CYL) - 3; (6 CYL) - 3)SCREW
(Quantities (5 CYL) - 3; (6 CYL) - 3) -
2113-811460 LOCKWASHER
(Quantities (5 CYL) - 3; (6 CYL) - 3)LOCKWASHER
(Quantities (5 CYL) - 3; (6 CYL) - 3) -
2210-801331211 SCREW
(Quantities (5 CYL) - 1; (6 CYL) - 1)SCREW
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
2310-879194156 SCREW, (M6 x 25)
(Quantities (5 CYL) - 13; (6 CYL) - 13)SCREW, (M6 x 25)
(Quantities (5 CYL) - 13; (6 CYL) - 13) -
2410-809913689 SCREW
(Quantities (5 CYL) - 1; (6 CYL) - 1)SCREW
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
2512-4002217 WASHER
(Quantities (5 CYL) - 1; (6 CYL) - 1)WASHER
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
2625-801331619 O-RING
(Quantities (5 CYL) - 1; (6 CYL) - 1)O-RING
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
27801331618 COVER
(Quantities (5 CYL) - 1; (6 CYL) - 1)COVER
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
2816-801331210 STUD
(Quantities (5 CYL) - 4; (6 CYL) - 4)STUD
(Quantities (5 CYL) - 4; (6 CYL) - 4) -
29801761182 PULLEY, Stern Drive
(Quantities (5 CYL) - 1; (6 CYL) - 1)PULLEY, Stern Drive
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
30801763624 FLANGE, Stern Drive
(Quantities (5 CYL) - 1; (6 CYL) - 1)FLANGE, Stern Drive
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
3110-809919962 SCREW, Stern Drive
(Quantities (5 CYL) - 4; (6 CYL) - 4)SCREW, Stern Drive
(Quantities (5 CYL) - 4; (6 CYL) - 4) -
3210-809919669 SCREW, Stern Drive
(Quantities (5 CYL) - 3; (6 CYL) - 3)SCREW, Stern Drive
(Quantities (5 CYL) - 3; (6 CYL) - 3) -
3312-20533 WASHER, Stern Drive
(Quantities (5 CYL) - 4; (6 CYL) - 4)WASHER, Stern Drive
(Quantities (5 CYL) - 4; (6 CYL) - 4) -
3427-898300008 GASKET SET
(Quantities (5 CYL) - 1; (6 CYL) - 0)GASKET SET
(Quantities (5 CYL) - 1; (6 CYL) - 0) -
3527-822570A1 GASKET SET, Overhaul
(Quantities (5 CYL) - 0; (6 CYL) - 1)GASKET SET, Overhaul
(Quantities (5 CYL) - 0; (6 CYL) - 1)
