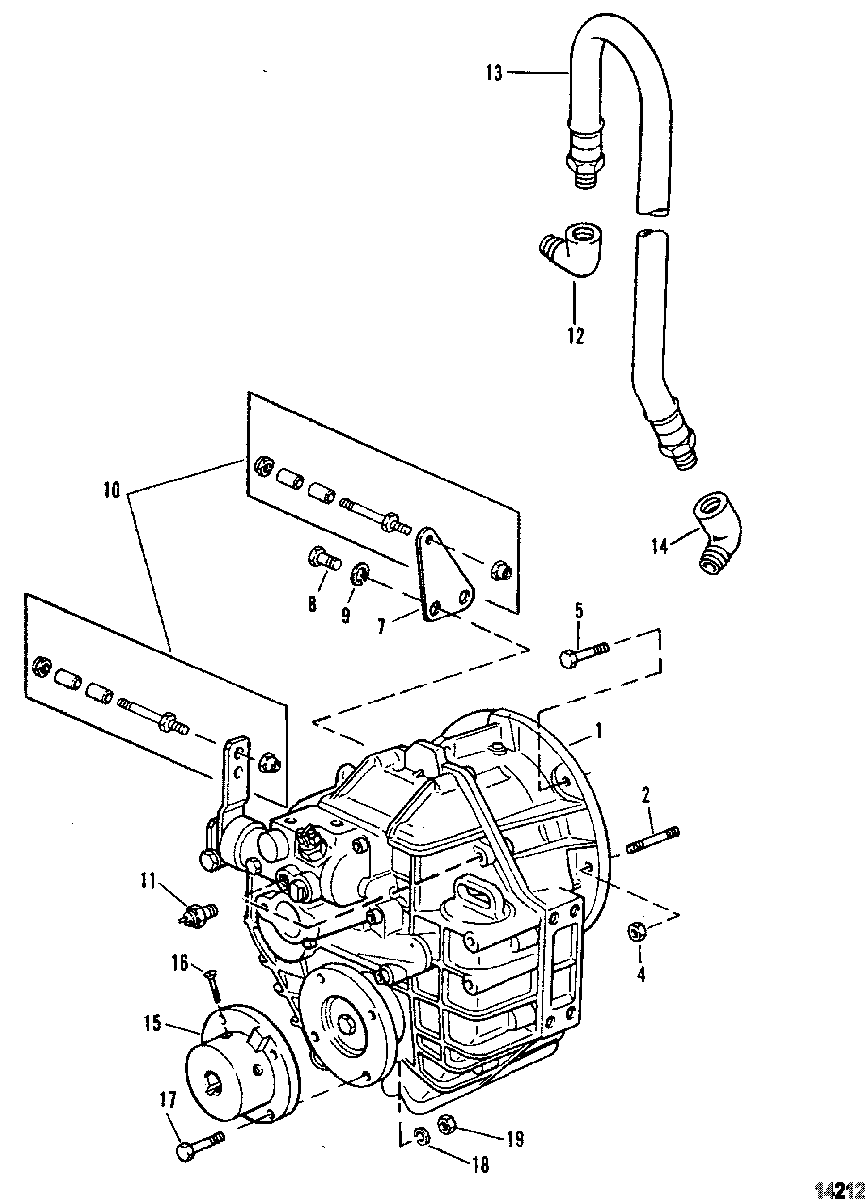

Transmission And Related Parts(Inboard) для Mercruiser - D3.0L (BRAVO) VM 183 I/L5 1994-1997 0D725152 THRU 0F999999
-
№АртикулНазвание
-
1863744T2 TRANSMISSION, (1.5:1 Ratio)
(Direct Drive)TRANSMISSION, (1.5:1 Ratio)
(Direct Drive) -
1863744T3 TRANSMISSION, (2.0:1 Ratio)
(Direct Drive)TRANSMISSION, (2.0:1 Ratio)
(Direct Drive) -
1863744T4 TRANSMISSION, (2.5:1 Ratio)
(Direct Drive)TRANSMISSION, (2.5:1 Ratio)
(Direct Drive) -
1863745T2 TRANSMISSION, (1.5:1 Ratio)
(V-Drive)TRANSMISSION, (1.5:1 Ratio)
(V-Drive) -
1863745T3 TRANSMISSION, (2.0:1 Ratio)
(V-Drive)TRANSMISSION, (2.0:1 Ratio)
(V-Drive) -
1863745T4 TRANSMISSION, (2.5:1 Ratio)
(V-Drive)TRANSMISSION, (2.5:1 Ratio)
(V-Drive) -
210-810002 STUDSTUD
-
411-809922113 NUTNUT
-
510-809913837 SCREWSCREW
-
7806238 BRACKETBRACKET
-
810-809919969 SCREWSCREW
-
913-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1016-97477A3 STUD KITSTUD KIT
-
1187-88031 SWITCH, TempatureSWITCH, Tempature
-
1222-35580 FITTING, Transmission Oil CoolerFITTING, Transmission Oil Cooler
-
1332-81269939 HOSE, (35.50 Inches Bulk)HOSE, (35.50 Inches Bulk)
-
1332-81269939 HOSE, (39.00 Inches Bulk)HOSE, (39.00 Inches Bulk)
-
1422-63835 ELBOW, 45 Degree, TransmissionELBOW, 45 Degree, Transmission
-
1579476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
1579476A2 FLANGE ASSEMBLY, (5.00 x 1.125)FLANGE ASSEMBLY, (5.00 x 1.125)
-
1579476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
1579476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
1579476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
1579476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
1579476A7 FLANGE ASSEMBLY, (5.00 x 2.00)FLANGE ASSEMBLY, (5.00 x 2.00)
-
1610-60171 SCREW, (.375-16 x 1.250), FlangeSCREW, (.375-16 x 1.250), Flange
-
1610-60169 SCREW, (.375-16 x .750), FlangeSCREW, (.375-16 x .750), Flange
-
1710-805159 SCREW, (.437-20 x 1.500), FlangeSCREW, (.437-20 x 1.500), Flange
-
1813-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1911-22024 NUT, (.437-14)NUT, (.437-14)
