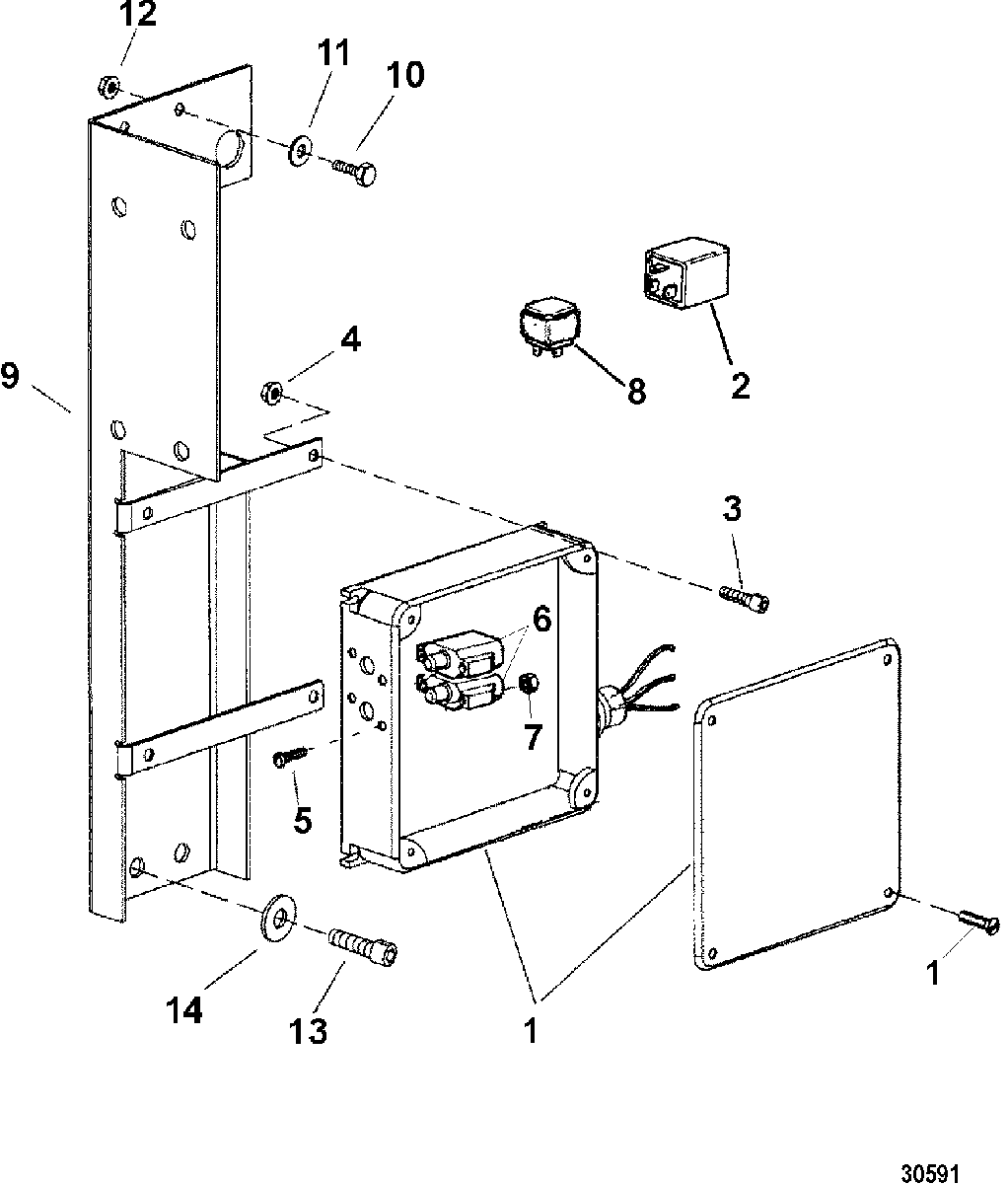

ELECTRICAL BOX AND COMPONENTS для Mercruiser - D4.2L/200 LD VM 254 I/L6 0L344381 THRU 0M999999
-
№АртикулНазвание
-
1NSS NOT SOLD SEPARATE, Electrical BoxNOT SOLD SEPARATE, Electrical Box
-
287-855391 POWER RELAYPOWER RELAY
-
287-855391 POWER RELAYPOWER RELAY
-
310-879194156 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
411-898101541 NUT, (M6)NUT, (M6)
-
510-8M0075597 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
688-93582 BREAKER, CircuitBREAKER, Circuit
-
711-855385 NUT, (M5)NUT, (M5)
-
887-855386 POWER RELAYPOWER RELAY
-
NS821509T01 RELAYRELAY
-
9880837 BRACKETBRACKET
-
1010-854113 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1112-4002217 WASHERWASHER
-
1211-898101541 NUT, (M6)NUT, (M6)
-
1310-898101534 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
1412-811459 WASHERWASHER
-
-84-860614 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
