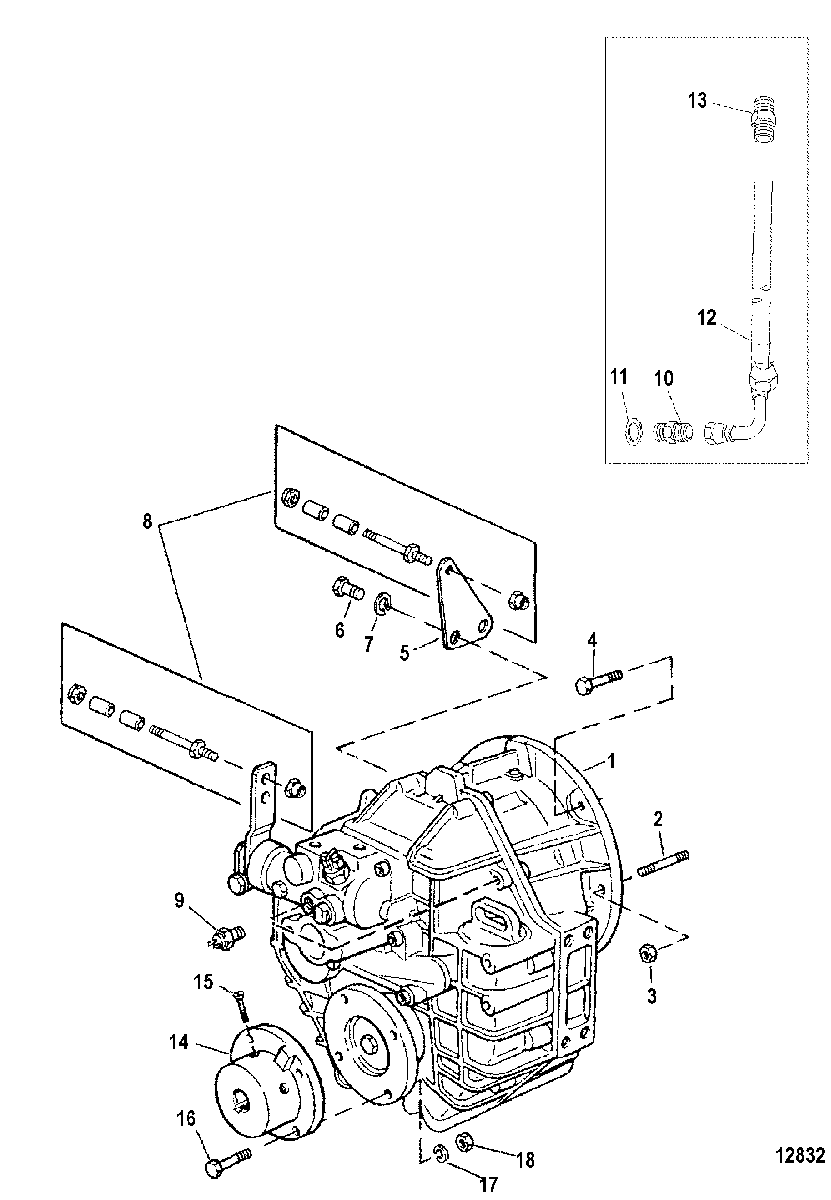

TRANSMISSION & RELATED PARTS(INBOARD) для Mercruiser - D4.2L/200 LD VM 254 I/L6 0L344381 THRU 0M999999
-
№АртикулНазвание
-
1863744T2 TRANSMISSION, (1.5:1 Ratio)
DOWN ANGLETRANSMISSION, (1.5:1 Ratio)
DOWN ANGLE -
1863744T3 TRANSMISSION, (2.0:1 Ratio)
DOWN ANGLETRANSMISSION, (2.0:1 Ratio)
DOWN ANGLE -
1863744T4 TRANSMISSION, (2.5:1 Ratio)
DOWN ANGLETRANSMISSION, (2.5:1 Ratio)
DOWN ANGLE -
1863745T2 TRANSMISSION, (1.5:1 Ratio)
V-DRIVETRANSMISSION, (1.5:1 Ratio)
V-DRIVE -
1863745T3 TRANSMISSION, (2.0:1 Ratio)
V-DRIVETRANSMISSION, (2.0:1 Ratio)
V-DRIVE -
1863745T4 TRANSMISSION, (2.5:1 Ratio)
V-DRIVETRANSMISSION, (2.5:1 Ratio)
V-DRIVE -
216-910002 STUDSTUD
-
311-809922113 NUT
(REFER TO NOTE 1)NUT
(REFER TO NOTE 1) -
410-809913837 SCREW
(REFER TO NOTE 1)SCREW
(REFER TO NOTE 1) -
5806238 BRACKETBRACKET
-
610-809919969 SCREWSCREW
-
713-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
816-97477A3 STUD KITSTUD KIT
-
987-88031 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1022-855517 ELBOW, TransmissionELBOW, Transmission
-
1112-855516 WASHERWASHER
-
1232-855518 HOSE, Oil (85 cm)HOSE, Oil (85 cm)
-
1232-855519 HOSE, Oil (93 cm)HOSE, Oil (93 cm)
-
1322-803174 ELBOW, Transimssion Oil CoolerELBOW, Transimssion Oil Cooler
-
1479476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
1479476A2 FLANGE ASSEMBLY, (5.00 x 1.125)FLANGE ASSEMBLY, (5.00 x 1.125)
-
1479476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
1479476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
1479476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
1479476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
1479476A7 FLANGE ASSEMBLY, (5.00 x 2.00)FLANGE ASSEMBLY, (5.00 x 2.00)
-
1510-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1510-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1610-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
1713-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1811-22024 NUT, (.437-14)NUT, (.437-14)
