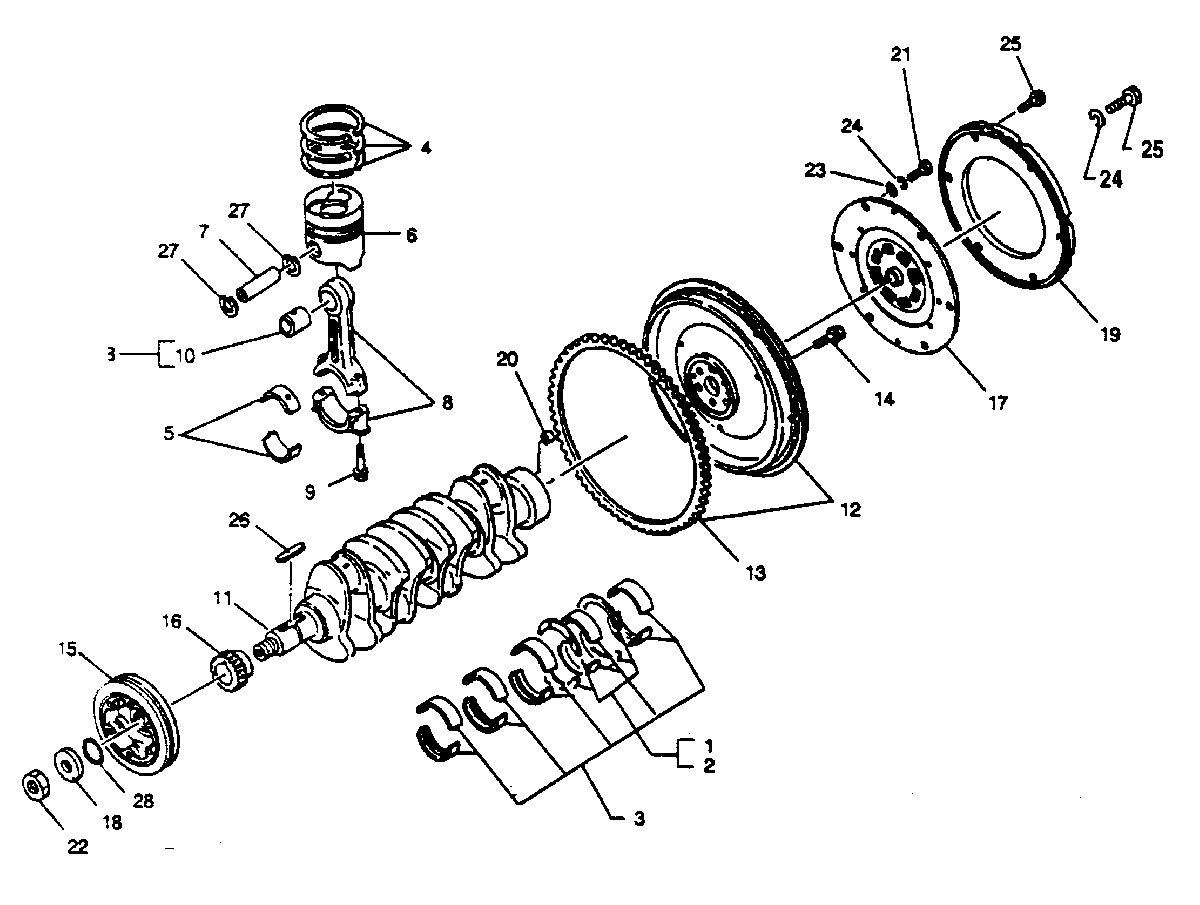

CRANKSHAFT AND PISTON ASSEMBLY для Mercruiser - WO4CTA (150 HP) HINO 234 I/L4 ALL
-
№АртикулНазвание
-
112-830111240 WASHER SET-Thrust-STDWASHER SET-Thrust-STD
-
212-830121250 WASHER SET-Thrust-.25mm O/SWASHER SET-Thrust-.25mm O/S
-
3837011730 BEARING SET-Crankshaft-STDBEARING SET-Crankshaft-STD
-
3837031620 BEARING SET-Crankshaft-.25MM U/SBEARING SET-Crankshaft-.25MM U/S
-
3837041650 BEARING SET-Crankshaft-.50MM U/SBEARING SET-Crankshaft-.50MM U/S
-
3837051620 BEARING SET-Crankshaft-.75MM U/SBEARING SET-Crankshaft-.75MM U/S
-
3837061650 BEARING SET-Crankshaft-1.0MM U/SBEARING SET-Crankshaft-1.0MM U/S
-
4830112550 RING SET-STD. (For One Engine)RING SET-STD. (For One Engine)
-
5832011540 BEARING SET-STD. (For One Engine)BEARING SET-STD. (For One Engine)
-
5832031550 BEARING SET-.25MM U/SBEARING SET-.25MM U/S
-
5832041520 BEARING SET-.50MM U/SBEARING SET-.50MM U/S
-
5832051510 BEARING SET-.75MM U/SBEARING SET-.75MM U/S
-
5832061500 BEARING SET-1.0MM U/SBEARING SET-1.0MM U/S
-
6832161631 PISTON (STD)PISTON (STD)
-
741-832511360 PIN-PistonPIN-Piston
-
8832601460 ROD ASSEMBLY-ConnectingROD ASSEMBLY-Connecting
-
9832651371 BOLT-Rod CapBOLT-Rod Cap
-
10832721290 BUSHING-RodBUSHING-Rod
-
11834111683 CRANKSHAFTCRANKSHAFT
-
12834501563 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
13834531270 GEAR-RingGEAR-Ring
-
1410-834551100 BOLT-FlywheelBOLT-Flywheel
-
14834702050 PULLEY-CrankshaftPULLEY-Crankshaft
-
16835211110 GEAR-CrankshaftGEAR-Crankshaft
-
17807067T PLATE ASSEMBLY-DrivePLATE ASSEMBLY-Drive
-
1823-830116148 SPACERSPACER
-
19830116343 SPACER-FlywheelSPACER-Flywheel
-
2023-830129119 COLLARCOLLAR
-
2110-832910241 BOLT-PlateBOLT-Plate
-
2211-830927102 NUT-CrankshaftNUT-Crankshaft
-
2312-836010180 WASHER-FlatWASHER-Flat
-
24838010250 WASHER-LockWASHER-Lock
-
25830210300 BOLT-SpacerBOLT-Spacer
-
2628-833910111 KEY-Drive GearKEY-Drive Gear
-
2753-831937102 RING-RetainingRING-Retaining
-
2825-835141101 O-RING-CrankshaftO-RING-Crankshaft
