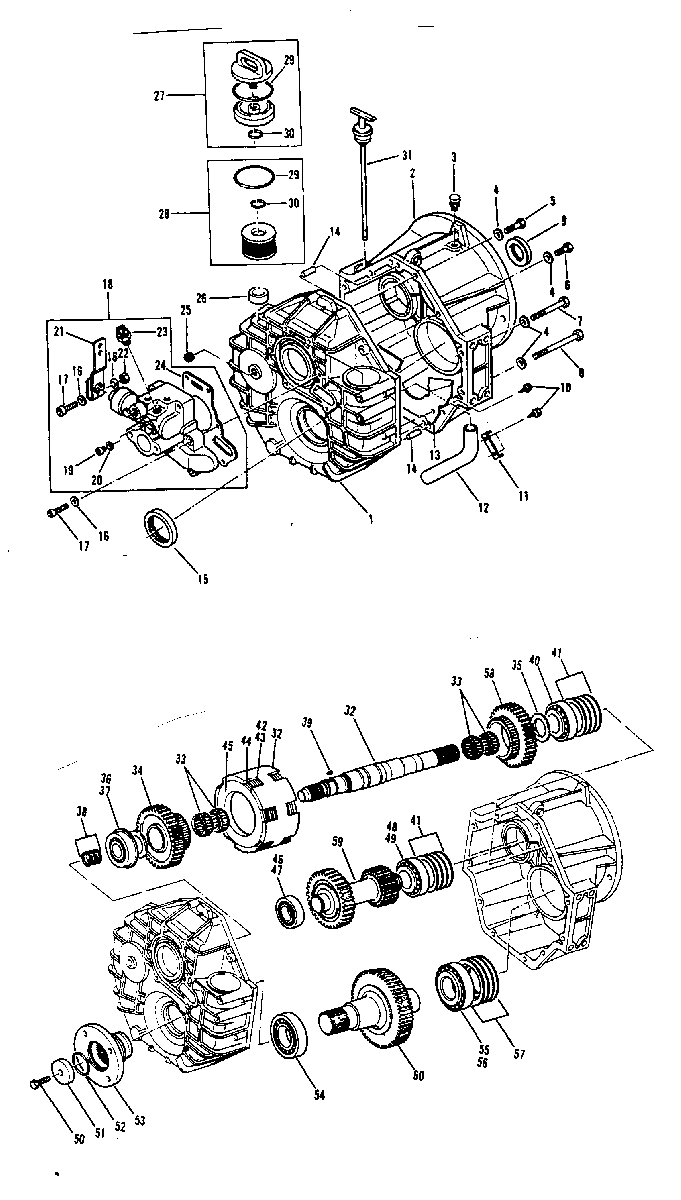

TRANSMISSION AND RELATED PARTS (TRANSMISSION ASSEMBLY) для Mercruiser - WO4CTA (150 HP) HINO 234 I/L4 ALL
-
№АртикулНазвание
-
-863744T2 TRANSMISSION ASSEMBLY (1.5:1 RATIO)TRANSMISSION ASSEMBLY (1.5:1 RATIO)
-
-863744T3 TRANSMISSION ASSEMBLY (2.0:0 RATIO)TRANSMISSION ASSEMBLY (2.0:0 RATIO)
-
-863744T4 TRANSMISSION ASSEMBLY (2.5:1 RATIO)TRANSMISSION ASSEMBLY (2.5:1 RATIO)
-
1813278 HOUSINGHOUSING
-
2813279 COVERCOVER
-
3813280 CAP-VentCAP-Vent
-
413-813281 LOCKWASHERLOCKWASHER
-
510-813282 SCREWSCREW
-
610-813283 SCREWSCREW
-
710-813284 SCREWSCREW
-
810-813285 SCREWSCREW
-
926-813286 SEAL-OilSEAL-Oil
-
1010-813287 SCREWSCREW
-
11813288 PLATE-RetainingPLATE-Retaining
-
1232-813289 HOSEHOSE
-
13813290 PLATE-BafflePLATE-Baffle
-
1417-813291 PIN-DowelPIN-Dowel
-
1526-813292 SEAL-OilSEAL-Oil
-
1613-813293 LOCKWASHERLOCKWASHER
-
1710-813294 SCREWSCREW
-
18813295 BLOCK ASSEMBLY-ControlBLOCK ASSEMBLY-Control
-
1910-813296 SCREWSCREW
-
2012-813297 WASHERWASHER
-
21813298 LEVER-ShiftLEVER-Shift
-
2211-813299 NUTNUT
-
2387-813300 SWITCH-Neutral SafetySWITCH-Neutral Safety
-
2427-813301 GASKETGASKET
-
2522-813302 PLUGPLUG
-
2612-813303 WASHERWASHER
-
2736-811940 CAP KitCAP Kit
-
2835-879194241 FILTER KIT-FluidFILTER KIT-Fluid
-
2925-813407 O-RINGO-RING
-
3025-813406 O-RINGO-RING
-
31813305 DIPSTICKDIPSTICK
-
-863744T2 TRANSMISSION ASSEMBLY (1.5:1 RATIO)TRANSMISSION ASSEMBLY (1.5:1 RATIO)
-
-863744T3 TRANSMISSION ASSEMBLY (2.0:0 RATIO)TRANSMISSION ASSEMBLY (2.0:0 RATIO)
-
-863744T4 TRANSMISSION ASSEMBLY (2.5:1 RATIO)TRANSMISSION ASSEMBLY (2.5:1 RATIO)
-
32813306 INPUT SHAFTINPUT SHAFT
-
3331-813307 BEARING-RollerBEARING-Roller
-
3443-813308 GEARGEAR
-
3512-813309 WASHERWASHER
-
3631-852066 BEARING-Tapered Roller (INNER)BEARING-Tapered Roller (INNER)
-
3731-852066 BEARING-Tapered Roller (OUTER)BEARING-Tapered Roller (OUTER)
-
3853-813312 SNAP RINGSNAP RING
-
3928-813313 KEYKEY
-
4030-813314 BEARING-BallBEARING-Ball
-
4115-813315 SHIM (.10MM)SHIM (.10MM)
-
4115-813316 SHIM (.15MM)SHIM (.15MM)
-
4115-813317 SHIM (.20MM)SHIM (.20MM)
-
4115-813318 SHIM (.50MM)SHIM (.50MM)
-
42813319 DISC-Inner ClutchDISC-Inner Clutch
-
43813320 DISC-Outer ClutchDISC-Outer Clutch
-
4453-813321 SNAP RINGSNAP RING
-
45813322 PRESSURE DISCPRESSURE DISC
-
4631-813323 BEARING-Tapered Roller (INNER)BEARING-Tapered Roller (INNER)
-
4731-813324 BEARING-Tapered Roller (OUTER)BEARING-Tapered Roller (OUTER)
-
4831-813325 BEARING-Tapered Roller (INNER)BEARING-Tapered Roller (INNER)
-
4931-813326 BEARING-Tapered Roller (OUTER)BEARING-Tapered Roller (OUTER)
-
5010-813327 SCREWSCREW
-
5123-813328 SPACERSPACER
-
5225-813329 O-RINGO-RING
-
53813330 FLANGE-OutputFLANGE-Output
-
5431-813331 BEARING-Tapered RollerBEARING-Tapered Roller
-
5531-813332 BEARING-Tapered Roller (INNER)BEARING-Tapered Roller (INNER)
-
5631-813333 BEARING-Tapered Roller (OUTER)BEARING-Tapered Roller (OUTER)
-
5715-813334 SHIM (.10MM)SHIM (.10MM)
-
5715-813335 SHIM (.15MM)SHIM (.15MM)
-
5715-813336 SHIM (.30MM)SHIM (.30MM)
-
5715-813337 SHIM (.50MM)SHIM (.50MM)
-
5843-813338 GEAR
1.5:1 RATIOGEAR
1.5:1 RATIO -
59813339 SHAFT-Intermediate
1.5:1 RATIOSHAFT-Intermediate
1.5:1 RATIO -
60813340 OUTPUT SHAFT
1.5:1 RATIOOUTPUT SHAFT
1.5:1 RATIO -
5843-813341 GEAR
2.0:1 RATIOGEAR
2.0:1 RATIO -
59813342 SHAFT-Intermediate
2.0:1 RATIOSHAFT-Intermediate
2.0:1 RATIO -
60813343 OUTPUT SHAFT
2.0:1 RATIOOUTPUT SHAFT
2.0:1 RATIO -
5843-813344 GEAR
2.5:1 RATIOGEAR
2.5:1 RATIO -
59813345 SHAFT-Intermediate
2.5:1 RATIOSHAFT-Intermediate
2.5:1 RATIO -
60813346 OUTPUT SHAFT
2.5:1 RATIOOUTPUT SHAFT
2.5:1 RATIO
