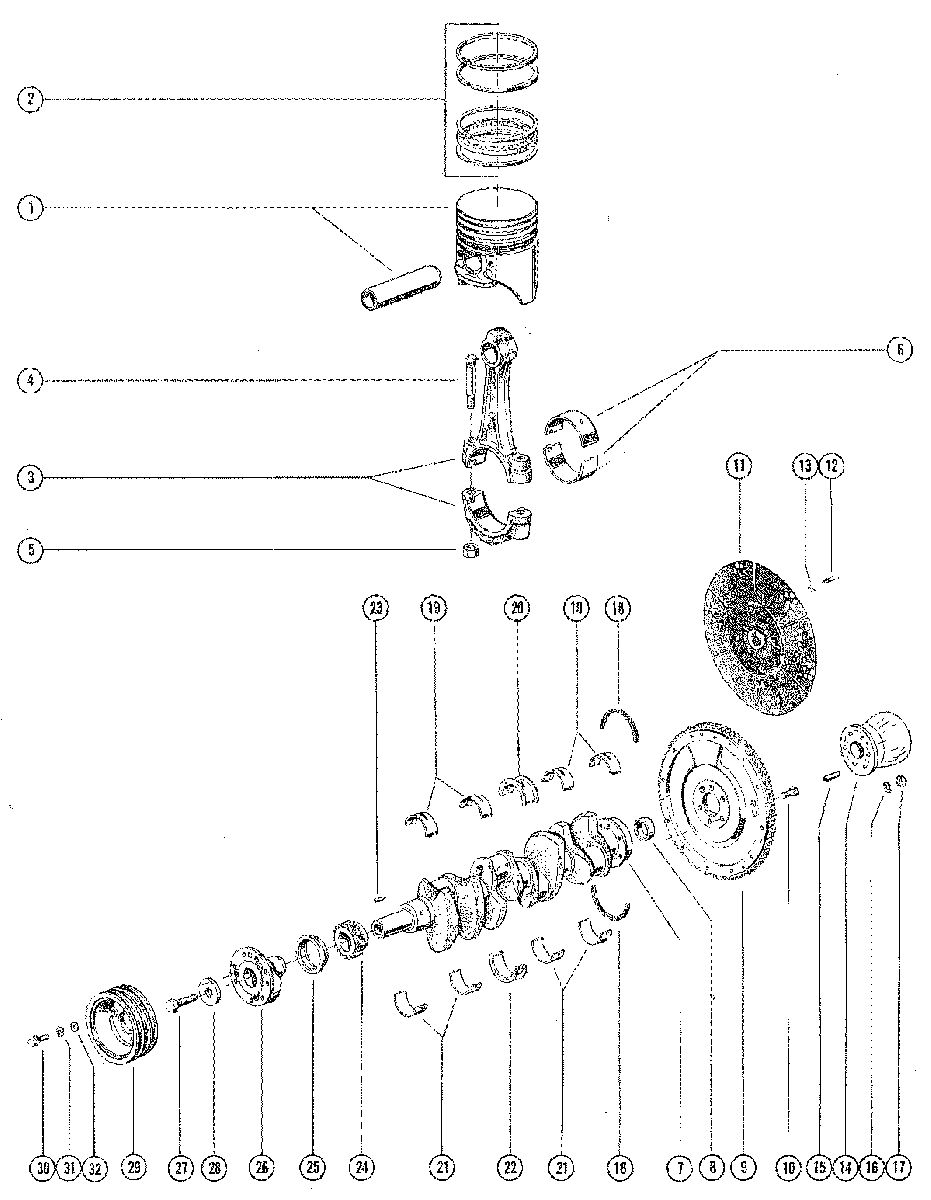

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercruiser - 225 MIE FORD 302 V-8 1973-1974 3385721 THRU 4176999
-
№АртикулНазвание
-
1749-4058 PISTON AND PISTON PIN ASSEMBLY (STANDARD)PISTON AND PISTON PIN ASSEMBLY (STANDARD)
-
1749-4059 PISTON AND PISTON PIN ASSEMBLY (.003 O.S.) USE STANDARD RINGPISTON AND PISTON PIN ASSEMBLY (.003 O.S.) USE STANDARD RING
-
1749-4060 PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
-
239-56114 RING ASSEMBLY, PISTON (STANDARD)RING ASSEMBLY, PISTON (STANDARD)
-
239-56115 RING ASSEMBLY, PISTON (.020 O.S.)RING ASSEMBLY, PISTON (.020 O.S.)
-
3623-4679 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
410-56123 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
511-56122 NUT, CONNECTING ROD BOLTNUT, CONNECTING ROD BOLT
-
623-56116 BEARING UNIT, CONNECTING ROD (STANDARD)BEARING UNIT, CONNECTING ROD (STANDARD)
-
623-85730 BEARING UNIT, CONNECTING ROD (.001 U.S.)BEARING UNIT, CONNECTING ROD (.001 U.S.)
-
623-85731 BEARING UNIT, CONNECTING ROD (.002 U.S.)BEARING UNIT, CONNECTING ROD (.002 U.S.)
-
623-85732 BEARING UNIT, CONNECTING ROD (.010 U.S.)BEARING UNIT, CONNECTING ROD (.010 U.S.)
-
623-85733 BEARING UNIT, CONNECTING ROD (.020 U.S.)BEARING UNIT, CONNECTING ROD (.020 U.S.)
-
7446-4064 CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
-
7446-5797 CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
-
823-71647 BEARING, CLUTCH PILOTBEARING, CLUTCH PILOT
-
9238-4428 FLYWHEEL ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)FLYWHEEL ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
-
9238-4055 FLYWHEEL ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION)FLYWHEEL ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION)
-
1010-60706 BOLT, FLYWHEEL TO CRANKSHAFT (15/16")BOLT, FLYWHEEL TO CRANKSHAFT (15/16")
-
1198147A1 DRIVE PLATE, FLYWHEEL (MC II-TR)DRIVE PLATE, FLYWHEEL (MC II-TR)
-
1147608A1 DRIVE PLATE, FLYWHEEL (INBOARD)DRIVE PLATE, FLYWHEEL (INBOARD)
-
1210-56889 SCREW, DRIVE PLATE TO FLYWHEEL MC II-TR AND INBOARDSCREW, DRIVE PLATE TO FLYWHEEL MC II-TR AND INBOARD
-
1313-26993 LOCKWASHER, DRIVE PLATE SCREW MC II-TR AND INBOARDLOCKWASHER, DRIVE PLATE SCREW MC II-TR AND INBOARD
-
1459826A3 ENGINE COUPLING ASSEMBLY MC 225-SENGINE COUPLING ASSEMBLY MC 225-S
-
1516-60993 STUD, ENGINE COUPLING ATTACHING MC 225-SSTUD, ENGINE COUPLING ATTACHING MC 225-S
-
1612-32648 WASHER, ENGINE COUPLING ATTACHING STUD MC 225-SWASHER, ENGINE COUPLING ATTACHING STUD MC 225-S
-
1711-56407 NUT, ENGINE COUPLING ATTACHING STUD MC 225-SNUT, ENGINE COUPLING ATTACHING STUD MC 225-S
-
1826-56868 OIL SEAL, CRANKSHAFT REAR (LEFT HAND CRANKSHAFT ROTATION)OIL SEAL, CRANKSHAFT REAR (LEFT HAND CRANKSHAFT ROTATION)
-
1826-56869 OIL SEAL, CRANKSHAFT REAR (RIGHT HAND CRANKSHAFT ROTATION)OIL SEAL, CRANKSHAFT REAR (RIGHT HAND CRANKSHAFT ROTATION)
-
1923-85734 BEARING, CRANKSHAFT MAIN - UPPER (STANDAR)BEARING, CRANKSHAFT MAIN - UPPER (STANDAR)
-
1923-85736 BEARING, CRANKSHAFT MAIN - UPPER (.001 U.S.)BEARING, CRANKSHAFT MAIN - UPPER (.001 U.S.)
-
1923-56894 BEARING, CRANKSHAFT MAIN - UPPER (.002 U.S.)BEARING, CRANKSHAFT MAIN - UPPER (.002 U.S.)
-
1923-85741 BEARING, CRANKSHAFT MAIN - UPPER (.010 U.S.)BEARING, CRANKSHAFT MAIN - UPPER (.010 U.S.)
-
1923-56898 BEARING, CRANKSHAFT MAIN - UPPER (.020 U.S.)BEARING, CRANKSHAFT MAIN - UPPER (.020 U.S.)
-
2023-56891 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (STANDARD)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (STANDARD)
-
2023-85738 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)
-
2023-56895 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)
-
2023-85743 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.010 U.S.)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.010 U.S.)
-
2023-56899 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.020 U.S.)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.020 U.S.)
-
2123-56900 BEARING, CRANKSHAFT - LOWER (STANDARD)BEARING, CRANKSHAFT - LOWER (STANDARD)
-
2123-56902 BEARING, CRANKSHAFT MAIN - LOWER (.001 U.S.)BEARING, CRANKSHAFT MAIN - LOWER (.001 U.S.)
-
2123-85739 BEARING, CRANKSHAFT MAIN - LOWER (.002 U.S.)BEARING, CRANKSHAFT MAIN - LOWER (.002 U.S.)
-
2123-56906 BEARING, CRANKSHAFT MAIN - LOWER (.O10 U.S.)BEARING, CRANKSHAFT MAIN - LOWER (.O10 U.S.)
-
2123-85735 BEARING, CRANKSHAFT MAIN - LOWER (.020 U.S.)BEARING, CRANKSHAFT MAIN - LOWER (.020 U.S.)
-
2223-85735 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (STANDARD)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (STANDARD)
-
2223-56903 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.001 U.S.)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.001 U.S.)
-
2223-85740 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.002 U.S.)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.002 U.S.)
-
2223-56907 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.010 U.S.)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.010 U.S.)
-
2223-85742 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.020 U.S.)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.020 U.S.)
-
2328-56142 KEY, TIMING SPROCKET AND DAMPER TO CRANKSHAFTKEY, TIMING SPROCKET AND DAMPER TO CRANKSHAFT
-
2443-56141 SPROCKET, CRANKSHAFT TIMING (21 TEETH)SPROCKET, CRANKSHAFT TIMING (21 TEETH)
-
2556143 SLINGER, OIL - CRANKSHAFTSLINGER, OIL - CRANKSHAFT
-
2656145 DAMPER ASSEMBLY, CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)DAMPER ASSEMBLY, CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
-
2661750 DAMPER ASSEMBLY, CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)DAMPER ASSEMBLY, CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
-
2710-60709 BOLT, DAMPER TO CRANKSHAFT (1 3/4")BOLT, DAMPER TO CRANKSHAFT (1 3/4")
-
2812-56148 WASHER, DAMPER TO CRANKSHAFT BOLTWASHER, DAMPER TO CRANKSHAFT BOLT
-
2956144 PULLEY, CRANKSHAFT
MCII-TR WITHOUT POWER STEERING, INBOARD AND MC 225-SPULLEY, CRANKSHAFT
MCII-TR WITHOUT POWER STEERING, INBOARD AND MC 225-S -
3010-21077 SCREW, PULLEY TO DAMPER (7/8")
MCII-TR WITHOUT POWER STEERING, INBOARD AND MC 225-SSCREW, PULLEY TO DAMPER (7/8")
MCII-TR WITHOUT POWER STEERING, INBOARD AND MC 225-S -
3113-35048 LOCKWASHER, PULLEY SCREWLOCKWASHER, PULLEY SCREW
-
3212-20553 WASHER, PULLEY SCREWWASHER, PULLEY SCREW
