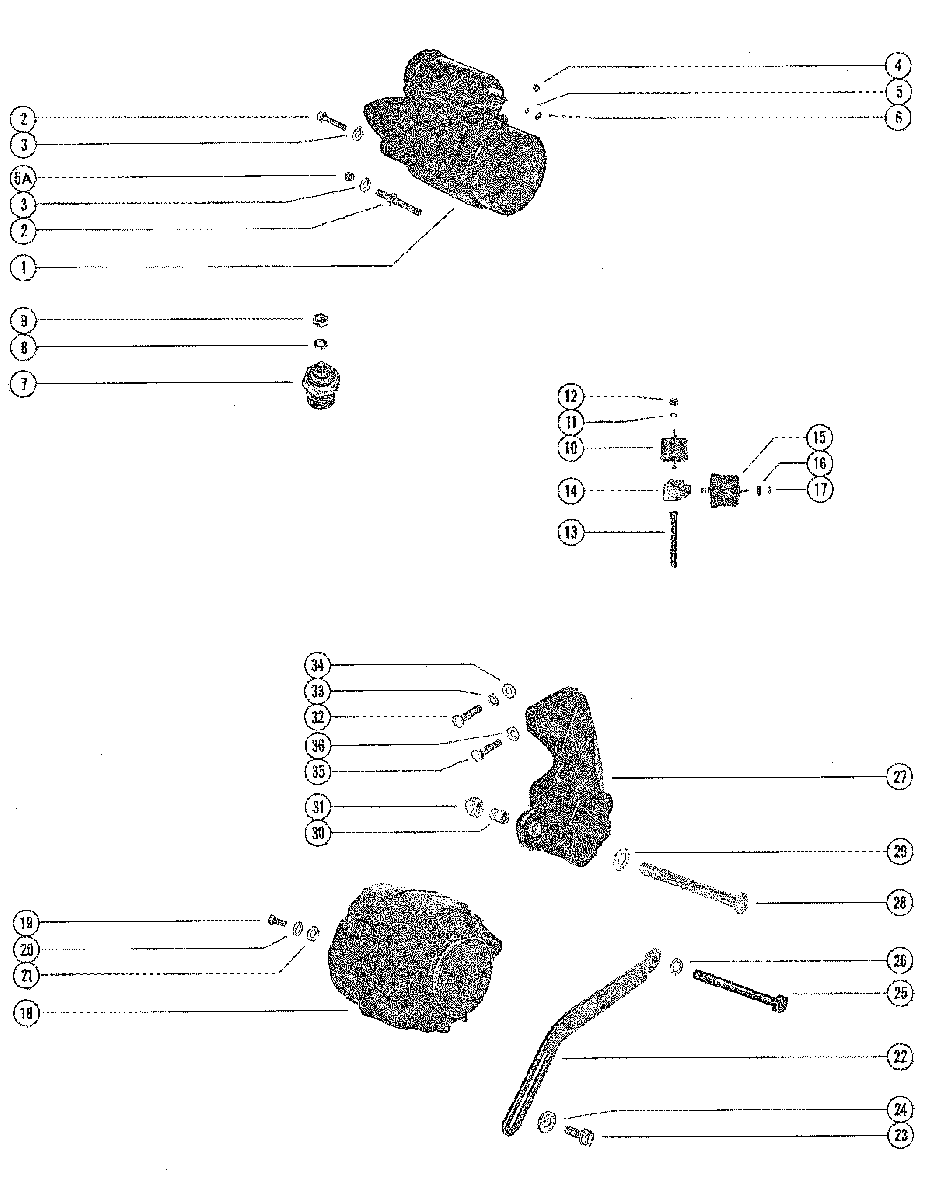

STARTER MOTOR AND ALTERNATOR для Mercruiser - 225 MIE FORD 302 V-8 1973-1974 3385721 THRU 4176999
-
№АртикулНазвание
-
150-808011A05 STARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
SEE NOTE INBOARDSTARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
SEE NOTE INBOARD -
150-97499R3 STARTER MOTOR ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION)
SEE NOTE INBOARDSTARTER MOTOR ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION)
SEE NOTE INBOARD -
210-47462 SCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/4")
INBOARDSCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/4")
INBOARD -
313-32993 LOCKWASHER, STARTER MOTOR SCREW
INBOARDLOCKWASHER, STARTER MOTOR SCREW
INBOARD -
411-32219 NUT, STARTER TERMINAL (3/8")
INBOARDNUT, STARTER TERMINAL (3/8")
INBOARD -
513-26995 LOCKWASHER, STARTER TERMINAL (#8)
INBOARDLOCKWASHER, STARTER TERMINAL (#8)
INBOARD -
611-26419 NUT, STARTER TERMINAL (#8)
INBOARDNUT, STARTER TERMINAL (#8)
INBOARD -
150-12872 STARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
SEE NOTE STERN DRIVESTARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
SEE NOTE STERN DRIVE -
210-37612 SCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/4") - LOWER
STERN DRIVESCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/4") - LOWER
STERN DRIVE -
216-861316 STUD, STARTER MOTOR TO FLYWHEEL HOUSING - UPPER
STERN DRIVESTUD, STARTER MOTOR TO FLYWHEEL HOUSING - UPPER
STERN DRIVE -
313-35048 LOCKWASHER, STARTER MOTOR SCREW AND STUD
STERN DRIVELOCKWASHER, STARTER MOTOR SCREW AND STUD
STERN DRIVE -
513-26993 LOCKWASHER, STARTER MOTOR TERMINAL
STERN DRIVELOCKWASHER, STARTER MOTOR TERMINAL
STERN DRIVE -
5A11-32219 NUT, STARTER MOTOR STUD
STERN DRIVENUT, STARTER MOTOR STUD
STERN DRIVE -
611-21908 NUT, STARTER MOTOR TERMINAL
STERN DRIVENUT, STARTER MOTOR TERMINAL
STERN DRIVE -
7806490T WATER TERMPERATURE SENDER ASSEMBLYWATER TERMPERATURE SENDER ASSEMBLY
-
813-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
-
911-68219 NUT, WATER TERMPERATURE SENDER TERMINAL (#10)NUT, WATER TERMPERATURE SENDER TERMINAL (#10)
-
108M0068784 OIL PRESSURE SENDER ASSEMBLY (FOR GAUGE)OIL PRESSURE SENDER ASSEMBLY (FOR GAUGE)
-
1113-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
-
1211-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)NUT, OIL PRESSURE SENDER TERMINAL (#10)
-
1322-54522 NIPPLE, OIL PRESSURE SENDERNIPPLE, OIL PRESSURE SENDER
-
1422-56770 COUPLING, OIL PRESSURE SENDER
SERIAL 00000000-03386120COUPLING, OIL PRESSURE SENDER
SERIAL 00000000-03386120 -
1422-64485 FITTING, TEE - OIL PRESSURE SENDER
SERIAL 03415951-09999999FITTING, TEE - OIL PRESSURE SENDER
SERIAL 03415951-09999999 -
1587-805605A1 SWITCH, OIL PRESSURE (FOR IGNITION LIGHT)
SERIAL 03415951-09999999SWITCH, OIL PRESSURE (FOR IGNITION LIGHT)
SERIAL 03415951-09999999 -
1612-20878 WASHER, OIL PRESSURE SWITCH TERMINAL (#10)
SERIAL 03415951-09999999WASHER, OIL PRESSURE SWITCH TERMINAL (#10)
SERIAL 03415951-09999999 -
1711-68219 NUT, OIL PRESSURE SWITCH TERMINAL (#10)
SERIAL 03415951-09999999NUT, OIL PRESSURE SWITCH TERMINAL (#10)
SERIAL 03415951-09999999 -
1878403A2 ALTERNATOR ASSEMBLYALTERNATOR ASSEMBLY
-
1910-20055 SCREW, WIRING HARNESS TO ALTERNATOR (3/8")SCREW, WIRING HARNESS TO ALTERNATOR (3/8")
-
2013-26996 LOCKWASHER, WIRING HARNESS SCREWLOCKWASHER, WIRING HARNESS SCREW
-
2112-30164 WASHER, WIRING HARNESS SCREWWASHER, WIRING HARNESS SCREW
-
2254479 BRACE, ALTERNATOR ADJUSTINGBRACE, ALTERNATOR ADJUSTING
-
2310-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
-
2412-26168 WASHER, ALTERNATOR BRACE SCREWWASHER, ALTERNATOR BRACE SCREW
-
2510-55300 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (5 1/4")SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (5 1/4")
-
2613-39107 LOCKWASHER, ALTERNATOR BRACE SCREWLOCKWASHER, ALTERNATOR BRACE SCREW
-
2761859 BRACKET, ALTERNATOR MOUNTING (MC11-TR)BRACKET, ALTERNATOR MOUNTING (MC11-TR)
-
2761859 BRACKET, ALTERNATOR MOUNTING (INBOARD AND MC225-S)BRACKET, ALTERNATOR MOUNTING (INBOARD AND MC225-S)
-
2810-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
-
2912-20553 WASHER, ALTERNATOR BRACKET SCREWWASHER, ALTERNATOR BRACKET SCREW
-
3023-63764 BUSHING, ALTERNATOR BRACKET SCREWBUSHING, ALTERNATOR BRACKET SCREW
-
3111-23161 NUT, ALTERNATOR BRACKET SCREWNUT, ALTERNATOR BRACKET SCREW
-
3210-37612 SCREW, ALTERNATOR BRACKET TO TIMING COVER (1 1/4")SCREW, ALTERNATOR BRACKET TO TIMING COVER (1 1/4")
-
3313-35048 LOCKWASHER, ALTERNATOR BRACKET SCREWLOCKWASHER, ALTERNATOR BRACKET SCREW
-
3412-38344 WASHER, ALTERNATOR BRACKET SCREW- INBOARDWASHER, ALTERNATOR BRACKET SCREW- INBOARD
-
3510-47462 SCREW, ALTERNATOR BRACKET TO ENGINE - INBOARDSCREW, ALTERNATOR BRACKET TO ENGINE - INBOARD
-
3613-32993 LOCKWASHER, ALTERNATOR BRACKET SCREW - INBOARDLOCKWASHER, ALTERNATOR BRACKET SCREW - INBOARD
