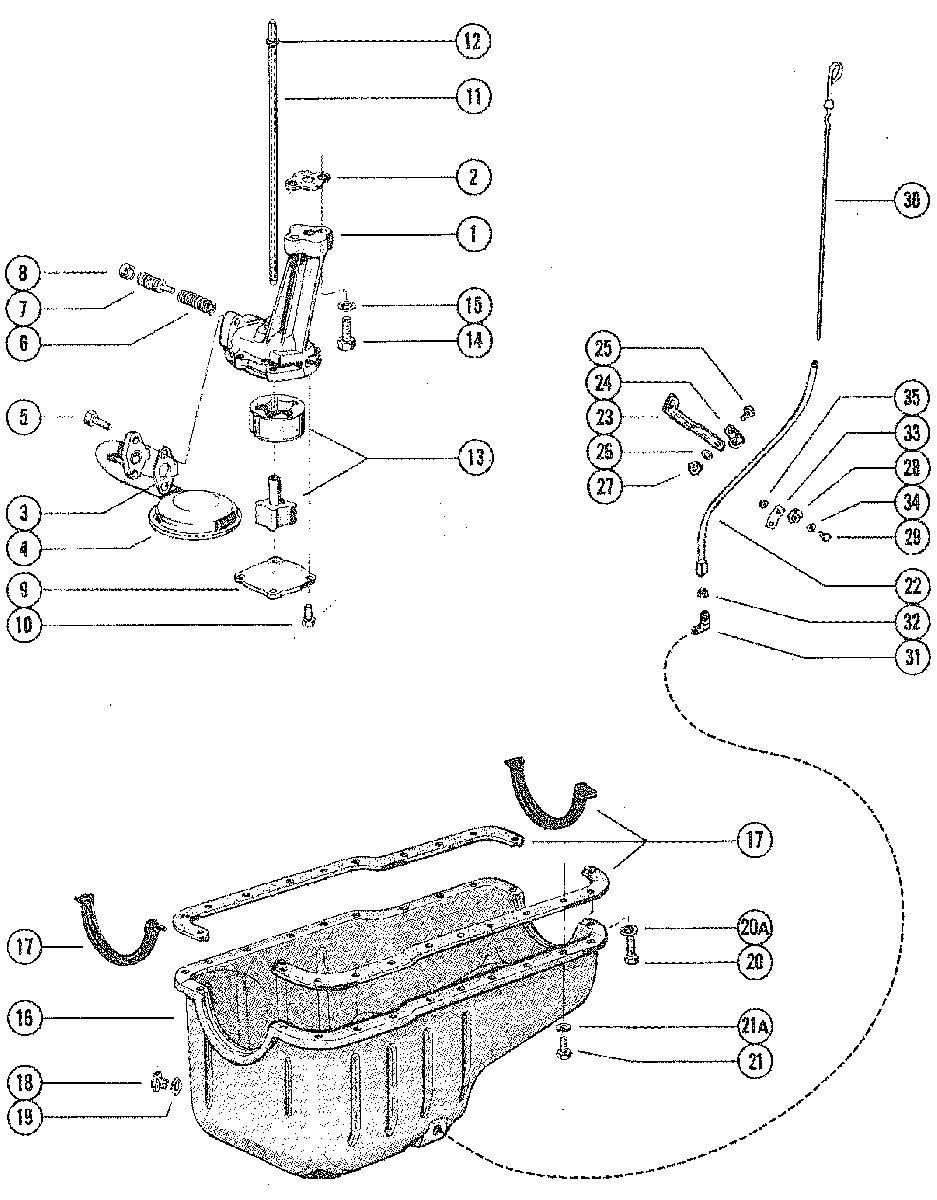

OIL PUMP AND OIL PAN для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999
-
№АртикулНазвание
-
156174 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
227-56861 GASKET, OIL PUMPGASKET, OIL PUMP
-
327-56859 GASKET, OIL PUMP SCREENGASKET, OIL PUMP SCREEN
-
456856 SCREEN, OIL PUMPSCREEN, OIL PUMP
-
510-56858 SCREW, SCREEN TO OIL PUMP (7/8")SCREW, SCREEN TO OIL PUMP (7/8")
-
624-56864 SPRING, OIL PUMP RELIEF VALVESPRING, OIL PUMP RELIEF VALVE
-
756865 PLUNGER, OIL PUMP RELIEF VALVEPLUNGER, OIL PUMP RELIEF VALVE
-
819-56854 PLUG, OIL PUMP RELIEF VALVEPLUG, OIL PUMP RELIEF VALVE
-
956179 PLATE, OIL PUMPPLATE, OIL PUMP
-
1010-56133 SCREW AND WASHER, PLATE TO OIL PUMP (5/8")SCREW AND WASHER, PLATE TO OIL PUMP (5/8")
-
1156855 SHAFT ASSEMBLY, OIL PUMPSHAFT ASSEMBLY, OIL PUMP
-
1253-56860 RING, RETAINING - OIL PUMP SHAFTRING, RETAINING - OIL PUMP SHAFT
-
1356178 ROTOR AND SHAFT, OIL PUMPROTOR AND SHAFT, OIL PUMP
-
1410-56176 SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")
-
1513-56177 LOCKWASHER, OIL PUMP SCREWLOCKWASHER, OIL PUMP SCREW
-
1660711 OIL PAN STERN DRIVEOIL PAN STERN DRIVE
-
1727-64798 GASKET SET, OIL PAN STERN DRIVEGASKET SET, OIL PAN STERN DRIVE
-
1822-60720 PLUG, PIPE - OIL PAN DRAIN STERN DRIVEPLUG, PIPE - OIL PAN DRAIN STERN DRIVE
-
1927-8M0077608 GASKET, DRAIN PLUG STERN DRIVEGASKET, DRAIN PLUG STERN DRIVE
-
2010-60710 SCREW, OIL PAN TO CYLINDER BLOCK (5/16-18 X 7/8")STERN DRIVESCREW, OIL PAN TO CYLINDER BLOCK (5/16-18 X 7/8")STERN DRIVE
-
2110-60708 SCREW, OIL PAN TO CYLINDER BLOCK (1/4-20 X 7/8") STERN DRIVESCREW, OIL PAN TO CYLINDER BLOCK (1/4-20 X 7/8") STERN DRIVE
-
2260416T TUBE, OIL GUAGE(MC II-TR)-MC 225-S STERN DRIVE
SERIAL 00000000-03386120TUBE, OIL GUAGE(MC II-TR)-MC 225-S STERN DRIVE
SERIAL 00000000-03386120 -
2265948 TUBE, OIL GUAGE (MC II-TR) STERN DRIVE
SERIAL 03523081-09999999TUBE, OIL GUAGE (MC II-TR) STERN DRIVE
SERIAL 03523081-09999999 -
2360606T BRACKET, OIL LEVEL GAUGE STERN DRIVEBRACKET, OIL LEVEL GAUGE STERN DRIVE
-
2454-61405 CLAMP, OIL LEVEL GAUGE TUBE BRACKET STERN DRIVECLAMP, OIL LEVEL GAUGE TUBE BRACKET STERN DRIVE
-
2510-98256 SCREW, CLAMP ATTACHING STERN DRIVESCREW, CLAMP ATTACHING STERN DRIVE
-
2612-29245 WASHER, CLAMP ATTACHING SCREW STERN DRIVEWASHER, CLAMP ATTACHING SCREW STERN DRIVE
-
2711-8267089 NUT, CLAMP ATTACHING SCREW STERN DRIVENUT, CLAMP ATTACHING SCREW STERN DRIVE
-
2854-61405 CLIP, OIL LEVEL GAUGE TUBE STERN DRIVECLIP, OIL LEVEL GAUGE TUBE STERN DRIVE
-
2910-32417 SCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (1/2") STERN DRISCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (1/2") STERN DRI
-
3060599F1 GAUGE, OIL LEVEL (DIPSTICK) STERN DRIVEGAUGE, OIL LEVEL (DIPSTICK) STERN DRIVE
-
1661566 OIL PAN INBOARDOIL PAN INBOARD
-
1727-64798 GASKET SET, OIL PAN INBOARDGASKET SET, OIL PAN INBOARD
-
1822-36373 PLUG, PIPE - OIL PAN DRAIN INBOARDPLUG, PIPE - OIL PAN DRAIN INBOARD
-
2010-55714 SCREW, OIL PAN TO CYLINDER BLOCK (5/16-18 X 7/8") INBOARDSCREW, OIL PAN TO CYLINDER BLOCK (5/16-18 X 7/8") INBOARD
-
20A13-26993 LOCKWASHER, OIL PAN SCREW (5/16") INBOARDLOCKWASHER, OIL PAN SCREW (5/16") INBOARD
-
2110-55715 SCREW, OIL PAN TO CYLINDER BLOCK (1/4-20 X 7/8") INBOARDSCREW, OIL PAN TO CYLINDER BLOCK (1/4-20 X 7/8") INBOARD
-
21A13-26992 LOCKWASHER, OIL PAN SCREW (1/4") INBOARDLOCKWASHER, OIL PAN SCREW (1/4") INBOARD
-
2286890A2 TUBE, OIL LEVEL GAUGE INBOARDTUBE, OIL LEVEL GAUGE INBOARD
-
2854-475451 CLIP, OIL LEVEL GAUGE TUBE INBOARDCLIP, OIL LEVEL GAUGE TUBE INBOARD
-
2910-33524 SCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (5/8") INBOARDSCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (5/8") INBOARD
-
3086194220 GUAGE, OIL LEVEL (DIPSTICK) INBOARDGUAGE, OIL LEVEL (DIPSTICK) INBOARD
-
3122-47625 ELBOW, OIL LEVEL GUAGE TUBE TO OIL PAN INBOARDELBOW, OIL LEVEL GUAGE TUBE TO OIL PAN INBOARD
-
3211-47626 NUT, OIL LEVEL GAUGE TUBE INBOARDNUT, OIL LEVEL GAUGE TUBE INBOARD
-
3347404 BRACKET, OIL LEVEL GAUGE TUBE CLIP INBOARDBRACKET, OIL LEVEL GAUGE TUBE CLIP INBOARD
-
3413-39107 LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW INBOARDLOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW INBOARD
-
3511-22053 NUT, OIL LEVEL GAUGE TUBE CLIP SCREW INBOARDNUT, OIL LEVEL GAUGE TUBE CLIP SCREW INBOARD
