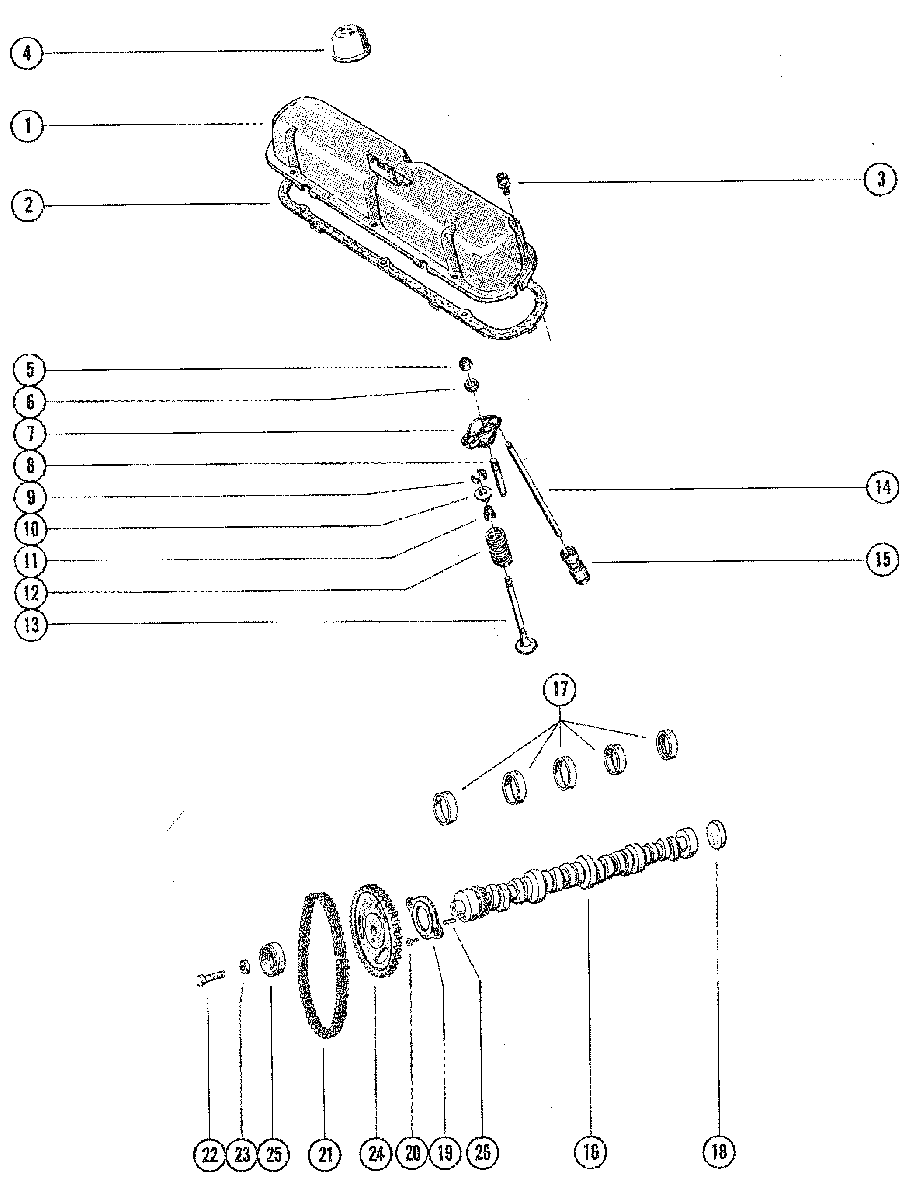

ROCKER COVER, CAMSHAFT AND VALVES для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999
-
№АртикулНазвание
-
156156 COVER, ROCKER (PORT)COVER, ROCKER (PORT)
-
156171 COVER, ROCKER (STARBOARD)COVER, ROCKER (STARBOARD)
-
227-56173 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
310-56172 SCREW, ROCKER COVER TO CYLINDER HEAD (5/8")SCREW, ROCKER COVER TO CYLINDER HEAD (5/8")
-
456875 CAP, OIL FILLER - ROCKER COVERCAP, OIL FILLER - ROCKER COVER
-
437-64707 DECAL, ROCKER COVER - "MERCRUISER MARINE"DECAL, ROCKER COVER - "MERCRUISER MARINE"
-
437-36350 DECAL, HORSEPOWER - "225 H.P.DECAL, HORSEPOWER - "225 H.P.
-
511-56167 NUT, ROCKER ARM STUDNUT, ROCKER ARM STUD
-
656166 BALL, ROCKER ARMBALL, ROCKER ARM
-
756168 ARM, ROCKERARM, ROCKER
-
816-56164 STUD, ROCKER ARM - CYLINDER HEAD (STANDARD)STUD, ROCKER ARM - CYLINDER HEAD (STANDARD)
-
816-58242 STUD, ROCKER ARM - CYLINDER HEAD (.006 O.S.)STUD, ROCKER ARM - CYLINDER HEAD (.006 O.S.)
-
816-58243 STUD, ROCKER ARM - CYLINDER HEAD (.015 O.S.)STUD, ROCKER ARM - CYLINDER HEAD (.015 O.S.)
-
928-547971 KEY, VALVE STEM (2 PER VALVE)KEY, VALVE STEM (2 PER VALVE)
-
1072561 CAP, VALVE SPRING (INLET VALVE)CAP, VALVE SPRING (INLET VALVE)
-
1072562 CAP, VALVE SPRING (EXHAUST VALVE)CAP, VALVE SPRING (EXHAUST VALVE)
-
1126-75624 SEAL, VALVESEAL, VALVE
-
1224-56159 SPRING, VALVESPRING, VALVE
-
1356154 VALVE, EXHAUST (STANDARD)VALVE, EXHAUST (STANDARD)
-
1356155 VALVE, EXHAUST (.015 O.S.)VALVE, EXHAUST (.015 O.S.)
-
1356157 VALVE, INLET (STANDARD)VALVE, INLET (STANDARD)
-
1356158 VALVE, INLET (.015 O.S.)VALVE, INLET (.015 O.S.)
-
1456169 ROD, PUSHROD, PUSH
-
1556153 LIFTER, HYDRAULIC - TAPPETLIFTER, HYDRAULIC - TAPPET
-
16447-5098 CAMSHAFT (LEFT HAND CRANKSHAFT ROTATION)CAMSHAFT (LEFT HAND CRANKSHAFT ROTATION)
-
16447-5099 CAMSHAFT (RIGHT HAND CRANKSHAFT ROTATION)CAMSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
-
1723-56124 BEARING SET, CAMSHAFTBEARING SET, CAMSHAFT
-
1819-56128 PLUG, EXPANSION - CAMSHAFT BEARING HOLEPLUG, EXPANSION - CAMSHAFT BEARING HOLE
-
1956130 PLATE, THRUST - CAMSHAFT (STANDARD)PLATE, THRUST - CAMSHAFT (STANDARD)
-
1956131 PLATE, THRUST - CAMSHAFT (.002 O.S.)PLATE, THRUST - CAMSHAFT (.002 O.S.)
-
1956132 PLATE, THRUST - CAMSHAFT (.004 O.S.)PLATE, THRUST - CAMSHAFT (.004 O.S.)
-
2010-56133 SCREW, THRUST PLATE TO CYLINDER BLOCK (5/8")SCREW, THRUST PLATE TO CYLINDER BLOCK (5/8")
-
2156129 CHAIN, TIMINGCHAIN, TIMING
-
2210-56138 SCREW, ECCENTRIC AND SPROCKET TO CAMSHAFT (1 1/2")SCREW, ECCENTRIC AND SPROCKET TO CAMSHAFT (1 1/2")
-
2312-56136 WASHER, ECCENTRIC AND SPROCKET SCREWWASHER, ECCENTRIC AND SPROCKET SCREW
-
2443-66177A1 SPROCKET, CAMSHAFT TIMING (42 TEETH)
SEE NOTESPROCKET, CAMSHAFT TIMING (42 TEETH)
SEE NOTE -
2556137 ECCENTRIC, CAMSHAFT (FUEL PUMP DRIVE) - 1 PIECE
SEE NOTEECCENTRIC, CAMSHAFT (FUEL PUMP DRIVE) - 1 PIECE
SEE NOTE -
2617-66176 PIN, DOWEL - CAMSHAFT
SEE NOTEPIN, DOWEL - CAMSHAFT
SEE NOTE -
2443-66177A1 SPROCKET ASS'Y, CAMSHAFT TIMING (42 TEETH)
SEE NOTESPROCKET ASS'Y, CAMSHAFT TIMING (42 TEETH)
SEE NOTE -
2571684 ECCENTRIC ASS'Y, CAMSHAFT (FUEL PUMP DRIVE) - 2 PIECE
SEE NOTEECCENTRIC ASS'Y, CAMSHAFT (FUEL PUMP DRIVE) - 2 PIECE
SEE NOTE -
2617-66180 PIN, DOWEL - CAMSHAFT
SEE NOTEPIN, DOWEL - CAMSHAFT
SEE NOTE
