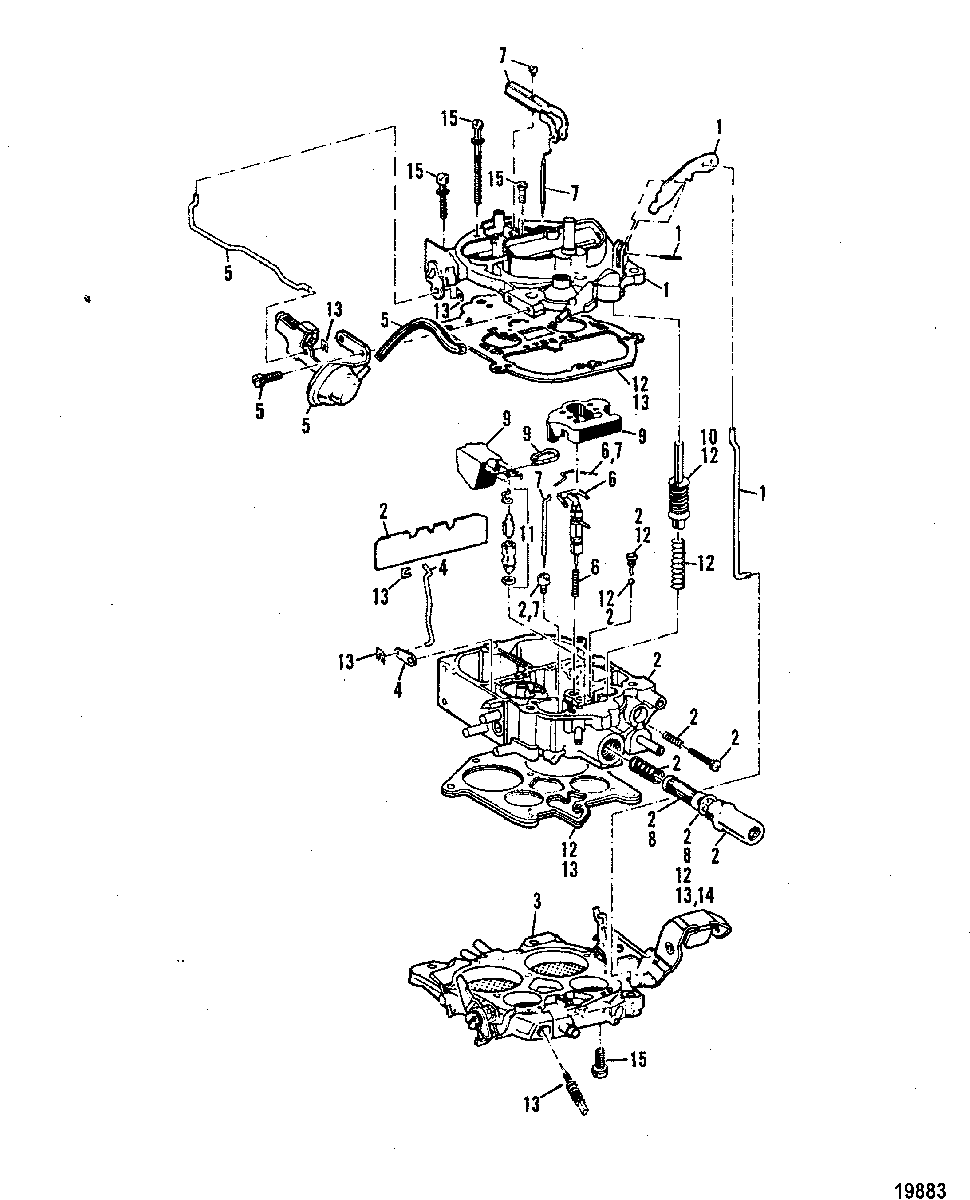

Carburetor для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1987-1995 0B522506 THRU 0B788151
-
№АртикулНазвание
-
-1347-804623R02 CARBURETOR ASSEMBLY
(230 - 5.0L)CARBURETOR ASSEMBLY
(230 - 5.0L) -
-1347-804624R02 CARBURETOR ASSEMBLY
(260 - 5.7L)CARBURETOR ASSEMBLY
(260 - 5.7L) -
11397-8574 AIR HORN KIT
(230 - 5.0L)AIR HORN KIT
(230 - 5.0L) -
11397-8539 FLOAT BOWL KIT
(260 - 5.7L)FLOAT BOWL KIT
(260 - 5.7L) -
21397-8575 FLOAT BOWL KIT
(230 - 5.0L)FLOAT BOWL KIT
(230 - 5.0L) -
21397-8539 FLOAT BOWL KIT
(260 - 5.7L)FLOAT BOWL KIT
(260 - 5.7L) -
31397-8540 THROTTLE BODY KITTHROTTLE BODY KIT
-
41397-8541 LINK/LEVER KIT, ChokeLINK/LEVER KIT, Choke
-
51397-8582 PRIMARY VACUUM KIT
(230 - 5.0L)PRIMARY VACUUM KIT
(230 - 5.0L) -
51397-8542 PIN, Spring
(260 - 5.7L)PIN, Spring
(260 - 5.7L) -
61397-8543T PISTON KITPISTON KIT
-
71397-8577 METERING JET AND ROD KIT
(230 - 5.0L)METERING JET AND ROD KIT
(230 - 5.0L) -
71397-8544 METERING JET AND ROD KIT
(260 - 5.7L)METERING JET AND ROD KIT
(260 - 5.7L) -
81397-8767Q FILTER KIT, FuelFILTER KIT, Fuel
-
91397-8546T FLOAT KITFLOAT KIT
-
10823426A1 PUMP KITPUMP KIT
-
11823426A1 NEEDLE/SEAT KITNEEDLE/SEAT KIT
-
12823426A1 REPAIR KIT, Carburetor
(See Note)REPAIR KIT, Carburetor
(See Note) -
13823426A1 GASKET KIT
(See Note)GASKET KIT
(See Note) -
141397-8327 GASKET, INLET FILTER NUTGASKET, INLET FILTER NUT
-
151397-8557 SCREW KIT, AIR HORN/THROTTLE BODYSCREW KIT, AIR HORN/THROTTLE BODY
-
-27-524572 GASKETGASKET
