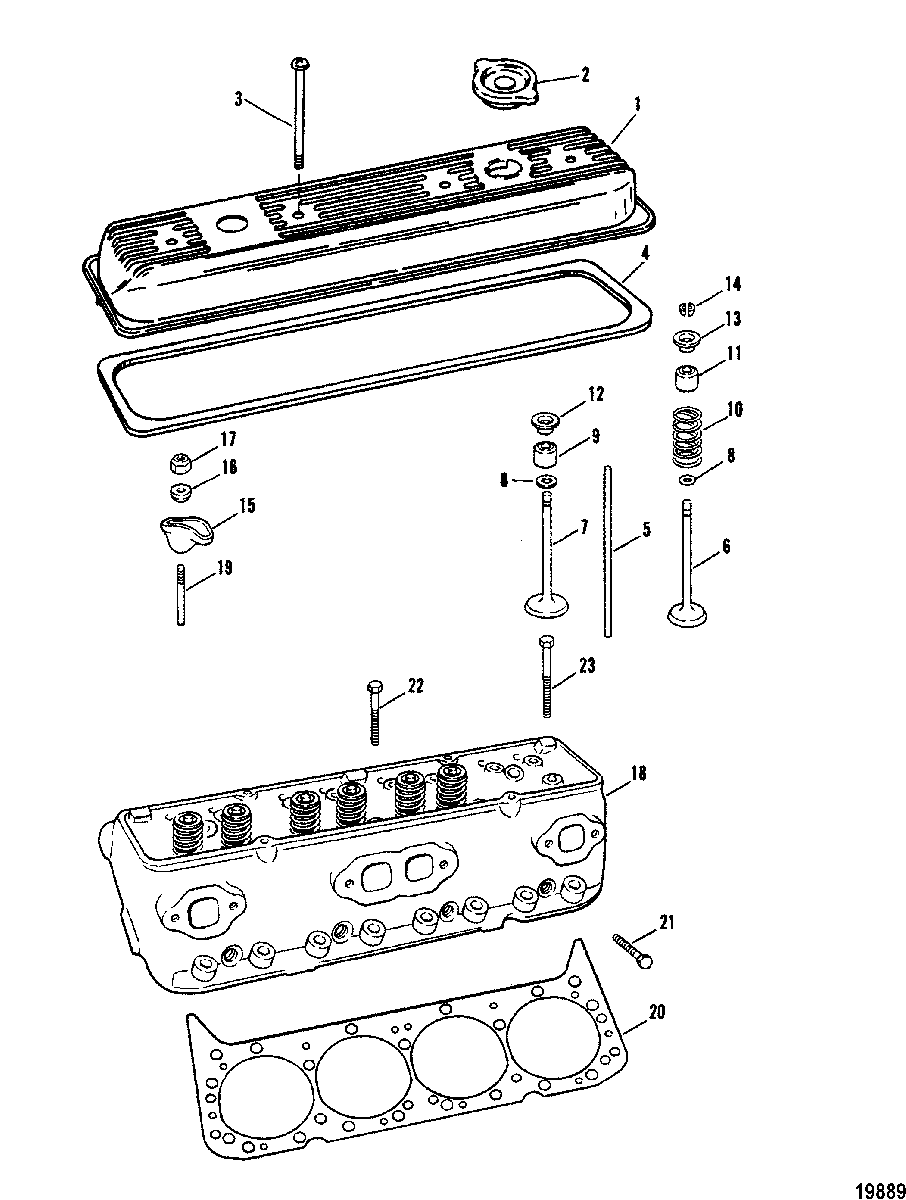

Cylinder Head and Rocker Cover для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1987-1995 0B522506 THRU 0B788151
-
№АртикулНазвание
-
1809995 COVER, ROCKER
(CLAMP TYPE CAP_COVER, ROCKER
(CLAMP TYPE CAP_ -
1809995 COVER, ROCKER
(SCREW TYPE CAP)COVER, ROCKER
(SCREW TYPE CAP) -
217345 CAP
(CLAMP TYPE CAP)CAP
(CLAMP TYPE CAP) -
236-18710002 CAP, Metal Rocker Cover
(SCREW TYPE CAP)CAP, Metal Rocker Cover
(SCREW TYPE CAP) -
310-8M0084557 SCREW, ROCKER COVERSCREW, ROCKER COVER
-
427-17467 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
599948 PUSH ROD, VALVE PUSHPUSH ROD, VALVE PUSH
-
687284 VALVE, EXHAUST (STANDARD)VALVE, EXHAUST (STANDARD)
-
6883265 VALVE, EXHAUST (.015 O.S.)VALVE, EXHAUST (.015 O.S.)
-
794912 VALVE, INLET (STANDARD)
(230-5.0L)VALVE, INLET (STANDARD)
(230-5.0L) -
797661 VALVE, INLET (STANDARD)
(260-5.7L)VALVE, INLET (STANDARD)
(260-5.7L) -
798603 VALVE, INLET (.015 O.S.)
(230-5.0L)VALVE, INLET (.015 O.S.)
(230-5.0L) -
797662 VALVE, INLET (.015 O.S.)
(260-5.7L)VALVE, INLET (.015 O.S.)
(260-5.7L) -
826-34217 SEAL, VALVE (INLET AND EXHAUST)SEAL, VALVE (INLET AND EXHAUST)
-
926-8M0050563 SEAL, INLET VALVESEAL, INLET VALVE
-
1024-48347 SPRING, VALVE (INLET AND EXHAUST)SPRING, VALVE (INLET AND EXHAUST)
-
1134518001 SHIELD, VALVE SPRING CAPSHIELD, VALVE SPRING CAP
-
1248348 CAP, INLET VALVECAP, INLET VALVE
-
1311965 ROTATOR, VALVE SPRING-EXHAUST VALVEROTATOR, VALVE SPRING-EXHAUST VALVE
-
1428-547971 KEY, VALVE STEMKEY, VALVE STEM
-
1535329 ARM KIT, RockerARM KIT, Rocker
-
1635331 BALL, Rocker Arm, ROCKER VALVE ARMBALL, Rocker Arm, ROCKER VALVE ARM
-
1711-34516 NUT, ROCKER VALVE ARM STUDNUT, ROCKER VALVE ARM STUD
-
18938-9714 CYLINDER HEAD ASSEMBLY
(230-5.0L)CYLINDER HEAD ASSEMBLY
(230-5.0L) -
18938-883490R1 CYLINDER HEAD ASSEMBLY
(260-5.7L)CYLINDER HEAD ASSEMBLY
(260-5.7L) -
1916-34522 STUD, ROCKER VALVE ARM (.003 O.S.)STUD, ROCKER VALVE ARM (.003 O.S.)
-
1916-34521 STUD, ROCKER VALVE ARM (.013 O.S.)STUD, ROCKER VALVE ARM (.013 O.S.)
-
2027-75611001 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2110-11968 SCREW, (.437-14 x 1.750), CYLINDER HEAD CYLINDER BLOCKSCREW, (.437-14 x 1.750), CYLINDER HEAD CYLINDER BLOCK
-
2210-119671 BOLT, (3 In.), CYLINDER HEAD CYLINDER BLOCK (3")BOLT, (3 In.), CYLINDER HEAD CYLINDER BLOCK (3")
-
2310-11966 SCREW, (.437-14 x 3.750), CYLINDER HEAD TO CYLINDER BLOCKSCREW, (.437-14 x 3.750), CYLINDER HEAD TO CYLINDER BLOCK
