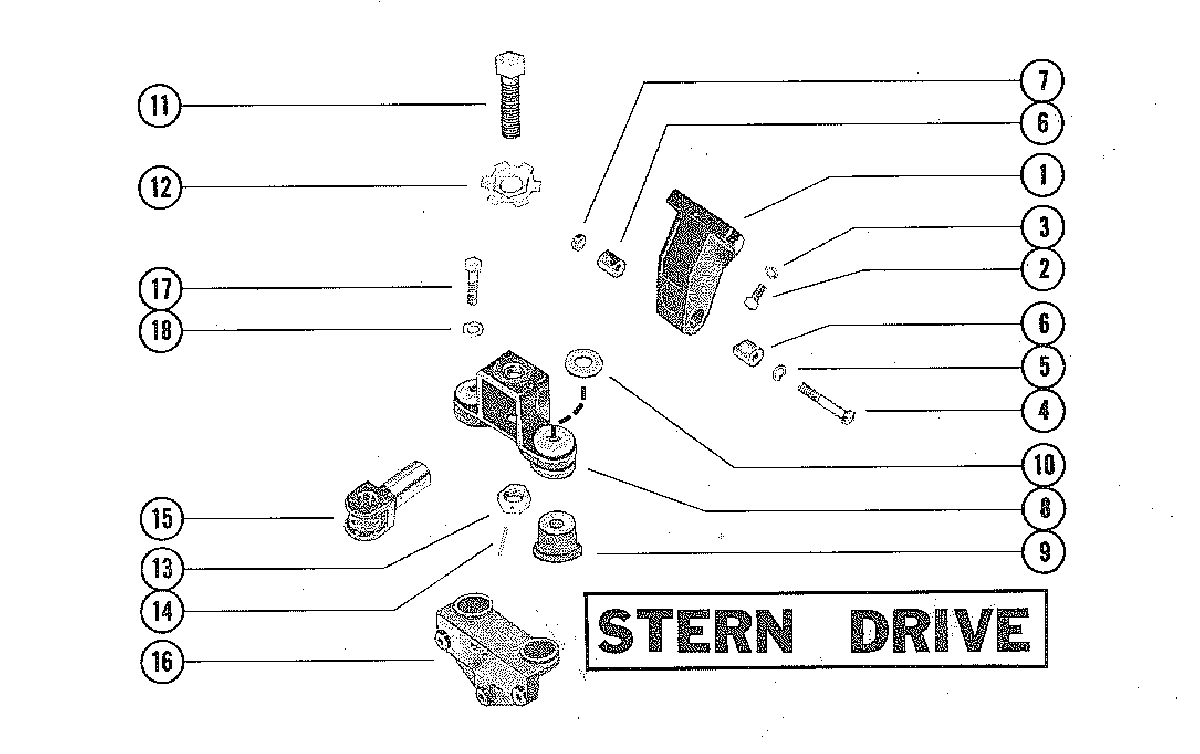

ENGINE MOUNTING STERN DRIVE для Mercruiser - 250 (2 BBL.) GM 327 V-8 1968-1969 2314301 THRU 2639854
-
№АртикулНазвание
-
148709 BRACKET, MOUNTING (FRONT)BRACKET, MOUNTING (FRONT)
-
210-37612 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 1/4")SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 1/4")
-
313-35048 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
410-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
-
513-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREWLOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
-
654-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
711-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREWNUT, CLAMP ADJUSTING TRUNNION SCREW
-
847601A2 BRACKET ASSEMBLY, MOUNTING - FRONT
SERIAL 00000000-02557817BRACKET ASSEMBLY, MOUNTING - FRONT
SERIAL 00000000-02557817 -
947656 MOUNTING, MOUNTING BRACKET
SERIAL 00000000-02557817MOUNTING, MOUNTING BRACKET
SERIAL 00000000-02557817 -
1012-48611 WASHER, MOUNTING BRACKET
SERIAL 00000000-02557817WASHER, MOUNTING BRACKET
SERIAL 00000000-02557817 -
1110-47652 SCREW, ADJUSTING TRUNNION (3 5/8")
SERIAL 00000000-02557817SCREW, ADJUSTING TRUNNION (3 5/8")
SERIAL 00000000-02557817 -
852139A4 BRACKET ASSEMBLY, MOUNTING - FRONT
SERIAL 02557818-09999999BRACKET ASSEMBLY, MOUNTING - FRONT
SERIAL 02557818-09999999 -
952753 MOUNT, MOUNTING BRACKET
SERIAL 02557818-09999999MOUNT, MOUNTING BRACKET
SERIAL 02557818-09999999 -
1012-48611 WASHER, MOUNTING BRACKET
SERIAL 02557818-09999999WASHER, MOUNTING BRACKET
SERIAL 02557818-09999999 -
1110-52156 SCREW, ADJUSTING TRUNNION (4 1/2")
SERIAL 02557818-09999999SCREW, ADJUSTING TRUNNION (4 1/2")
SERIAL 02557818-09999999 -
1214-48467 TAB WASHER, ADJUSTING TRUNNION SCREWTAB WASHER, ADJUSTING TRUNNION SCREW
-
1311-47525 NUT, JAM - ADJUSTING TRUNNION SCREWNUT, JAM - ADJUSTING TRUNNION SCREW
-
1417-22116 PIN, ROLL - JAM NUTPIN, ROLL - JAM NUT
-
1547518 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
1624-47968 BRACKET, MOUNTING ENGINEBRACKET, MOUNTING ENGINE
-
1710-48254 SCREW, MOUNTING BRACKET ATTACHING (2 1/8")SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
-
1813-31848 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
