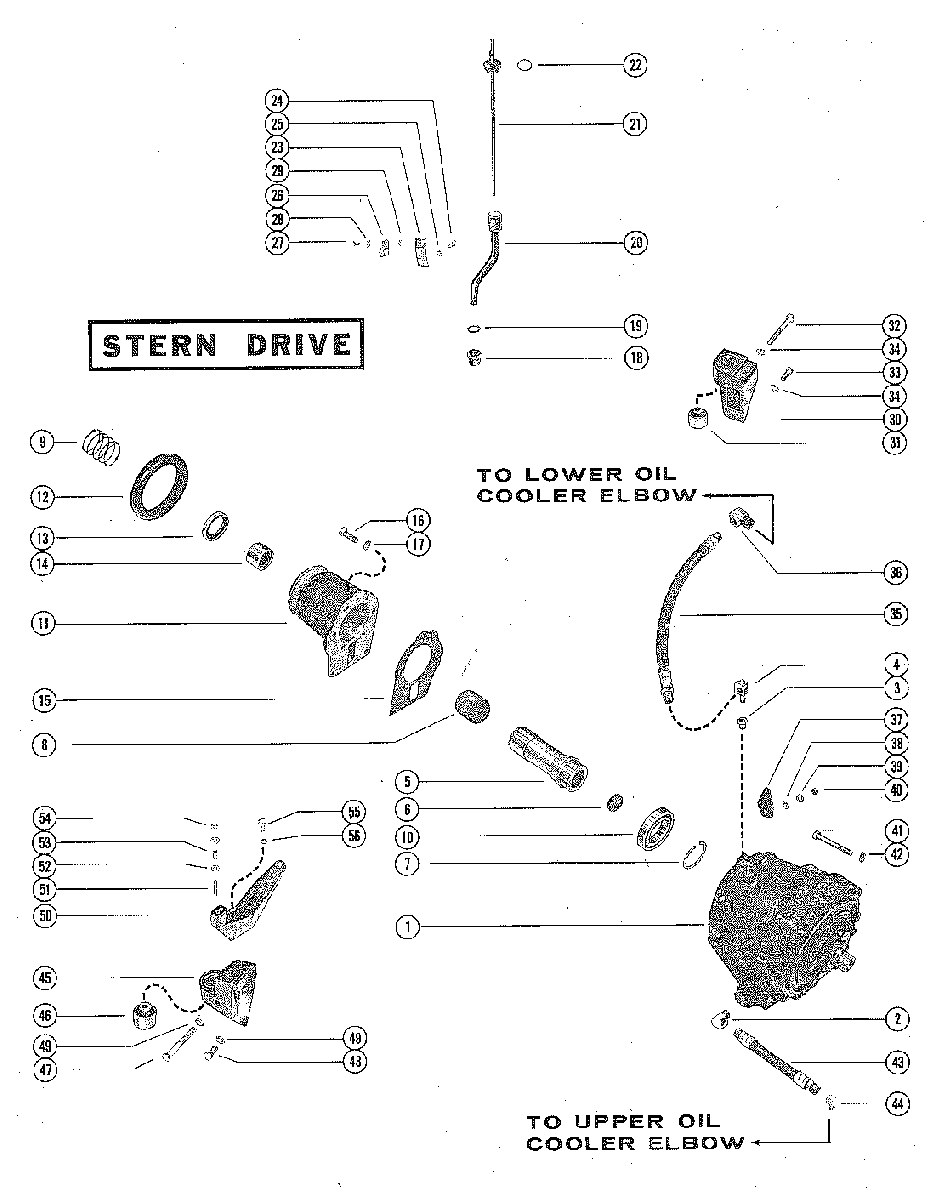

TRANSMISSION ASSEMBLY (STERN DRIVE) для Mercruiser - 250 (2 BBL.) GM 327 V-8 1968-1969 2314301 THRU 2639854
-
№АртикулНазвание
-
147753A3 TRANSMISSION ASSEMBLYTRANSMISSION ASSEMBLY
-
222-47629 ELBOW, TRANSMISSION TO OIL HOSEELBOW, TRANSMISSION TO OIL HOSE
-
323-36159 BUSHING, REDUCING - TRANSMISSION ELBOWBUSHING, REDUCING - TRANSMISSION ELBOW
-
422-47631 ELBOW, TRANSMISSION TO OIL HOSEELBOW, TRANSMISSION TO OIL HOSE
-
547339A4 ENGINE COUPLING ASSEMBLY, TRANSMISSIONENGINE COUPLING ASSEMBLY, TRANSMISSION
-
619-47463 PLUG, EXPANSION - ENGINE COUPLINGPLUG, EXPANSION - ENGINE COUPLING
-
753-47469 RING, SNAP - BALL BEARING TO ENGINE COUPLINGRING, SNAP - BALL BEARING TO ENGINE COUPLING
-
823-47471T BEARING, ENGINE COUPLINGBEARING, ENGINE COUPLING
-
924-47755 SPRING, GUIDE - ENGINE COUPLINGSPRING, GUIDE - ENGINE COUPLING
-
1030-47470 BALL BEARING, ENGINE COUPLING TO TRANSMISSIONBALL BEARING, ENGINE COUPLING TO TRANSMISSION
-
1147333A1 HOUSING ASSEMBLY, BEARING SUPPORTHOUSING ASSEMBLY, BEARING SUPPORT
-
1225-47756 "O" RING, BEARING SUPPORT HOUSING"O" RING, BEARING SUPPORT HOUSING
-
1326-47465 OIL SEAL, BEARING SUPPORT HOUSINGOIL SEAL, BEARING SUPPORT HOUSING
-
1431-47468T ROLLER BEARING, BEARING SUPPORT HOUSINGROLLER BEARING, BEARING SUPPORT HOUSING
-
1527-47903 GASKET, BEARING SUPPORT HOUSINGGASKET, BEARING SUPPORT HOUSING
-
1610-47462 SCREW, BEARING SUPPORT HOUSING TO TRANSMISSION (1 1/4")SCREW, BEARING SUPPORT HOUSING TO TRANSMISSION (1 1/4")
-
1713-32993 LOCKWASHER, BEARING SUPPORT HOUSING SCREWLOCKWASHER, BEARING SUPPORT HOUSING SCREW
-
1848461 ADAPTOR, OIL LEVEL GAUGE TUBE TO TRANSMISSIONADAPTOR, OIL LEVEL GAUGE TUBE TO TRANSMISSION
-
1925-48462 "O" RING, OIL LEVER TUBE ADAPTOR"O" RING, OIL LEVER TUBE ADAPTOR
-
2048463 TUBE, OIL LEVEL GAUGETUBE, OIL LEVEL GAUGE
-
2148464 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
2225-35276 "O" RING, OIL LEVEL GAUGE"O" RING, OIL LEVEL GAUGE
-
2348466 BRACKET, MOUNTING - OIL LEVEL GAUGE TUBEBRACKET, MOUNTING - OIL LEVEL GAUGE TUBE
-
2410-34290 SCREW, MOUNTING BRACKET TO TRANSMISSION MOUNT BRACKET (5/8")SCREW, MOUNTING BRACKET TO TRANSMISSION MOUNT BRACKET (5/8")
-
2513-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
2654-48465 CLAMP, OIL LEVEL TUBBE TO MOUNTING BRACKETCLAMP, OIL LEVEL TUBBE TO MOUNTING BRACKET
-
2710-98256 SCREW, OIL LEVEL GAUGE TUBING CLAMPSCREW, OIL LEVEL GAUGE TUBING CLAMP
-
2813-26992 LOCKWASHER, OIL LEVEL GAUGE TUBE CLAMP SCREWLOCKWASHER, OIL LEVEL GAUGE TUBE CLAMP SCREW
-
2911-21825 NUT, OIL LEVEL GAUGE TUBE CLAMP SCREWNUT, OIL LEVEL GAUGE TUBE CLAMP SCREW
-
3047338A1 BRACKET ASSEMBLY, TRANSMISSION MOUNT (PORT)BRACKET ASSEMBLY, TRANSMISSION MOUNT (PORT)
-
3135852 MOUNT, TRANSMIISSION MOUNT BRACKETMOUNT, TRANSMIISSION MOUNT BRACKET
-
3210-38197 SCREW, MOUNT BRACKET TO TRANSMISSION (3 1/2")SCREW, MOUNT BRACKET TO TRANSMISSION (3 1/2")
-
3310-47462 SCREW, MOUNT TO TRANSMISSION (1 1/4")SCREW, MOUNT TO TRANSMISSION (1 1/4")
-
3413-32993 LOCKWASHER, MOUNT BRACKET SCREWLOCKWASHER, MOUNT BRACKET SCREW
-
3532-4751612 HOSE, TRANSMISSION TO OIL COOLER (15")HOSE, TRANSMISSION TO OIL COOLER (15")
-
3622-47630 ELBOW, TRANSMISSION HOSEELBOW, TRANSMISSION HOSE
-
3712128 LEVEL, SHIFT - TRANSMISSIONLEVEL, SHIFT - TRANSMISSION
-
3812-20722 WASHER, SHIFT LEVEL TO TRANSMISSIONWASHER, SHIFT LEVEL TO TRANSMISSION
-
3913-26993 LOCKWASHER, SHIFT LEVEL TO TRANSMISIONLOCKWASHER, SHIFT LEVEL TO TRANSMISION
-
4011-22053 NUT, SHIFT LEVEL TO TRANSMISSIONNUT, SHIFT LEVEL TO TRANSMISSION
-
4110-47724 SCREW, TRANSMISSION TO ENGINE (3")SCREW, TRANSMISSION TO ENGINE (3")
-
4213-32993 LOCKWASHER, TRANSMISSION SCREWLOCKWASHER, TRANSMISSION SCREW
-
4332-475163 HOSE, TRANSMISSION TO OIL COLLER (77/8")HOSE, TRANSMISSION TO OIL COLLER (77/8")
-
4422-47630 ELBOW, HOSE TO OIL COLLERELBOW, HOSE TO OIL COLLER
-
4547336A1 BRACKET ASSEMBLY, TRANSMISSION MOUNT (STARTBOARD)BRACKET ASSEMBLY, TRANSMISSION MOUNT (STARTBOARD)
-
4635852 MOUNT, TRANSMISSION MOUNT BRACKETMOUNT, TRANSMISSION MOUNT BRACKET
-
4710-38197 SCREW, MOUNT BRACKET TO TRANSMISSION (3 1/2")SCREW, MOUNT BRACKET TO TRANSMISSION (3 1/2")
-
4810-47462 SCREW, MOUNT BRACKET TO TRANSMISSION (1 1/4")SCREW, MOUNT BRACKET TO TRANSMISSION (1 1/4")
-
4913-32993 LOCKWASHER, MOUNT BRACKET SCREWLOCKWASHER, MOUNT BRACKET SCREW
-
5047335A1 BRACKET ASSEMBLY, SHIFT SUPPORTBRACKET ASSEMBLY, SHIFT SUPPORT
-
5116-728091 STUD SUPPORT BRACKETSTUD SUPPORT BRACKET
-
5212-69056 WASHER, SHIFT SUPPORT BRACKET STUDWASHER, SHIFT SUPPORT BRACKET STUD
-
5323-31866 SPACER, SHIFT SUPPORT BRACKET STUDSPACER, SHIFT SUPPORT BRACKET STUD
-
5411-826709109 NUT, SHIFT SUPPORT BRACKET STUDNUT, SHIFT SUPPORT BRACKET STUD
-
5510-35386 SCREW, SHIFT SUPPORT BRACKET TO MOUNT BRACKET (1")SCREW, SHIFT SUPPORT BRACKET TO MOUNT BRACKET (1")
-
5613-26993 LOCKWASHER, SHIFT SUPPORT BRACKET SCREWLOCKWASHER, SHIFT SUPPORT BRACKET SCREW
