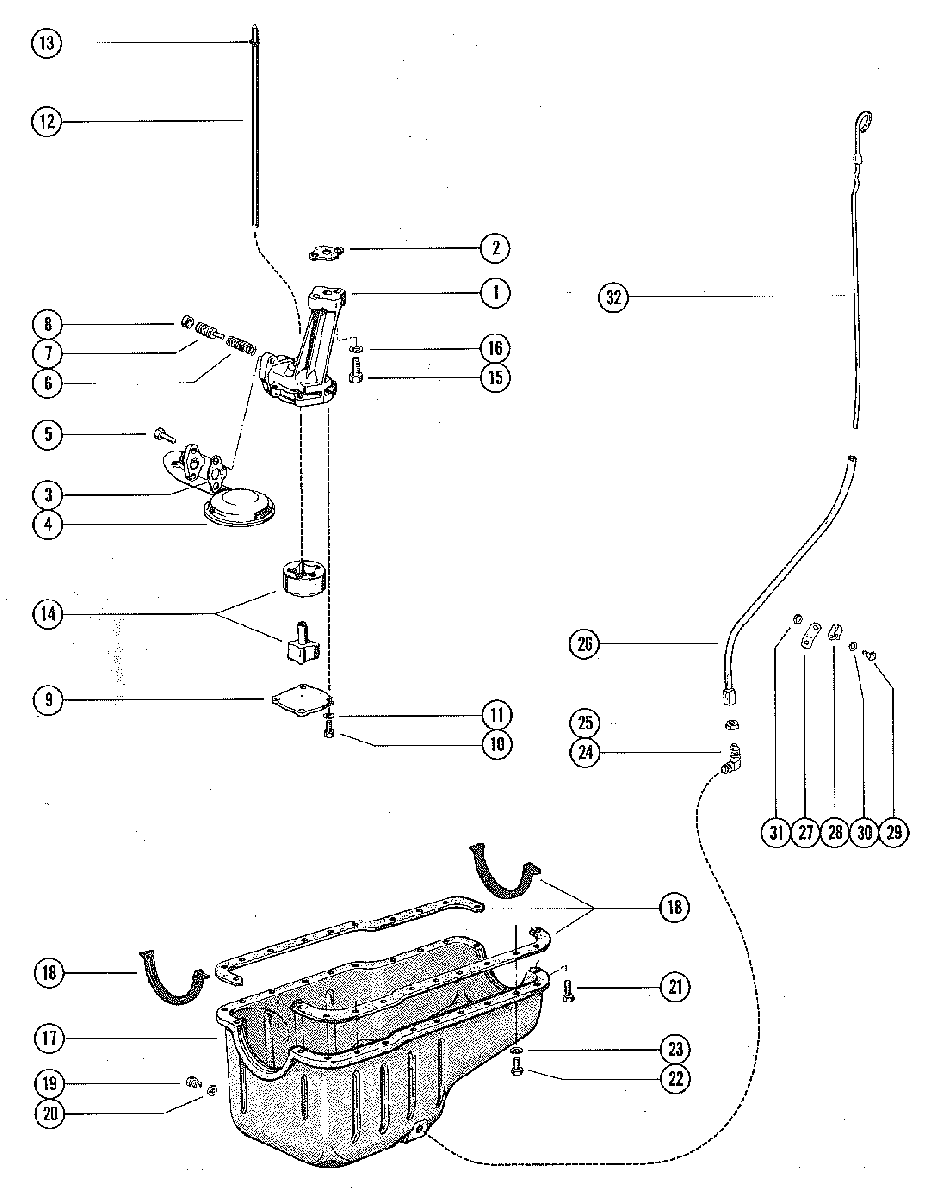

OIL PUMP AND OIL PAN для Mercruiser - 255 MIE FORD 351 V-8 1973-1974 3258728 THRU 4178299
-
№АртикулНазвание
-
164787 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
227-64789 GASKET, OIL PUMPGASKET, OIL PUMP
-
327-56859 GASKET, OIL PUMP SCREENGASKET, OIL PUMP SCREEN
-
464788 SCREEN, OIL PUMP (STERN DRIVE)SCREEN, OIL PUMP (STERN DRIVE)
-
432-62131A1 OIL PICKUP ASSEMBLY (INBOARD)OIL PICKUP ASSEMBLY (INBOARD)
-
510-56858 SCREW, SCREEN TO OIL PUMP (7/8")SCREW, SCREEN TO OIL PUMP (7/8")
-
624-64791 SPRING, OIL PUMP RELIEF VALVESPRING, OIL PUMP RELIEF VALVE
-
764792 PLUNGER, OIL PUMP RELIEF VALVEPLUNGER, OIL PUMP RELIEF VALVE
-
819-65117 PLUG, OIL PUMP RELIEF VALVEPLUG, OIL PUMP RELIEF VALVE
-
956179 PLATE, OIL PUMPPLATE, OIL PUMP
-
1010-56133 SCREW, PLATE TO OIL PUMP (5/8")SCREW, PLATE TO OIL PUMP (5/8")
-
1113-26992 LOCKWASHER, PLATE SCREWLOCKWASHER, PLATE SCREW
-
1264786 SHAFT, ASSEMBLY, OIL PUMPSHAFT, ASSEMBLY, OIL PUMP
-
1353-56860 RING, RETAINING - OIL PUMP SHAFTRING, RETAINING - OIL PUMP SHAFT
-
1464785 ROTOR AND SHAFT, OIL PUMPROTOR AND SHAFT, OIL PUMP
-
1510-56176 SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")
-
1613-56177 LOCKWASHER, OIL PUMP SCREWLOCKWASHER, OIL PUMP SCREW
-
1772566 OIL PAN (STERN DRIVE)OIL PAN (STERN DRIVE)
-
1759529A1 OIL PAN (INBOARD)OIL PAN (INBOARD)
-
1827-65114A1 GASKET SET, OIL PANGASKET SET, OIL PAN
-
1922-60720 PLUG, PIPE - OIL PAN DRAIN (STERN DRIVE)PLUG, PIPE - OIL PAN DRAIN (STERN DRIVE)
-
1922-36373 PLUG, PIPE - OIL PAN DRAIN (INBOARD)PLUG, PIPE - OIL PAN DRAIN (INBOARD)
-
2027-8M0077608 GASKET, OIL DRAIN PLUGGASKET, OIL DRAIN PLUG
-
2110-56858 SCREW, OIL PAN TO CYL BLOCK (5/16-18 X 7/8")
STERN DRIVESCREW, OIL PAN TO CYL BLOCK (5/16-18 X 7/8")
STERN DRIVE -
2210-60708 SCREW, OIL PAN TO CYL BLOCK (1/4-20 X 9/16")
STERN DRIVESCREW, OIL PAN TO CYL BLOCK (1/4-20 X 9/16")
STERN DRIVE -
2110-55714 SCREW, OIL PAN TO CYL BLOCK (5/16-18 X 7/8")
INBOARDSCREW, OIL PAN TO CYL BLOCK (5/16-18 X 7/8")
INBOARD -
2210-55715 SCREW, OIL PAN TO CYL BLOCK (1/4-20 X 7/8")
INBOARDSCREW, OIL PAN TO CYL BLOCK (1/4-20 X 7/8")
INBOARD -
2313-26993 LOCKWASHER, OIL PAN SCREW (5/16")
INBOARDLOCKWASHER, OIL PAN SCREW (5/16")
INBOARD -
2313-26992 LOCKWASHER, OIL PAN SCREW (1/4")
INBOARDLOCKWASHER, OIL PAN SCREW (1/4")
INBOARD -
2422-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
INBOARDELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
INBOARD -
2511-47626 NUT, OIL LEVEL GAUGE TUBE
INBOARDNUT, OIL LEVEL GAUGE TUBE
INBOARD -
2662965 TUBE, OIL LEVEL GUAGE
STERN DRIVETUBE, OIL LEVEL GUAGE
STERN DRIVE -
2686890A2 TUBE, OIL LEVEL GAUGE
INBOARDTUBE, OIL LEVEL GAUGE
INBOARD -
2760606T BRACKET, OIL LEVEL GAUGE TUBE CLIP
INBOARDBRACKET, OIL LEVEL GAUGE TUBE CLIP
INBOARD -
2854-28938 CLIP, OIL LEVEL GAUGE TUBE
INBOARDCLIP, OIL LEVEL GAUGE TUBE
INBOARD -
2910-32417 SCREW, OIL GUAGE TUBE CLIP TO BRACKET (5/8")
INBOARDSCREW, OIL GUAGE TUBE CLIP TO BRACKET (5/8")
INBOARD -
3013-26992 LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW
INBOARDLOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW
INBOARD -
3111-20088 NUT, OIL LEVEL GAUGE TUBE CLIP SCREW
INBOARDNUT, OIL LEVEL GAUGE TUBE CLIP SCREW
INBOARD -
3263179 GAUGE, OIL LEVEL (DIPSTICK)
STERN DRIVEGAUGE, OIL LEVEL (DIPSTICK)
STERN DRIVE -
3262311T GAUGE, OIL LEVEL (DIPSTICK)
INBOARDGAUGE, OIL LEVEL (DIPSTICK)
INBOARD
