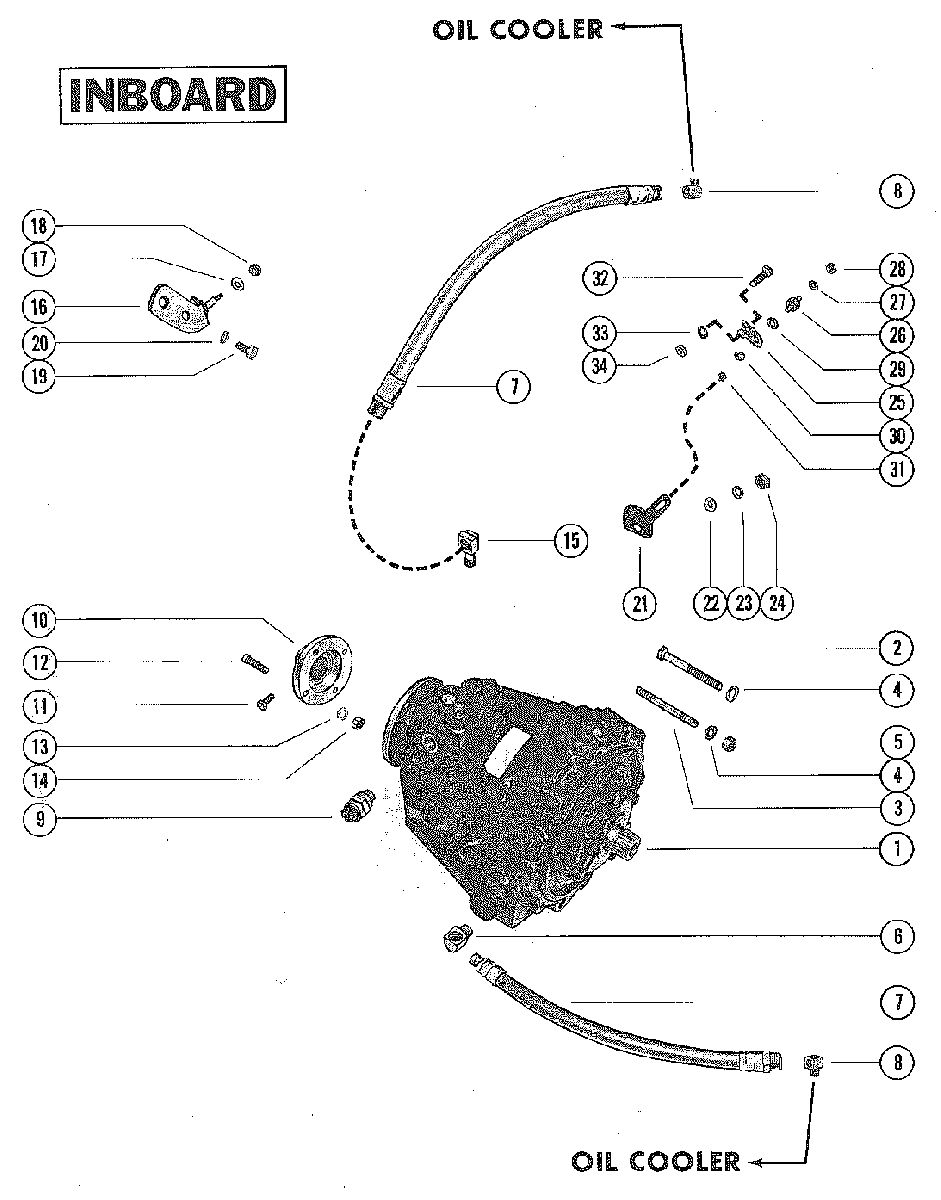

TRANSMISSION AND RELATED PARTS (INBOARD) для Mercruiser - 255 MIE FORD 351 V-8 1973-1974 3258728 THRU 4178299
-
№АртикулНазвание
-
147805A7 TRANSMISSION (DIRECT DRIVE)TRANSMISSION (DIRECT DRIVE)
-
147806R07 TRANSMISSION (1.523:1 REDUCTION)TRANSMISSION (1.523:1 REDUCTION)
-
147807A7 TRANSMISSION (1.909:1 REDUCTION)TRANSMISSION (1.909:1 REDUCTION)
-
147808R07 TRANSMISSION (2.57:1 REDUCTION)TRANSMISSION (2.57:1 REDUCTION)
-
147809A7 TRANSMISSION (2.909:1 REDUCTION)TRANSMISSION (2.909:1 REDUCTION)
-
210-47724 SCREW, TRANSMISSION TO ENGINE (3")SCREW, TRANSMISSION TO ENGINE (3")
-
210-47724 SCREW, TRANSMISSION TO ENGINE (3")SCREW, TRANSMISSION TO ENGINE (3")
-
316-57921 STUD, TRANSMISSION TO ENGINE (4")STUD, TRANSMISSION TO ENGINE (4")
-
413-32993 LOCKWASHER, TRANSMISSION SCREW AND STUDLOCKWASHER, TRANSMISSION SCREW AND STUD
-
511-22024 NUT, TRANSMISSION STUDNUT, TRANSMISSION STUD
-
622-47629 ELBOW, HOSE TO TRANSMISSION (90)ELBOW, HOSE TO TRANSMISSION (90)
-
732-475166 HOSE, TRANSMISSION TO OIL COOLER (28)HOSE, TRANSMISSION TO OIL COOLER (28)
-
732-4751612 HOSE, TRANSMISSION TO OIL COOLER (20)HOSE, TRANSMISSION TO OIL COOLER (20)
-
732-475166 HOSE, TRANSMISSION TO OIL COOLER (30")HOSE, TRANSMISSION TO OIL COOLER (30")
-
822-63835 ELBOW, HOSE TO OIL COOLERELBOW, HOSE TO OIL COOLER
-
947613 SWITCH, NEUTRAL SAFETYSWITCH, NEUTRAL SAFETY
-
1087917A1 FLANGE ASSEMBLY (1")
SEE NOTE AFLANGE ASSEMBLY (1")
SEE NOTE A -
1087917A2 FLANGE ASSEMBLY (1 1/8")
SEE NOTE AFLANGE ASSEMBLY (1 1/8")
SEE NOTE A -
1087917A3 FLANGE ASSEMBLY (1 1/4")
SEE NOTE AFLANGE ASSEMBLY (1 1/4")
SEE NOTE A -
1048384A1 FLANGE ASSEMBLY (1 3/8")
SEE NOTE AFLANGE ASSEMBLY (1 3/8")
SEE NOTE A -
1087917A5 FLANGE ASSEMBLY (1 1/2")
SEE NOTE AFLANGE ASSEMBLY (1 1/2")
SEE NOTE A -
1079476A1 FLANGE ASSEMBLY (1")
SEE NOTE BFLANGE ASSEMBLY (1")
SEE NOTE B -
1079476A2 FLANGE ASSEMBLY (1 1/8")
SEE NOTE BFLANGE ASSEMBLY (1 1/8")
SEE NOTE B -
1079476A3 FLANGE ASSEMBLY (1 1/4")
SEE NOTE BFLANGE ASSEMBLY (1 1/4")
SEE NOTE B -
1079476A4 FLANGE ASSEMBLY (1 3/8")
SEE NOTE BFLANGE ASSEMBLY (1 3/8")
SEE NOTE B -
1079476A4 FLANGE ASSEMBLY (1 1/2")
SEE NOTE BFLANGE ASSEMBLY (1 1/2")
SEE NOTE B -
1110-60168 SCREW, FLANGE TO PROPELLER SHAFT (1 1/2")
SEE NOTE A AND BSCREW, FLANGE TO PROPELLER SHAFT (1 1/2")
SEE NOTE A AND B -
1110-60171 SREW,FLANGE TO PROPELLER SHAFT (1 1/4")
SEE NOTE A AND BSREW,FLANGE TO PROPELLER SHAFT (1 1/4")
SEE NOTE A AND B -
1110-60171 SCREW, FLANGE TO PROPELLER SHAFT(1")
SEE NOTE A AND BSCREW, FLANGE TO PROPELLER SHAFT(1")
SEE NOTE A AND B -
1110-60169 SCREW, FLANGE TO PROPELLER SHAFT (3/4")
SEE NOTE A AND BSCREW, FLANGE TO PROPELLER SHAFT (3/4")
SEE NOTE A AND B -
1210-37909 SCREW, FLANGE TO TRANSMISSION (1 1/8")SCREW, FLANGE TO TRANSMISSION (1 1/8")
-
1313-35048 LOCKWASHER, TRANSMISSION FLANGE SCREWLOCKWASHER, TRANSMISSION FLANGE SCREW
-
1411-46335 NUT, TRANSMISSION FLANGE SCREWNUT, TRANSMISSION FLANGE SCREW
-
1522-63824 ELBOW, HOSE TO TRANSMISSION (90)ELBOW, HOSE TO TRANSMISSION (90)
-
1648648 BRACKET, SHIFT CABLE (SERIAL #3259127 AND BELOW)BRACKET, SHIFT CABLE (SERIAL #3259127 AND BELOW)
-
1663815A1 BRACKET, SHIFT CABLE (SERIAL #3603978 AND UP)BRACKET, SHIFT CABLE (SERIAL #3603978 AND UP)
-
1712-56681 WASHER, SHIFT CABLE TO BRASKET STUDWASHER, SHIFT CABLE TO BRASKET STUD
-
1811-46438 NUT, SHIFT CALBE TO BRACKET STUD(10-32)NUT, SHIFT CALBE TO BRACKET STUD(10-32)
-
1910-65746 SCREW, BRACKET TO TRANSMISSION (3/4")SCREW, BRACKET TO TRANSMISSION (3/4")
-
2013-26992 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
2148515 LEVER, SHIFT-TRANSMISSIONLEVER, SHIFT-TRANSMISSION
-
2212-20722 WASHER, SHIFT LEBER TO TRANSMISSIONWASHER, SHIFT LEBER TO TRANSMISSION
-
2313-26993 LOCKWSHER, SHIFT LEVER TO TRANSMISSIONLOCKWSHER, SHIFT LEVER TO TRANSMISSION
-
2411-22053 NUT, SHIFT LEVER TO TRANSMISSIONNUT, SHIFT LEVER TO TRANSMISSION
-
2548652 ADAPTOR, SHIFT BALE TO SHIFT LEVERADAPTOR, SHIFT BALE TO SHIFT LEVER
-
2616-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
-
2712-20533 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
2811-20184 NUT, SHIFT CALE ADA{TPR STUD(1 1/4-28)NUT, SHIFT CALE ADA{TPR STUD(1 1/4-28)
-
2913-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUDWAVE WASHER, SHIFT CABLE ADAPTOR STUD
-
3012-56681 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
3111-46438 NUT, SHIFT CABLE ADAPTOR STUDE(10-32)NUT, SHIFT CABLE ADAPTOR STUDE(10-32)
-
3210-20639 SCREW, CABLE TO ADAPTOR (1 1/8")SCREW, CABLE TO ADAPTOR (1 1/8")
-
3312-22753 WASHER, SHIFT CABLE SCREWWASHER, SHIFT CABLE SCREW
-
3411-29250 NUT, SHIFT CABLE SCREW (5/16-24)NUT, SHIFT CABLE SCREW (5/16-24)
