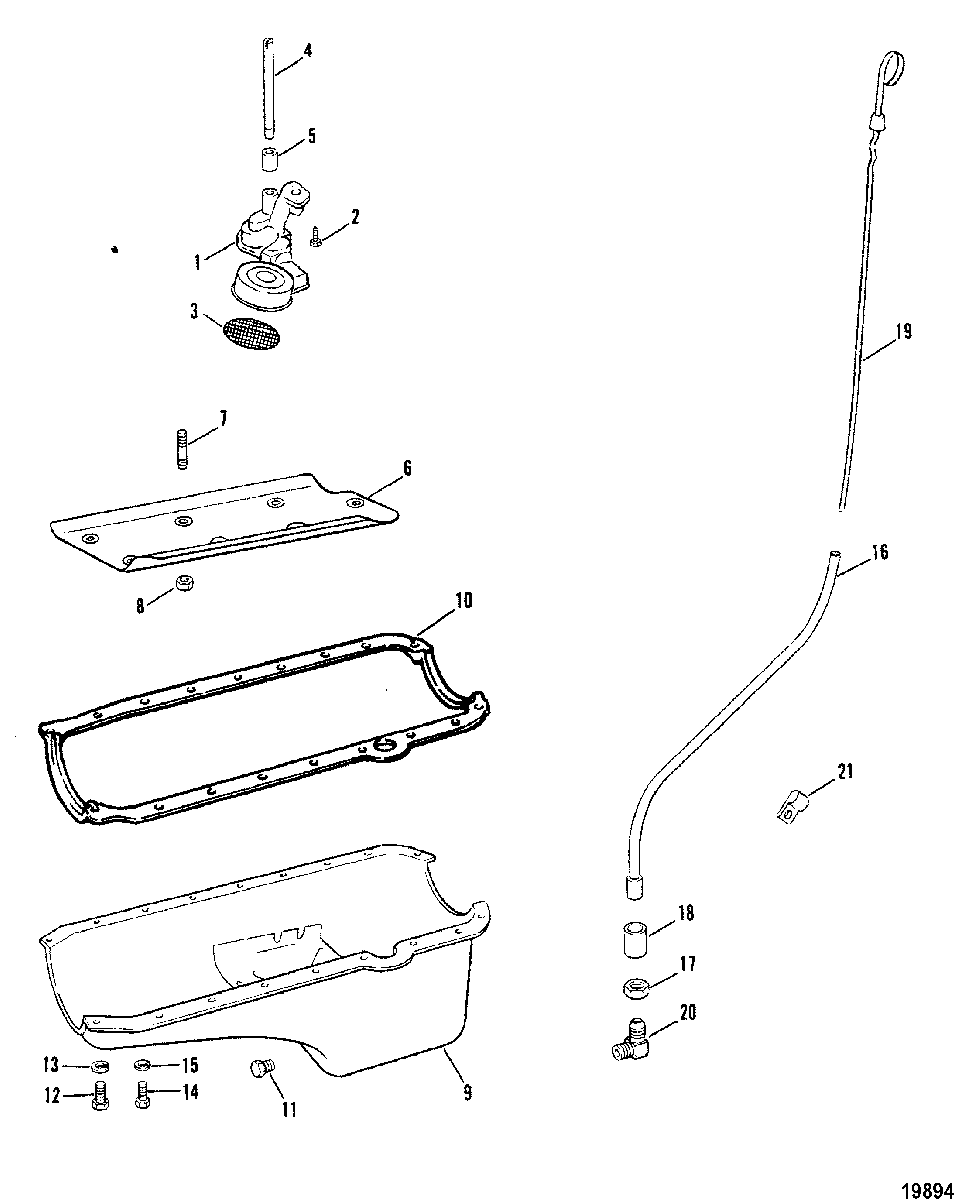

Oil Pan and Oil Pump для Mercruiser - 260 MIE GM 350 V-8 1987 0B522506 THRU 0B788196
-
№АртикулНазвание
-
117617 PUMP, OilPUMP, Oil
-
210-17346 SCREW, OIL PUMP TO CYLINDER BLOCKSCREW, OIL PUMP TO CYLINDER BLOCK
-
335354 SCREEN ASSEMBLY, OIL PUMPSCREEN ASSEMBLY, OIL PUMP
-
436184 SHAFT, OIL PUMP TO DISTRIBUTORSHAFT, OIL PUMP TO DISTRIBUTOR
-
523-36183 RETAINER, OIL PUMP SHAFTRETAINER, OIL PUMP SHAFT
-
6986021 BAFFLE, OIL PAN (CYLINDER BLOCK)BAFFLE, OIL PAN (CYLINDER BLOCK)
-
716-54790 STUD, OIL PAN BAFFLESTUD, OIL PAN BAFFLE
-
811-37500 NUT, (3/8-16), OIL PAN BAFFLE STUDNUT, (3/8-16), OIL PAN BAFFLE STUD
-
9805930A1 PAN ASSEMBLY, OilPAN ASSEMBLY, Oil
-
1027-138651 GASKET, OIL PANGASKET, OIL PAN
-
1122-32803 PLUG, PIPE - OIL PAN DRAINPLUG, PIPE - OIL PAN DRAIN
-
1210-54523 SCREW, (.312-18 x 1.00), OIL PANSCREW, (.312-18 x 1.00), OIL PAN
-
1313-26993 LOCKWASHER, (.312), OIL PAN SCREWLOCKWASHER, (.312), OIL PAN SCREW
-
1410-55715 SCREW, (.250-20 x .880), OIL PANSCREW, (.250-20 x .880), OIL PAN
-
1513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1686890A2 TUBE, OIL LEVEL GAUGETUBE, OIL LEVEL GAUGE
-
1711-47626 NUT, OIL LEVEL GAUGE TUBENUT, OIL LEVEL GAUGE TUBE
-
1822-78039 COUPLING, OIL LEVEL GAUGE TUBECOUPLING, OIL LEVEL GAUGE TUBE
-
1986194220 GAUGE, OIL LEVEL-DIPSTICKGAUGE, OIL LEVEL-DIPSTICK
-
1986194219 GAUGE, OIL LEVEL-DIPSTICK (HORIZONTAL MOUNTING)GAUGE, OIL LEVEL-DIPSTICK (HORIZONTAL MOUNTING)
-
2022-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PANELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
-
2154-92338 CLIP, OIL LEVEL TUBECLIP, OIL LEVEL TUBE
-
-27-75611A88 GASKET SET, EngineGASKET SET, Engine
