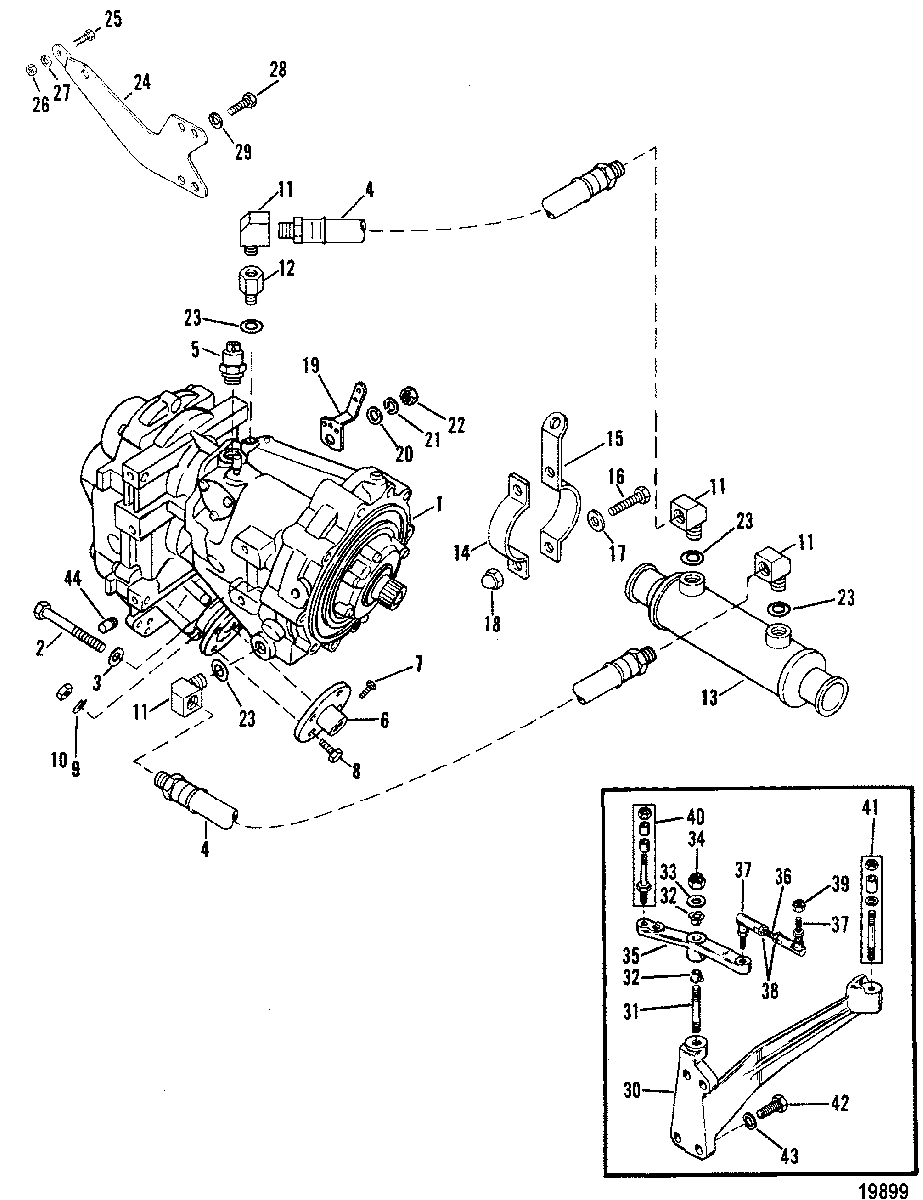

Transmission and Related Parts(V-Drive) для Mercruiser - 260 MIE GM 350 V-8 1987 0B522506 THRU 0B788196
-
№АртикулНазвание
-
160588A11 TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)
-
160954A11 TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)
-
160955A10 TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)
-
160956A11 TRANSMISSION, V-DRIVE(3.149:1 REDUCTION)TRANSMISSION, V-DRIVE(3.149:1 REDUCTION)
-
210-60179 SCREW, (.437-14 x 3.500), TRANSMISSIONSCREW, (.437-14 x 3.500), TRANSMISSION
-
313-32993 LOCKWASHER, (.437), TRANSMISSION SCREWLOCKWASHER, (.437), TRANSMISSION SCREW
-
432-4751613 HOSE, (49.00 Inches), OIL COOLER TO TRANSMISSIONHOSE, (49.00 Inches), OIL COOLER TO TRANSMISSION
-
587-88031 SWITCH ASSEMBLY, TEMPERATURESWITCH ASSEMBLY, TEMPERATURE
-
679476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
(Use with 10-60171)FLANGE ASSEMBLY, (5.00 x 1.00)
(Use with 10-60171) -
679476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
(Use with 10-60171)FLANGE ASSEMBLY, (5.00 x 1.125)
(Use with 10-60171) -
679476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
(Use with 10-60171)FLANGE ASSEMBLY, (5.00 x 1.25)
(Use with 10-60171) -
679476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
(Use with 10-60171)FLANGE ASSEMBLY, (5.00 x 1.375)
(Use with 10-60171) -
679476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
(Use with 10-60170)FLANGE ASSEMBLY, (5.00 x 1.50)
(Use with 10-60170) -
679476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
(Use with 10-60170)FLANGE ASSEMBLY, (5.00 x 1.75)
(Use with 10-60170) -
679476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
(Use with 10-60169)FLANGE ASSEMBLY, (5.00 x 2.00)
(Use with 10-60169) -
710-60171 SCREW, (.375-16 x 1.250), FLANGESCREW, (.375-16 x 1.250), FLANGE
-
710-60171 SCREW, (1 In.), FLANGE (1")SCREW, (1 In.), FLANGE (1")
-
710-60169 SCREW, (.375-16 x .750), FLANGESCREW, (.375-16 x .750), FLANGE
-
810-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
913-32993 LOCKWASHER, (.437), FLANGE SCREWLOCKWASHER, (.437), FLANGE SCREW
-
1011-22024 NUT, (.437-14), FLANGE SCREWNUT, (.437-14), FLANGE SCREW
-
1122-47629 ELBOW, 90 Degree, HOSE TO TRANSMISSION AND OIL COOLERELBOW, 90 Degree, HOSE TO TRANSMISSION AND OIL COOLER
-
1222-88517 FITTING, Reducing, ELBOWFITTING, Reducing, ELBOW
-
1363832T COOLER, Transmission Oil, TRANSMISSIONCOOLER, Transmission Oil, TRANSMISSION
-
1456328A1 BRACKET, OIL COOLER (SHORT)BRACKET, OIL COOLER (SHORT)
-
1563820F3 BRACKET, OIL COOLER (LONG)BRACKET, OIL COOLER (LONG)
-
1610-69028 SCREW, (.250-28 x .750) Stainless Steel, OIL COOLER BRACKETSCREW, (.250-28 x .750) Stainless Steel, OIL COOLER BRACKET
-
1712-34931 WASHER, (.406 x .734 x .063) Stainless Steel, OIL COOLER BRACKET SCREWWASHER, (.406 x .734 x .063) Stainless Steel, OIL COOLER BRACKET SCREW
-
1811-30506 NUT, (.250-28), OIL COOLER BRACKET SCREWNUT, (.250-28), OIL COOLER BRACKET SCREW
-
1943325 LEVERLEVER
-
2012-20722 WASHER, (.328 x .625 x .060)WASHER, (.328 x .625 x .060)
-
2113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2211-22053 NUT, (.312-24)NUT, (.312-24)
-
2312-36533 WASHER, (.328 x .562 x .0312) Copper, ELBOWWASHER, (.328 x .562 x .0312) Copper, ELBOW
-
2493141A7 BRACKET ASSEMBLY, SHIFT CABLE
(Non-Side Entry)BRACKET ASSEMBLY, SHIFT CABLE
(Non-Side Entry) -
2510-93139 SCREW, SHIFT CABLE (1-1/8")
(Non-Side Entry)SCREW, SHIFT CABLE (1-1/8")
(Non-Side Entry) -
2611-8267089 NUT, (.250-28), SHIFT CABLE SCREW
(Non-Side Entry)NUT, (.250-28), SHIFT CABLE SCREW
(Non-Side Entry) -
2712-56720 WASHER, (.330 x .750 x .060) Stainless Steel, SHIFT CABLE SCREW
(Non-Side Entry)WASHER, (.330 x .750 x .060) Stainless Steel, SHIFT CABLE SCREW
(Non-Side Entry) -
2810-92913 SCREW, BRACKET TO TRUNNION (3/4")
(Non-Side Entry)SCREW, BRACKET TO TRUNNION (3/4")
(Non-Side Entry) -
2913-32993 LOCKWASHER, (.437), BRACKET SCREW
(Non-Side Entry)LOCKWASHER, (.437), BRACKET SCREW
(Non-Side Entry) -
3098578A2 BRACKET, SHIFT
(Side Entry)BRACKET, SHIFT
(Side Entry) -
3116-8M0034438 STUD, (.375-24/.375-16 x 2.250), CRANK TO BRACKET
(Side Entry)STUD, (.375-24/.375-16 x 2.250), CRANK TO BRACKET
(Side Entry) -
3223-26954 BUSHING, CRANK STUD
(Side Entry)BUSHING, CRANK STUD
(Side Entry) -
3312-34931 WASHER, (.406 x .734 x .063) Stainless Steel, CRANK STUD
(Side Entry)WASHER, (.406 x .734 x .063) Stainless Steel, CRANK STUD
(Side Entry) -
3411-82671013 NUT, (.375-24), CRANK STUD
(Side Entry)NUT, (.375-24), CRANK STUD
(Side Entry) -
3598576 CRANNK, SHIFT
(Side Entry)CRANNK, SHIFT
(Side Entry) -
3698574A1 SHIFT ROD ASSEMBLY
(Side Entry)SHIFT ROD ASSEMBLY
(Side Entry) -
3773393 BALL JOINT
(Side Entry)BALL JOINT
(Side Entry) -
3811-25168 NUT, (.250-28), JAM
(Side Entry)NUT, (.250-28), JAM
(Side Entry) -
3911-8267089 NUT, (.250-28), CABLE TO SHIFT ROD
(Side Entry)NUT, (.250-28), CABLE TO SHIFT ROD
(Side Entry) -
4016-97477A3 STUD KIT, CABLE TO CRANK
(Side Entry)STUD KIT, CABLE TO CRANK
(Side Entry) -
4116-73563A1 STUD KIT, CABLE TO SHIFT BRACKET
(Side Entry)STUD KIT, CABLE TO SHIFT BRACKET
(Side Entry) -
4210-47462 SCREW, (.437-14 x 1.250), SHIFT BRACKET TO TRANSMISSION
(Side Entry)SCREW, (.437-14 x 1.250), SHIFT BRACKET TO TRANSMISSION
(Side Entry) -
4313-32993 LOCKWASHER, (.437), SHIFT BRACKET SCREW
(Side Entry)LOCKWASHER, (.437), SHIFT BRACKET SCREW
(Side Entry) -
4447613 SWITCH, NEUTRAL STARTSWITCH, NEUTRAL START
