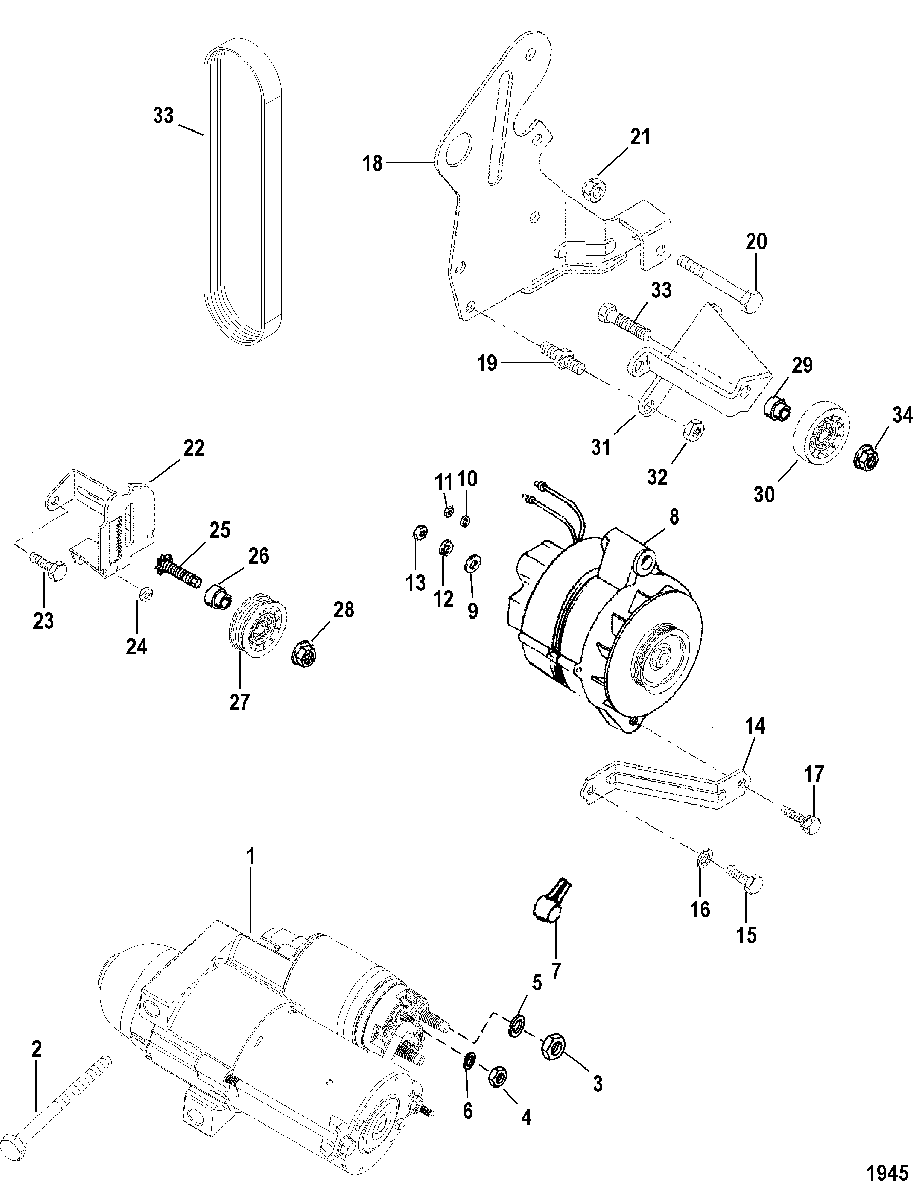

ALTERNATOR AND STARTER(MANDO) для Mercruiser - 5.7L CARB MIE 0L002003 THRU OM316999
-
№АртикулНазвание
-
150-808011A05 STARTER MOTOR ASSEMBLY
(SEE "STARTER MOTOR" FOR BREAKDOWN)STARTER MOTOR ASSEMBLY
(SEE "STARTER MOTOR" FOR BREAKDOWN) -
210-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
411-15874 NUT, (M10)NUT, (M10)
-
511-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
785-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
8807652T ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN) -
912-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
1013-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1111-79989 NUT, (#10-24) Stainless SteelNUT, (#10-24) Stainless Steel
-
1213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1311-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
14807750T BRACEBRACE
-
1510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1710-29198 SCREW AND LOCKWASHER, (.312-18 x .875)SCREW AND LOCKWASHER, (.312-18 x .875)
-
18860370T1 BRACKETBRACKET
-
1916-860102 STUD, (.375-16 x 1.730)STUD, (.375-16 x 1.730)
-
2010-56743 SCREW, (.375-24 x 3.125)SCREW, (.375-24 x 3.125)
-
2111-23161 NUT, (.375-24)NUT, (.375-24)
-
22807767T BRACKET, Idler AdjustmentBRACKET, Idler Adjustment
-
2310-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
2411-29250 NUT, (.312-24)NUT, (.312-24)
-
2543-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
26865193 BUSHINGBUSHING
-
27807757T PULLEY ASSEMBLY, Idler - BlackPULLEY ASSEMBLY, Idler - Black
-
2811-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
29807753T1 BRACKETBRACKET
-
3011-32219 NUT, (.375-16)NUT, (.375-16)
-
3112-73729 WASHER, (.390 x .546 x .190)WASHER, (.390 x .546 x .190)
-
3210-816601 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
3357-807755Q04 BELT, SerpentineBELT, Serpentine
