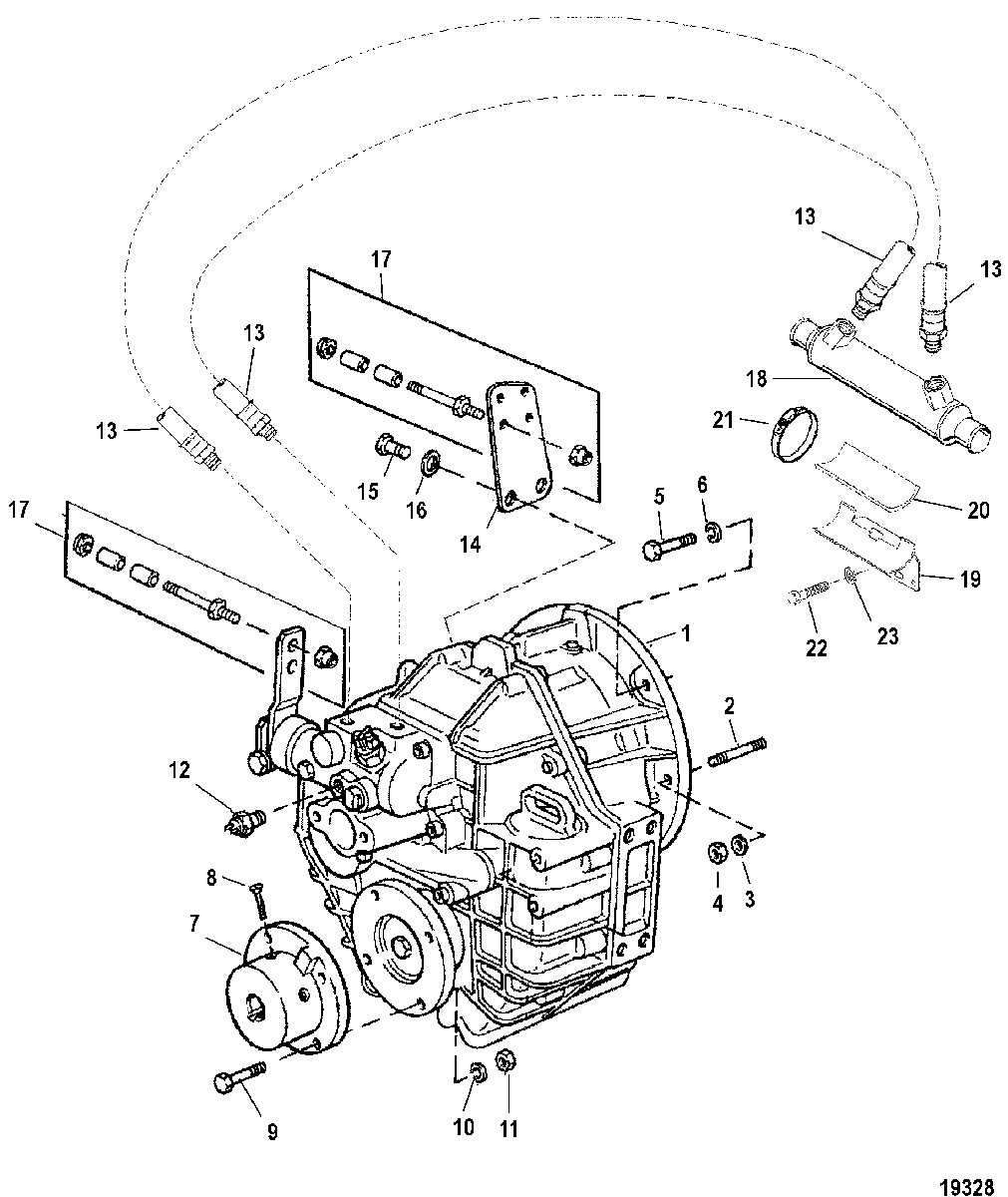

TRANSMISSION AND RELATED PARTS(HURTH 630) для Mercruiser - 5.7L CARB MIE 0L002003 THRU OM316999
-
№АртикулНазвание
-
1863744T2 TRANSMISSION, (1.5:1 Ratio)
(DOWN ANGLE TRANSMISSION)TRANSMISSION, (1.5:1 Ratio)
(DOWN ANGLE TRANSMISSION) -
1863744T3 TRANSMISSION, (2.0:1 Ratio)
(DOWN ANGLE TRANSMISSION)TRANSMISSION, (2.0:1 Ratio)
(DOWN ANGLE TRANSMISSION) -
1863744T4 TRANSMISSION, (2.50:1 Ratio)
(DOWN ANGLE TRANSMISSION)TRANSMISSION, (2.50:1 Ratio)
(DOWN ANGLE TRANSMISSION) -
1863744T5 TRANSMISSION, (2.70:1 Ratio)
(DOWN ANGLE TRANSMISSION)TRANSMISSION, (2.70:1 Ratio)
(DOWN ANGLE TRANSMISSION) -
1863745T2 TRANSMISSION, (1.5:1 Ratio)
(V-DRIVE TRANSMISSION)TRANSMISSION, (1.5:1 Ratio)
(V-DRIVE TRANSMISSION) -
1863745T3 TRANSMISSION, (2.0:1 Ratio)
(V-DRIVE TRANSMISSION)TRANSMISSION, (2.0:1 Ratio)
(V-DRIVE TRANSMISSION) -
1863745T4 TRANSMISSION, (2.5:1 Ratio)
(V-DRIVE TRANSMISSION)TRANSMISSION, (2.5:1 Ratio)
(V-DRIVE TRANSMISSION) -
216-805259 STUDSTUD
-
312-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
411-82670815 NUT, (.437-20)NUT, (.437-20)
-
510-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
787917A1 FLANGE ASSEMBLY, (4.00 x 1.00)FLANGE ASSEMBLY, (4.00 x 1.00)
-
779476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
779476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
779476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
779476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
779476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
810-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
810-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
910-68101 SCREW, (.375-16 x 1.375)
(4 IN. FLANGE)SCREW, (.375-16 x 1.375)
(4 IN. FLANGE) -
1013-35048 LOCKWASHER, (.375)
(4 IN. FLANGE)LOCKWASHER, (.375)
(4 IN. FLANGE) -
1111-32219 NUT, (.375-16)
(4 IN. FLANGE)NUT, (.375-16)
(4 IN. FLANGE) -
910-805159 SCREW, (.437-20 x 1.500)
(5 IN. FLANGE)SCREW, (.437-20 x 1.500)
(5 IN. FLANGE) -
1013-32993 LOCKWASHER, (.437)
(5 IN. FLANGE)LOCKWASHER, (.437)
(5 IN. FLANGE) -
1111-22024 NUT, (.437-14)
(5 IN. FLANGE)NUT, (.437-14)
(5 IN. FLANGE) -
1287-88031 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1332-8054781 HOSE, (19.50)HOSE, (19.50)
-
14806238 BRACKETBRACKET
-
1510-40001124 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
1613-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1716-97477A3 STUD KITSTUD KIT
-
18862837T COOLER, Transmission OilCOOLER, Transmission Oil
-
19805546A2 BRACKET, Oil CoolerBRACKET, Oil Cooler
-
20772233 PADPAD
-
2154-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2210-816585 SCREW, (.375-18 x .875)SCREW, (.375-18 x .875)
-
23NSS NOT SOLD SEPARATE, WASHER (Not sold with this model)NOT SOLD SEPARATE, WASHER (Not sold with this model)
