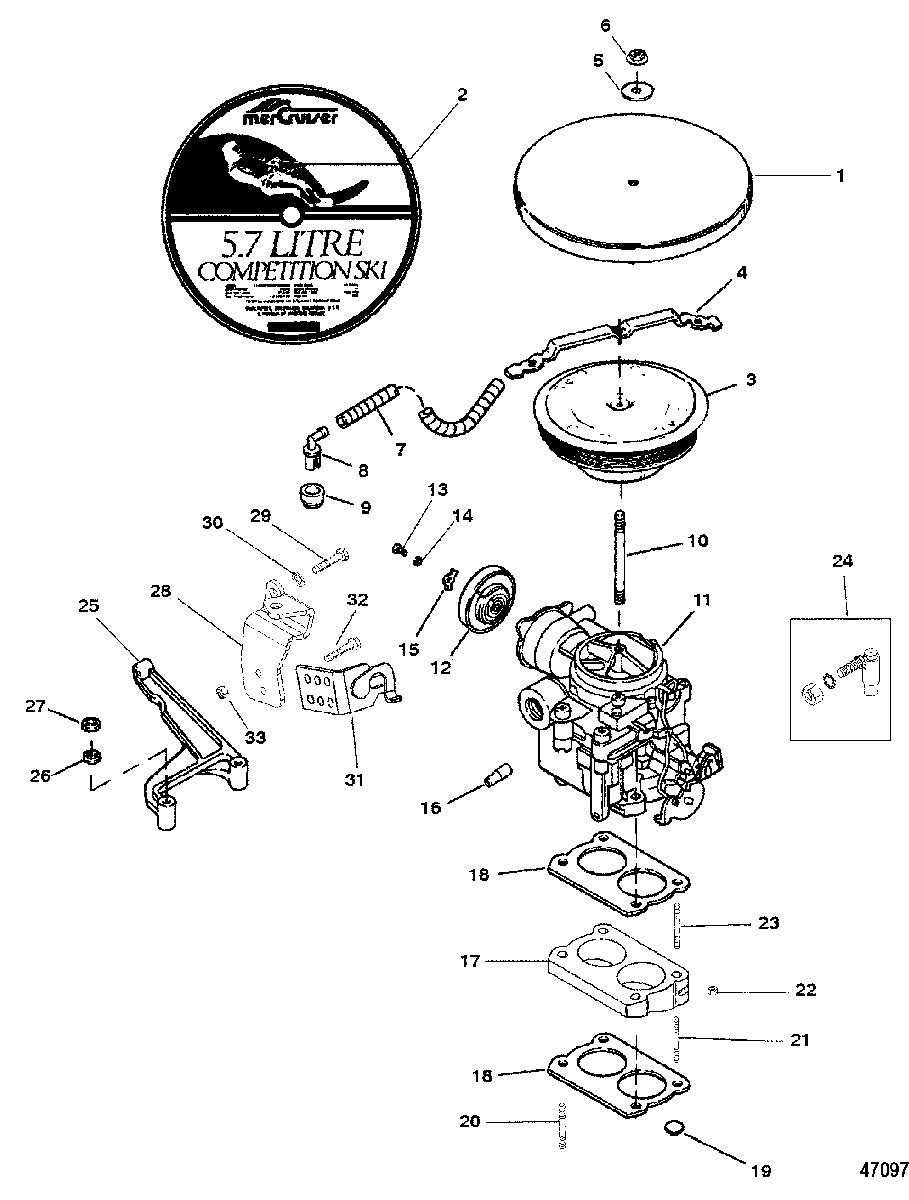

CARBURETOR/THROTTLE LINKAGE(2 BARREL) для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1996 0F775200 THRU 0K040003
-
№АртикулНазвание
-
114605T1 COVER, CarburetorCOVER, Carburetor
-
237-81893949 DECALDECAL
-
3805016A1 FLAME ARRESTORFLAME ARRESTOR
-
4805313 RETAINERRETAINER
-
512-20533 WASHERWASHER
-
611-826709109 NUT, (.250-28)NUT, (.250-28)
-
732-8M0086022 HOSE, BreatherHOSE, Breather
-
897850T ELBOW, 90 Degree, BreatherELBOW, 90 Degree, Breather
-
923-8M0071559 GROMMETGROMMET
-
1016-8M0113181 STUD, (.250-20/.250-28 x Special) (3 IN.)STUD, (.250-20/.250-28 x Special) (3 IN.)
-
113310-807312A1 CARBURETOR ASSEMBLY
(MERCARB)CARBURETOR ASSEMBLY
(MERCARB) -
1270125A02 COVER, ChokeCOVER, Choke
-
1310-33047 SCREWSCREW
-
1413-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1554-33036 RETAINERRETAINER
-
1622-54090 ELBOW, 90 degreesELBOW, 90 degrees
-
17807265A1 WEDGE (INCLUDES GASKETS)WEDGE (INCLUDES GASKETS)
-
1827-8079821 GASKETGASKET
-
1922-12524 PLUG, (.375)PLUG, (.375)
-
2016-70237 STUD, (.312-18/.312-24 x 2.620) (2-5/8 IN.)STUD, (.312-18/.312-24 x 2.620) (2-5/8 IN.)
-
2116-63332 STUD, (.312 x 1.2812) (1-9/32 IN.)STUD, (.312 x 1.2812) (1-9/32 IN.)
-
2211-862902 NUT, (.9375-24)NUT, (.9375-24)
-
2316-807975 STUD, (.312 x 2.370) (1-3/4 IN.)STUD, (.312 x 2.370) (1-3/4 IN.)
-
24807484 BALL JOINT ASSEMBLY, Quick ReleaseBALL JOINT ASSEMBLY, Quick Release
-
25805489T BRACKETBRACKET
-
2612-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
2711-29250 NUT, (.312-24)NUT, (.312-24)
-
28807494T BRACKETBRACKET
-
2910-805733 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
3013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
31807485T BRACKET ASSEMBLYBRACKET ASSEMBLY
-
3210-89766 SCREW, (#10-32 x .620) Stainless SteelSCREW, (#10-32 x .620) Stainless Steel
-
3311-826709106 NUT, (#10-32)NUT, (#10-32)
-
-27-806871A96 GASKET SET, Overhaul
CONTENTS INDICATED BY FOOTNOTE 4.GASKET SET, Overhaul
CONTENTS INDICATED BY FOOTNOTE 4.
