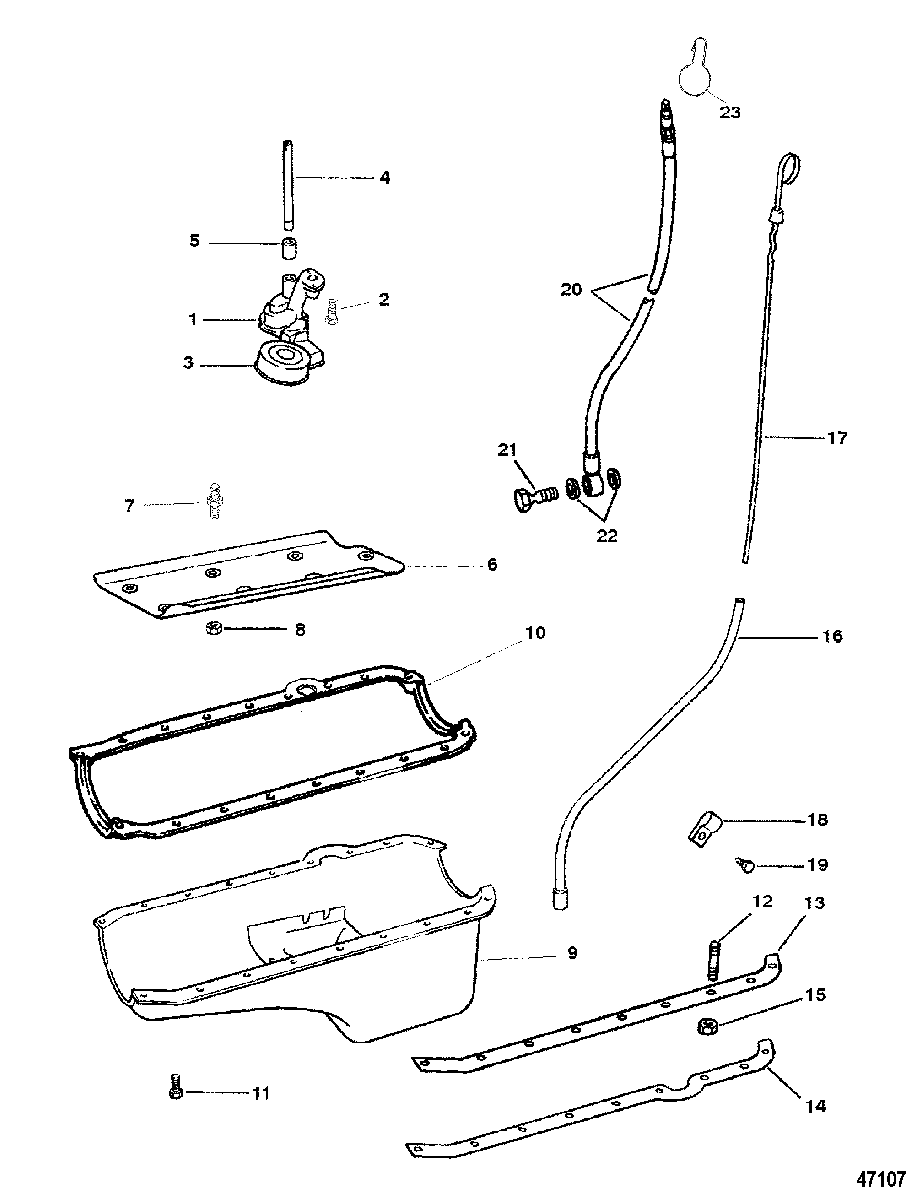

OIL PAN AND OIL PUMP для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1996 0F775200 THRU 0K040003
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-17346 SCREWSCREW
-
3809909 SCREEN, Oil Pump Pick UpSCREEN, Oil Pump Pick Up
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 BAFFLE (CYLINDER BLOCK)BAFFLE (CYLINDER BLOCK)
-
716-850090 STUD, (.437-14/.375-16 x 3.360)STUD, (.437-14/.375-16 x 3.360)
-
811-845602 NUT, (.375-16)NUT, (.375-16)
-
9809910 PAN, OilPAN, Oil
-
1027-138651 GASKET, Oil PanGASKET, Oil Pan
-
1110-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1216-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1314257 REINFORCEMENT
(PORT)REINFORCEMENT
(PORT) -
1414256 REINFORCEMENT
(STARBOARD)REINFORCEMENT
(STARBOARD) -
1511-11971 NUT, (.312-18)NUT, (.312-18)
-
1615296A2 TUBETUBE
-
17861942T7 DIPSTICK, Oil LevelDIPSTICK, Oil Level
-
1854-805625 CLIP, Dipstick TubeCLIP, Dipstick Tube
-
1910-8M0040582 SCREWSCREW
-
2032-805505A1 HOSE ASSEMBLYHOSE ASSEMBLY
-
21807497 BOLT, Banjo (M12)BOLT, Banjo (M12)
-
2227-8M0077608 GASKET, DrainGASKET, Drain
-
2354-805524 CLIPCLIP
-
-27-806871A96 GASKET SET, Overhaul
CONTENTS INDICATED BY FOOTNOTE 4.GASKET SET, Overhaul
CONTENTS INDICATED BY FOOTNOTE 4.
