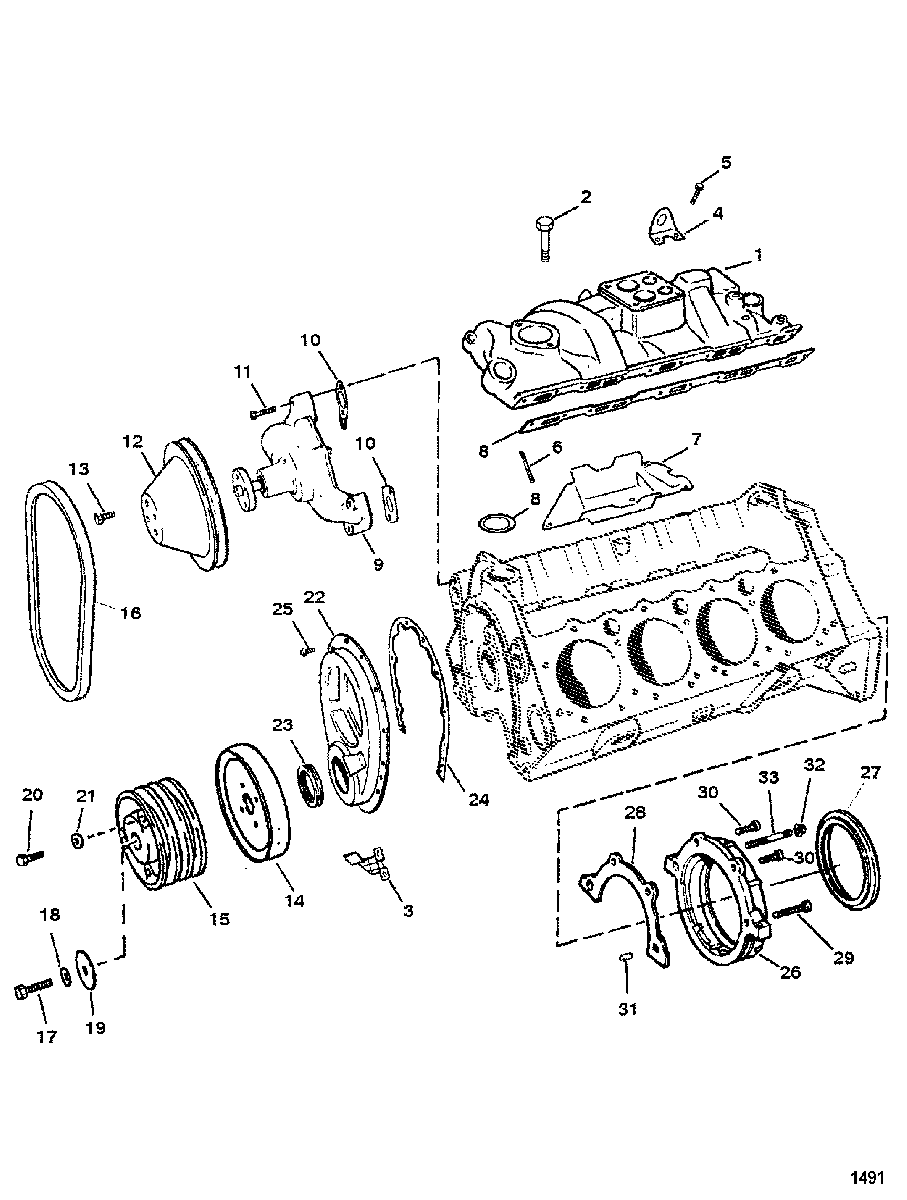

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7L MIE GM 350 V-8 1994-1995 0F025000 THRU 0F622099
-
№АртикулНазвание
-
117618T INTAKE MANIFOLDINTAKE MANIFOLD
-
210-806681 BOLTBOLT
-
210-802655 BOLTBOLT
-
375435A1 TIMING POINTERTIMING POINTER
-
454-47512 EYE-LIFTINGEYE-LIFTING
-
510-34354 SCREWSCREW
-
6NSS STUD (GM #3959544)STUD (GM #3959544)
-
772647 GUARDGUARD
-
827-17145 GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual)GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual) -
946-8M0113734 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
1027-34897 GASKETGASKET
-
1110-32132 SCREW (1-3/4")SCREW (1-3/4")
-
1110-47688 SCREW (2-3/4")SCREW (2-3/4")
-
1110-52200 SCREW (1-1/2")SCREW (1-1/2")
-
1219692T01 PULLEYPULLEY
-
1310-47277 SCREWSCREW
-
1475420 BALANCER-HARMONICBALANCER-HARMONIC
-
1590081A1 PULLEYPULLEY
-
1657-48120Q1 BELT (46")BELT (46")
-
1710-8M2021674 BOLT (2")BOLT (2")
-
1813-39131 LOCKWASHERLOCKWASHER
-
1912-35332001 WASHERWASHER
-
2010-53833 BOLTBOLT
-
2112-34714 WASHERWASHER
-
228M0127828 COVERCOVER
-
2326-97335 OIL SEALOIL SEAL
-
2427-14250 GASKETGASKET
-
2510-8M0040582 SCREWSCREW
-
2614239 RETAINER (REAR)
L.H. ROTATIONRETAINER (REAR)
L.H. ROTATION -
2726-8M0077606 OIL SEAL (REAR)
L.H. ROTATIONOIL SEAL (REAR)
L.H. ROTATION -
2615122 RETAINER (REAR)
R.H. ROTATIONRETAINER (REAR)
R.H. ROTATION -
2726-8M0062772 OIL SEAL (REAR)
R.H. ROTATIONOIL SEAL (REAR)
R.H. ROTATION -
2827-881715 GASKETGASKET
-
2910-8M0064241 BOLTBOLT
-
3010-14242 BOLTBOLT
-
3117-14263 DOWEL PINDOWEL PIN
-
3211-11996 NUTNUT
-
3316-14827 STUDSTUD
-
-27-75611A88 ENGINE OVERHAUL GASKET SETENGINE OVERHAUL GASKET SET
