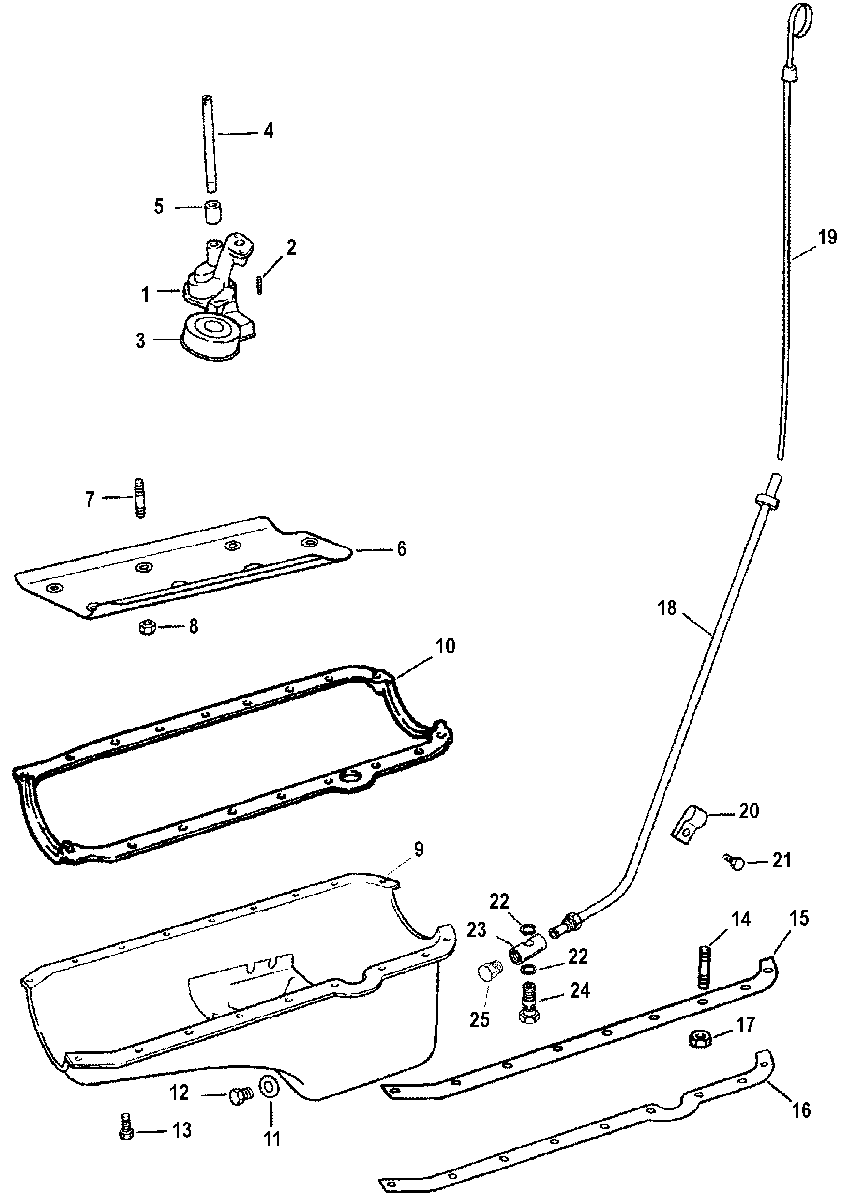

OIL PAN AND OIL PUMP для Mercruiser - 5.7L MIE GM 350 V-8 1994-1995 0F025000 THRU 0F622099
-
№АртикулНазвание
-
117617 OIL PUMP (5/8" I.D. SCREEN HOLE)OIL PUMP (5/8" I.D. SCREEN HOLE)
-
1809907002 OIL PUMP (3/4" I.D. SCREEN HOLE)OIL PUMP (3/4" I.D. SCREEN HOLE)
-
210-17346 BOLTBOLT
-
335354 SCREEN (5/8" O.D. SCREEN PIPE)SCREEN (5/8" O.D. SCREEN PIPE)
-
3809909 SCREEN (3/4" O.D. SCREEN PIPE)SCREEN (3/4" O.D. SCREEN PIPE)
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 BAFFLE (CYLINDER BLOCK)BAFFLE (CYLINDER BLOCK)
-
716-54790 STUDSTUD
-
811-37500 NUTNUT
-
9805930A1 OIL PANOIL PAN
-
1027-138651 GASKETGASKET
-
1127-8M0077608 GASKETGASKET
-
1210-49956 SCREWSCREW
-
1310-14070 SCREWSCREW
-
1416-11989 STUDSTUD
-
1514257 REINFORCEMENT (PORT)REINFORCEMENT (PORT)
-
1614256 REINFORCEMENT (STARBOARD)REINFORCEMENT (STARBOARD)
-
1711-11971 NUTNUT
-
18805384T TUBETUBE
-
19861942T2 DIPSTICK GAUGE (INLINE)DIPSTICK GAUGE (INLINE)
-
19861942T3 DIPSTICK GAUGE (V-DRIVE)DIPSTICK GAUGE (V-DRIVE)
-
2054-8054441 CLIPCLIP
-
2110-8M0040582 SCREWSCREW
-
2227-8M0077608 GASKETGASKET
-
23821504 BANJO FITTINGBANJO FITTING
-
2410-805498 BOLT (1/2-20 THREADS)BOLT (1/2-20 THREADS)
-
24807497 BOLT (12MM THREADS)BOLT (12MM THREADS)
-
2522-60485 PLUGPLUG
-
-27-75611A88 ENGINE OVERHAUL GASKET SETENGINE OVERHAUL GASKET SET
