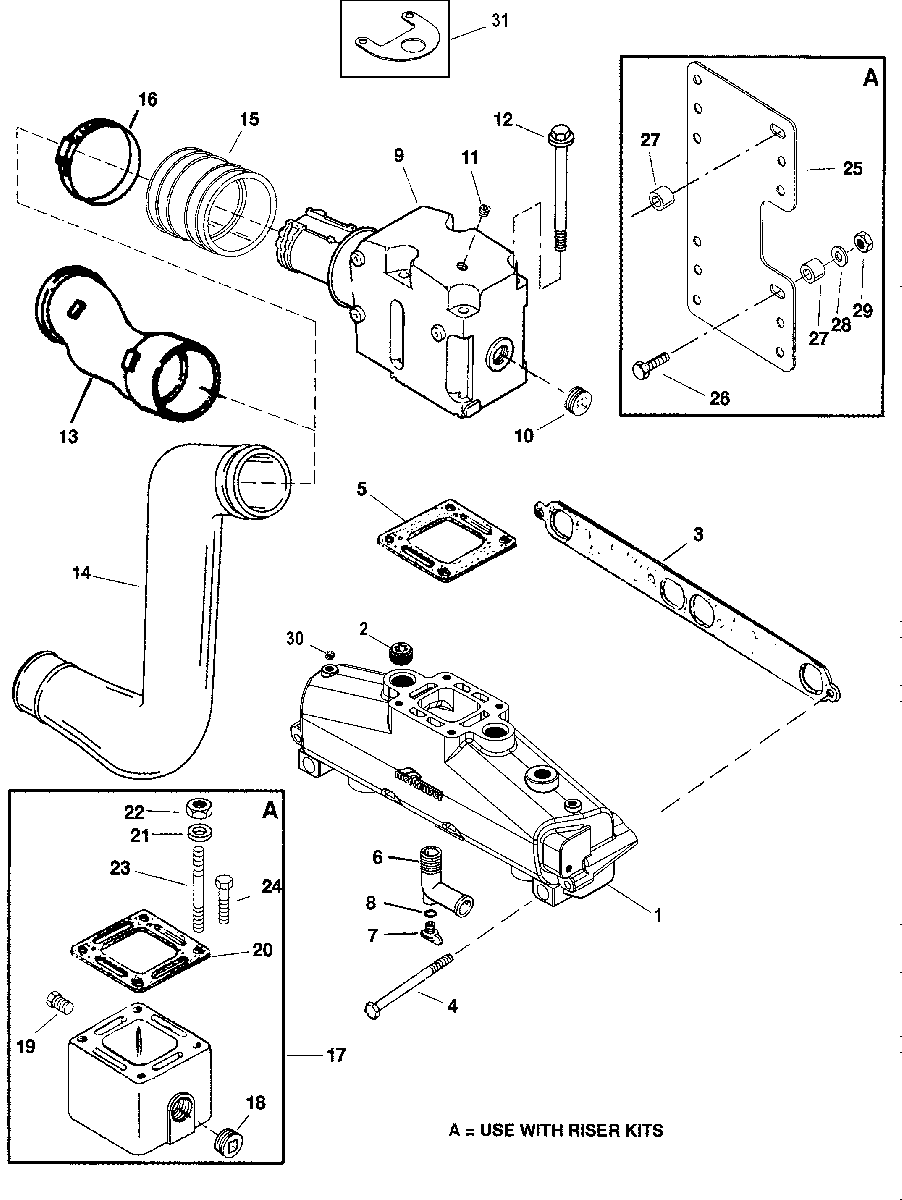

EXHAUST MANIFOLD & EXHAUST ELBOW для Mercruiser - BLACK SCORPION MX 6.2L SKI (GEN+) V-8 2001-2002 0L670015 THRU 0M391599
-
№АртикулНазвание
-
1860246A15 MANIFOLD ASSEMBLY-EXHAUSTMANIFOLD ASSEMBLY-EXHAUST
-
222-428611 PLUG-PIPE (3/4-14)PLUG-PIPE (3/4-14)
-
327-33395 GASKETGASKET
-
410-53728 SCREW (3/8-16 X 4-5/8 IN.)SCREW (3/8-16 X 4-5/8 IN.)
-
527-863724 GASKETGASKET
-
622-862210A01 ELBOW-DRAINELBOW-DRAIN
-
722-8M0119211 PLUG-DRAINPLUG-DRAIN
-
825-62706 QUAD RINGQUAD RING
-
9807988A03 ELBOW ASSEMBLY-EXHAUSTELBOW ASSEMBLY-EXHAUST
-
1022-428611 PLUG-PIPE (3/4-14)PLUG-PIPE (3/4-14)
-
1122-73379 PLUG-PIPE (1/4-18)
(COMPONENT OF 807988A2 ELBOW)PLUG-PIPE (1/4-18)
(COMPONENT OF 807988A2 ELBOW) -
1210-43749 SCREW (3/8-16 X 5-3/4 IN.)
(350)SCREW (3/8-16 X 5-3/4 IN.)
(350) -
1210-43749 SCREW (3/8-16 X 5-3/4 IN.)
(6.2L)SCREW (3/8-16 X 5-3/4 IN.)
(6.2L) -
1210-44387 SCREW (3/8-16 X 6-3/4)
(6.2L)SCREW (3/8-16 X 6-3/4)
(6.2L) -
13807153T PIPE-EXHAUST
(STANDARD)PIPE-EXHAUST
(STANDARD) -
14807611T PIPE-EXHAUST
(OPTIONAL)PIPE-EXHAUST
(OPTIONAL) -
1532-44348001 TUBE-EXHAUSTTUBE-EXHAUST
-
1654-815504272 CLAMPCLAMP
-
1793320A13 RISER EXTENSION KIT (3,)
(EACH KIT CONTAINS 2 RISERS)RISER EXTENSION KIT (3,)
(EACH KIT CONTAINS 2 RISERS) -
1793322A12 RISER EXTENSION KIT (6,)
(EACH KIT CONTAINS 2 RISERS)RISER EXTENSION KIT (6,)
(EACH KIT CONTAINS 2 RISERS) -
1822-416223 PLUG-PIPE (3/4-14)PLUG-PIPE (3/4-14)
-
1922-328022 PLUG-PIPE (1/8-27)PLUG-PIPE (1/8-27)
-
2027-863726 GASKETGASKET
-
2112-46132 WASHER
(USE WITH 3 IN. RISER)WASHER
(USE WITH 3 IN. RISER) -
2211-46335 NUT (3/8-24)
(USE WITH 3 IN. RISER)NUT (3/8-24)
(USE WITH 3 IN. RISER) -
2316-8M0022137 STUD (3/8 X 9-3/8 IN.)
(USE WITH 3 IN. RISER)STUD (3/8 X 9-3/8 IN.)
(USE WITH 3 IN. RISER) -
2410-865982005 SCREW (3/8-16 X 1 IN.)
(USE WITH 6 IN. RISER)SCREW (3/8-16 X 1 IN.)
(USE WITH 6 IN. RISER) -
25818598T BRACKET-RISER
(USE WITH 6 IN. RISER)BRACKET-RISER
(USE WITH 6 IN. RISER) -
2610-76596 SCREW (1/4-20 X 1-1/4 IN.)
(USE WITH 6 IN. RISER)SCREW (1/4-20 X 1-1/4 IN.)
(USE WITH 6 IN. RISER) -
2723-806981 SPACER
(USE WITH 6 IN. RISER)SPACER
(USE WITH 6 IN. RISER) -
2812-35462 WASHER
(USE WITH 6 IN. RISER)WASHER
(USE WITH 6 IN. RISER) -
2911-64015 NUT (1/4-20)
(USE WITH 6 IN. RISER)NUT (1/4-20)
(USE WITH 6 IN. RISER) -
3022-384071 PIPE PLUG (1/2-14)PIPE PLUG (1/2-14)
-
31861242 BRACKET
(6.2L)BRACKET
(6.2L) -
-27-807670A96 GASKET SET-ENGINE OVERHAULGASKET SET-ENGINE OVERHAUL
