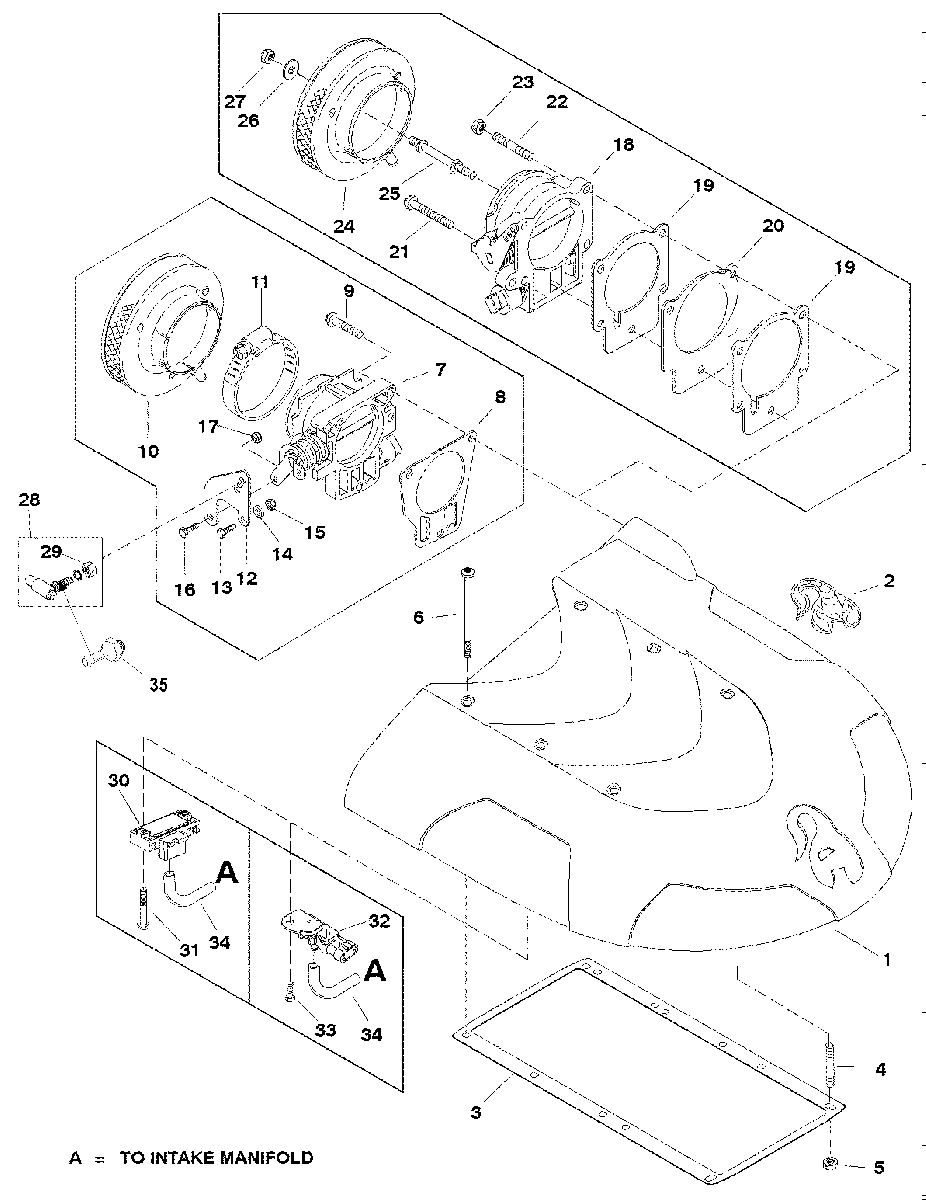

INTAKE PLENUM AND FLAME ARRESTOR для Mercruiser - BLACK SCORPION MX 6.2L SKI (GEN+) V-8 2001-2002 0L670015 THRU 0M391599
-
№АртикулНазвание
-
1861334A2 PLENUM ASSEMBLY-INTAKEPLENUM ASSEMBLY-INTAKE
-
2807895 EMBLEMEMBLEM
-
327-807670 GASKETGASKET
-
416-728091 STUD (1/4 X 1-5/8 IN)STUD (1/4 X 1-5/8 IN)
-
511-807082 NUT (1/4-28)NUT (1/4-28)
-
610-806953 BOLT (1/4-20 X 2-3/4 IN.)BOLT (1/4-20 X 2-3/4 IN.)
-
7861536A1 THROTTLE BODY ASSY.-75 MMTHROTTLE BODY ASSY.-75 MM
-
NS803149 VALVE-IAC
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)VALVE-IAC
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
NS8M0097035 SENSOR-TPS
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)SENSOR-TPS
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
NS10-853680 SCREW KIT
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)SCREW KIT
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
827-807672 GASKET
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)GASKET
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
910-807054 BOLT (1/4-20 X 1 IN.)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)BOLT (1/4-20 X 1 IN.)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
10807674T FLAME ARRESTOR
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)FLAME ARRESTOR
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
1154-815504256 CLAMP
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)CLAMP
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
12807720T BRACKET
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)BRACKET
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
1310-22476 SCREW (1/4-28 X 7/8 IN.)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)SCREW (1/4-28 X 7/8 IN.)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
1423-12706 SPACER
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)SPACER
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
1511-8267089 NUT (1/4-28)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)NUT (1/4-28)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
1610-54630 SCREW (5/16-24 X 5/8 IN.)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)SCREW (5/16-24 X 5/8 IN.)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
1711-82670911 NUT (5/16-24)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1)NUT (5/16-24)
(S/N 0K040001 thru 0L005600 Use With Rochestor Throttle Body 807671A1 & 861536A1) -
18861484A1 THROTTLE BODY ASSEMBLY-90MM
(S/N 0L005601 AND UP)THROTTLE BODY ASSEMBLY-90MM
(S/N 0L005601 AND UP) -
NS803149 VALVE-IAC
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)VALVE-IAC
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
NS803148 SENSOR-TPS
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)SENSOR-TPS
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
NS10-803150 SCREW-TPS
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)SCREW-TPS
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
NS10-803151 SCREW-IAC
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)SCREW-IAC
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
NS26-803152 SEAL-TPS
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)SEAL-TPS
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
1927-861449 GASKET
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)GASKET
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
20861450 PLATE-ADAPTOR
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)PLATE-ADAPTOR
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
2110-861581 SCREW (1/4-20)
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)SCREW (1/4-20)
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
2216-728091 STUD (1/4-28 X 1-5/8 IN.)
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)STUD (1/4-28 X 1-5/8 IN.)
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
2311-8267089 NUT (1/4-28)
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)NUT (1/4-28)
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
24861444 FLAME ARRESTOR
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)FLAME ARRESTOR
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
2516-8M0113181 STUD-FLAME ARRESTOR
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)STUD-FLAME ARRESTOR
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
2612-86400 WASHER
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)WASHER
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
2711-8267139 NUT (1/4-28)
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1)NUT (1/4-28)
(S/N 0L005601 & Up - Use With Weber Throttle Body 861484A1) -
28807484 BALL JOINT KITBALL JOINT KIT
-
2911-8267139 NUT (1/4-28)NUT (1/4-28)
-
30864856A1 MAP SENSOR
(S/N 0L002699 and Below) - Use With Weber Throttle Body 861484A1)MAP SENSOR
(S/N 0L002699 and Below) - Use With Weber Throttle Body 861484A1) -
3110-807120 SCREW (#10-24 X 1 IN.)
(S/N 0L002699 and Below) - Use With Weber Throttle Body 861484A1)SCREW (#10-24 X 1 IN.)
(S/N 0L002699 and Below) - Use With Weber Throttle Body 861484A1) -
32861425 MAP SENSOR
(S/N 0L002700 & Up)MAP SENSOR
(S/N 0L002700 & Up) -
3310-847401 SCREW (#10-24 X 3/8 IN.)
(S/N 0L002700 & Up)SCREW (#10-24 X 3/8 IN.)
(S/N 0L002700 & Up) -
3432-8M0040618 TUBING (Cut to 9-1/2 IN.)TUBING (Cut to 9-1/2 IN.)
-
3516-862237 STUDSTUD
-
-27-807670A96 GASKET SET - ENGINE OVERHAULGASKET SET - ENGINE OVERHAUL
