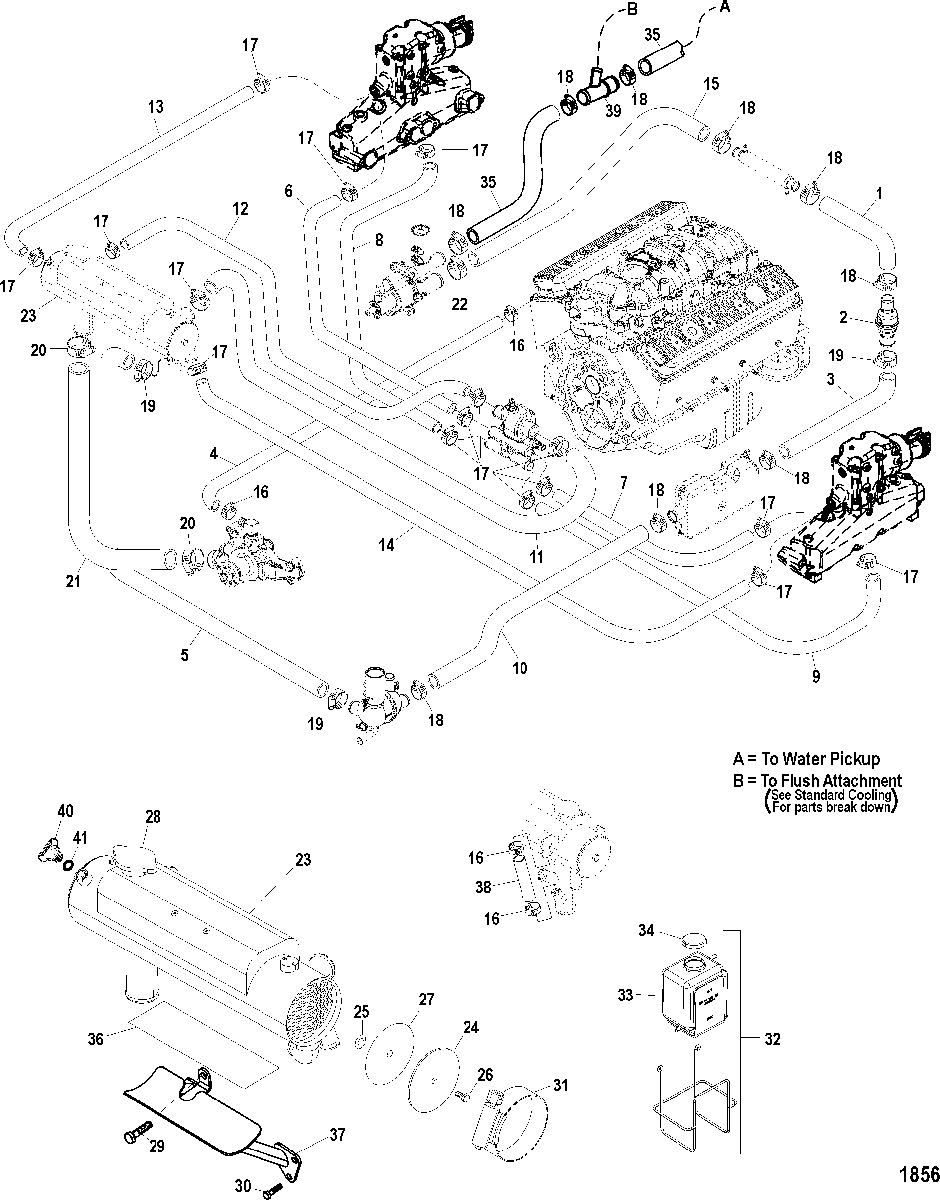

CLOSED COOLING SYSTEM для Mercruiser - MX 6.2L MPI MIE 0M317000 THRU 0M398394
-
№АртикулНазвание
-
132-863489 HOSE, Tansmission Cooler to Check ValveHOSE, Tansmission Cooler to Check Valve
-
221-864206A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
332-863623 HOSE, Check Valve to Fuel CoolerHOSE, Check Valve to Fuel Cooler
-
432-864551 HOSE, Intake Bypass to Circulating PumpHOSE, Intake Bypass to Circulating Pump
-
532-864431 HOSE, Distribution Fitting to Heat ExchangerHOSE, Distribution Fitting to Heat Exchanger
-
632-864539 HOSE, Thermostat Housing to Upper Manifold
(Starboard)(With and Without Risers) SN# 0M389999 & BelowHOSE, Thermostat Housing to Upper Manifold
(Starboard)(With and Without Risers) SN# 0M389999 & Below -
632-864539 HOSE, Thermostat Housing to Upper Manifold
(Starboard)(Without Risers) SN# 0M390000 & UpHOSE, Thermostat Housing to Upper Manifold
(Starboard)(Without Risers) SN# 0M390000 & Up -
632-864956 HOSE, Thermostat Housing to Upper Manifold
(Starboard)(With Risers) SN# 0M390000 & UpHOSE, Thermostat Housing to Upper Manifold
(Starboard)(With Risers) SN# 0M390000 & Up -
732-864552 HOSE, Thermostat Housing to Upper Manifold
(Port)(With and Without Risers) SN# 0M389999 & BelowHOSE, Thermostat Housing to Upper Manifold
(Port)(With and Without Risers) SN# 0M389999 & Below -
732-864552 HOSE, Thermostat Housing to Upper Manifold
(Port)(Without Risers) SN# 0M390000 & UpHOSE, Thermostat Housing to Upper Manifold
(Port)(Without Risers) SN# 0M390000 & Up -
732-864954 HOSE, Thermostat Housing to Upper Manifold
(Port)(With Risers) SN# 0M390000 & UpHOSE, Thermostat Housing to Upper Manifold
(Port)(With Risers) SN# 0M390000 & Up -
832-864509 HOSEHOSE
-
932-864508 HOSE, Port Manifold DrainHOSE, Port Manifold Drain
-
1032-863670 HOSE, Fuel Cooler to Accumulator HousingHOSE, Fuel Cooler to Accumulator Housing
-
1132-864506 HOSE, Heat Exchanger to Thermostat HousingHOSE, Heat Exchanger to Thermostat Housing
-
1232-864507 HOSE, Heat Exchanger to Thermostat HousingHOSE, Heat Exchanger to Thermostat Housing
-
13864542 HOSE, Heat Exchanger to Starboard Elbow
(INLINE)(With and Without Risers) SN# 0M389999 & BelowHOSE, Heat Exchanger to Starboard Elbow
(INLINE)(With and Without Risers) SN# 0M389999 & Below -
13864542 HOSE, Heat Exchanger to Starboard Elbow
(INLINE)(3 In. Risers and No Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Starboard Elbow
(INLINE)(3 In. Risers and No Risers) SN# 0M390000 & Up -
1332-864955 HOSE, Heat Exchanger to Starboard Elbow
(INLINE)(6 In. Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Starboard Elbow
(INLINE)(6 In. Risers) SN# 0M390000 & Up -
1332-864544 HOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(Without Risers) SN# 0M389999 & BelowHOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(Without Risers) SN# 0M389999 & Below -
13864542 HOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(With Risers) SN# 0M389999 & BelowHOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(With Risers) SN# 0M389999 & Below -
1332-864544 HOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(Without Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(Without Risers) SN# 0M390000 & Up -
1332-864544 HOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(3 In. Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(3 In. Risers) SN# 0M390000 & Up -
1332-864974 HOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(6 In. Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Starboard Elbow
(V-DRIVE)(6 In. Risers) SN# 0M390000 & Up -
1432-864726 HOSE, Heat Exchanger to Port Elbow
(INLINE)(With and Without Risers) SN# 0M389999 & BelowHOSE, Heat Exchanger to Port Elbow
(INLINE)(With and Without Risers) SN# 0M389999 & Below -
1432-864726 HOSE, Heat Exchanger to Port Elbow
(INLINE)(3 In. Risers and No Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Port Elbow
(INLINE)(3 In. Risers and No Risers) SN# 0M390000 & Up -
1432-864953 HOSE, Heat Exchanger to Port Elbow
(INLINE)(6 In. Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Port Elbow
(INLINE)(6 In. Risers) SN# 0M390000 & Up -
1432-864543 HOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(Without Risers) SN# 0M389999 & BelowHOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(Without Risers) SN# 0M389999 & Below -
1432-864726 HOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(With Risers) SN# 0M389999 & BelowHOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(With Risers) SN# 0M389999 & Below -
1432-864543 HOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(Without Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(Without Risers) SN# 0M390000 & Up -
1432-864543 HOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(3 In. Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(3 In. Risers) SN# 0M390000 & Up -
1432-864973 HOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(6 In. Risers) SN# 0M390000 & UpHOSE, Heat Exchanger to Port Elbow
(V-DRIVE)(6 In. Risers) SN# 0M390000 & Up -
1532-863611 HOSE, Sea Pump to Trans CoolerHOSE, Sea Pump to Trans Cooler
-
1654-815504212 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
1754-815504216 CLAMP, Worm Gear (1.56 Diameter), HoseCLAMP, Worm Gear (1.56 Diameter), Hose
-
1854-815504222 CLAMP, Worm Gear (1.98 DIameter), HoseCLAMP, Worm Gear (1.98 DIameter), Hose
-
1954-815504228 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
2054-815504232 CLAMP, Worm Gear (2.50 Diameter), HoseCLAMP, Worm Gear (2.50 Diameter), Hose
-
2132-864886 HOSE, Heat Exchanger to Circulating PumpHOSE, Heat Exchanger to Circulating Pump
-
2254-815504220 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
23864395T01 HEAT EXCHANGER, Closed CoolingHEAT EXCHANGER, Closed Cooling
-
24864708 COVER, End, Heat ExchangerCOVER, End, Heat Exchanger
-
2525-818679 O-RINGO-RING
-
2610-94247 SCREW, (.375-16 x .750) Stainless SteelSCREW, (.375-16 x .750) Stainless Steel
-
2725-8M0084884 SEAL, End CoverSEAL, End Cover
-
2836-8148791 CAP, PressureCAP, Pressure
-
2910-805559 SCREW, (.375-16 x .875) Stainless SteelSCREW, (.375-16 x .875) Stainless Steel
-
3010-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3154-815504396 CLAMP, Worm Gear, Heat ExchangerCLAMP, Worm Gear, Heat Exchanger
-
3271587A10 RECOVERY KIT, CoolantRECOVERY KIT, Coolant
-
NS32-774572 HOSE, (48.00 Inches Bulk)HOSE, (48.00 Inches Bulk)
-
3371587A11 BOTTLE, Plastic, Coolant Recovery KitBOTTLE, Plastic, Coolant Recovery Kit
-
3472058 CAP, Coolant Recovery BottleCAP, Coolant Recovery Bottle
-
3532-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick UPHOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick UP
-
3618431 PAD, Heat ExchangerPAD, Heat Exchanger
-
37864429T BRACKET, CoolerBRACKET, Cooler
-
3832-864533 HOSEHOSE
-
3922-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, DrainFITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Drain
-
4022-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
4125-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
NS19-8M0074364 COVER, Hose Clamp EndCOVER, Hose Clamp End
