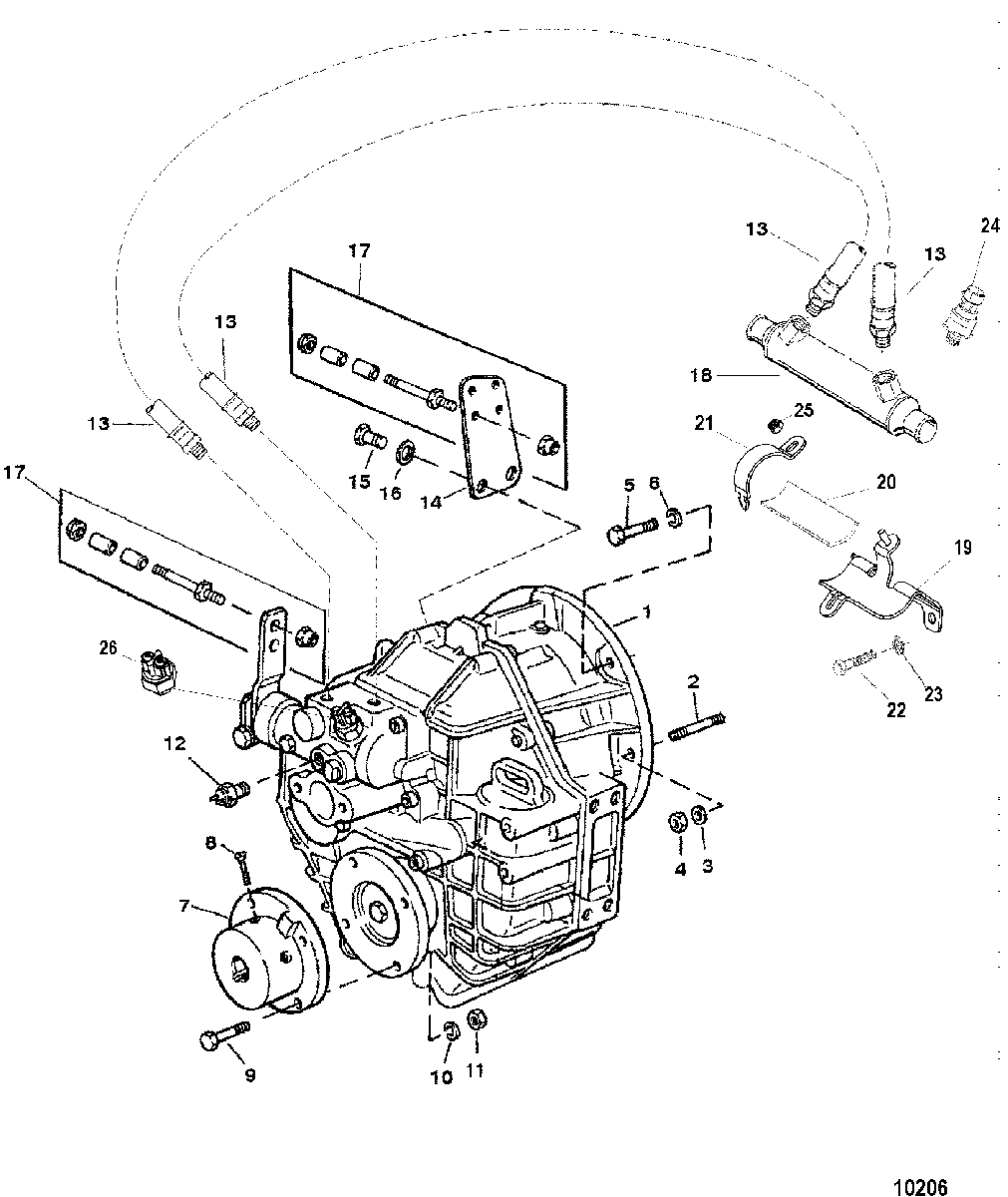

TRANSMISSION AND RELATED PARTS(HURTH 630) для Mercruiser - MX 6.2L MPI MIE 0M317000 THRU 0M398394

№

Артикул

Название
1

863744T2 TRANSMISSION, (1.5:1 Ratio)
Down Angle Transmission

TRANSMISSION, (1.5:1 Ratio)
Down Angle Transmission

389 490 ₽
1

863744T3 TRANSMISSION, (2.0:1 Ratio)
Down Angle Transmission

TRANSMISSION, (2.0:1 Ratio)
Down Angle Transmission

366 650 ₽
1

863744T4 TRANSMISSION, (2.50:1 Ratio)
Down Angle Transmission

TRANSMISSION, (2.50:1 Ratio)
Down Angle Transmission

389 480 ₽
1

863744T5 TRANSMISSION, (2.70:1 Ratio)
Down Angle Transmission

TRANSMISSION, (2.70:1 Ratio)
Down Angle Transmission

362 740 ₽
1

863745T2 TRANSMISSION, (1.5:1 Ratio)
V-Drive Transmission

TRANSMISSION, (1.5:1 Ratio)
V-Drive Transmission

471 780 ₽
1

863745T3 TRANSMISSION, (2.0:1 Ratio)
V-Drive Transmission

TRANSMISSION, (2.0:1 Ratio)
V-Drive Transmission

486 270 ₽
1

863745T4 TRANSMISSION, (2.5:1 Ratio)
V-Drive Transmission

TRANSMISSION, (2.5:1 Ratio)
V-Drive Transmission

447 990 ₽
2

16-805259 STUD

STUD

840 ₽
3

12-22248 WASHER, (.453 x .875 x .060)

WASHER, (.453 x .875 x .060)

130 ₽
4

11-82670815 NUT, (.437-20)

NUT, (.437-20)

170 ₽
5

10-47462 SCREW, (.437-14 x 1.250)

SCREW, (.437-14 x 1.250)

150 ₽
6

13-32993 LOCKWASHER, (.437)

LOCKWASHER, (.437)

120 ₽
7

87917A1 FLANGE ASSEMBLY, (4.00 x 1.00)

FLANGE ASSEMBLY, (4.00 x 1.00)

0 ₽
7

79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)

FLANGE ASSEMBLY, (5.00 x 1.00)

23 550 ₽
7

79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)

FLANGE ASSEMBLY, (5.00 x 1.125)

0 ₽
7

79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)

FLANGE ASSEMBLY, (5.00 x 1.25)

22 710 ₽
7

79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)

FLANGE ASSEMBLY, (5.00 x 1.375)

22 610 ₽
7

79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)

FLANGE ASSEMBLY, (5.00 x 1.50)

24 380 ₽
7

79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)

FLANGE ASSEMBLY, (5.00 x 1.75)

23 820 ₽
7

79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)

FLANGE ASSEMBLY, (5.00 x 2.00)

0 ₽
8

10-60171 SCREW, (.375-16 x 1.250), Flange

SCREW, (.375-16 x 1.250), Flange

840 ₽
8

10-60169 SCREW, (.375-16 x .750), Flange

SCREW, (.375-16 x .750), Flange

660 ₽
9

10-68101 SCREW, (.375-16 x 1.375)
(4 In. Flange)

SCREW, (.375-16 x 1.375)
(4 In. Flange)

170 ₽
9

10-805159 SCREW, (.437-20 x 1.500)
(5 In. Flange)

SCREW, (.437-20 x 1.500)
(5 In. Flange)

370 ₽
10

13-35048 LOCKWASHER, (.375)
(4 In. Flange)

LOCKWASHER, (.375)
(4 In. Flange)

120 ₽
10

13-32993 LOCKWASHER, (.437)
(5 In. Flange)

LOCKWASHER, (.437)
(5 In. Flange)

120 ₽
11

11-32219 NUT, (.375-16)
(4 In. Flange)

NUT, (.375-16)
(4 In. Flange)

180 ₽
11

11-22024 NUT, (.437-14)
(5 In. Flange)

NUT, (.437-14)
(5 In. Flange)

190 ₽
12

87-88031 SWITCH ASSEMBLY, Temperature

SWITCH ASSEMBLY, Temperature

9 480 ₽
13

32-8054781 HOSE, (19.50), Oil

HOSE, (19.50), Oil

5 440 ₽
14

806238 BRACKET, Shift Linkage

BRACKET, Shift Linkage

4 400 ₽
15

10-40001124 SCREW, (M8 x 14)

SCREW, (M8 x 14)

280 ₽
16

13-400247 LOCKWASHER, (M8)

LOCKWASHER, (M8)

150 ₽
17

16-97477A3 STUD KIT

STUD KIT

3 310 ₽
18

863832T01 COOLER, Oil

COOLER, Oil

45 530 ₽
19

863850 BRACKET, Transmission Oil Cooler

BRACKET, Transmission Oil Cooler

4 200 ₽
20

772233 PAD

PAD

350 ₽
21

807445T CLAMP

CLAMP

1 510 ₽
22

10-37612 SCREW, (.375-16 x 1.250)

SCREW, (.375-16 x 1.250)

170 ₽
23

13-35048 LOCKWASHER, (.375)

LOCKWASHER, (.375)

120 ₽
24

8M6000623 SENSOR, Pressure

SENSOR, Pressure

16 990 ₽
25

11-8267088 NUT, (.250-20)

NUT, (.250-20)

130 ₽
26

87-813300 SWITCH, Neutral Safety

SWITCH, Neutral Safety

11 760 ₽
