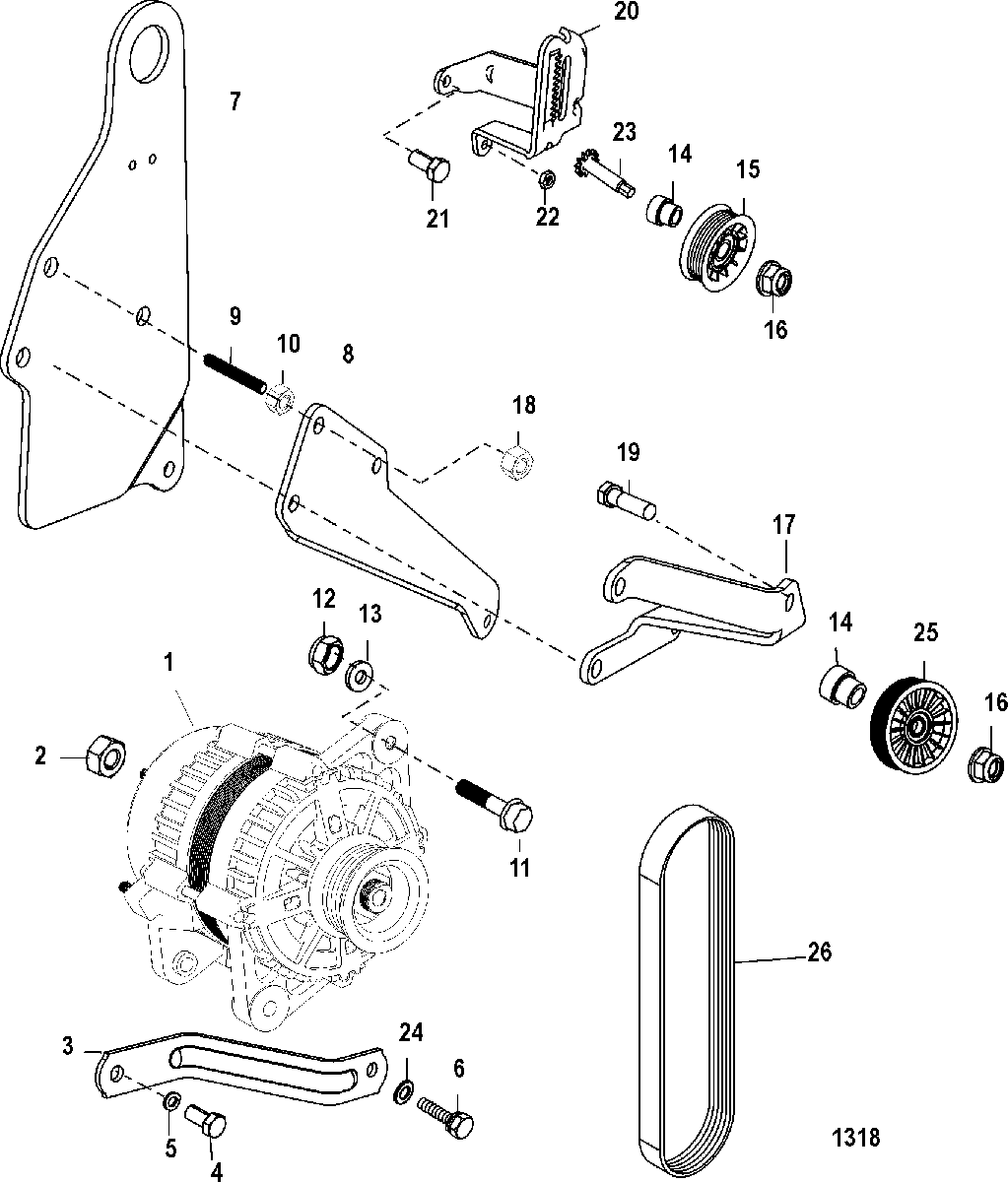

Alternator And Brackets для Mercruiser - SCORPION 377 0W698433 & Up
-
№АртикулНазвание
-
1863077T ALTERNATOR ASSEMBLY, Black (65 Amp) (50mm Pulley)
Service Complete AssemblyALTERNATOR ASSEMBLY, Black (65 Amp) (50mm Pulley)
Service Complete Assembly -
211-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3807750T BRACEBRACE
-
410-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
513-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
610-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
7862051T BRACKET, Alternator and Lifting EyeBRACKET, Alternator and Lifting Eye
-
8862058T BRACE, AlternatorBRACE, Alternator
-
916-862615 STUD, (.375-16 x 2.25)STUD, (.375-16 x 2.25)
-
1011-32219 NUT, (.375-16)NUT, (.375-16)
-
1110-828213 SCREW, (.312-18 x 1.500) Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange
-
1211-26484 NUT, (.312-18)NUT, (.312-18)
-
1312-57792 WASHERWASHER
-
14865193 BUSHINGBUSHING
-
15865444T PULLEY, (3.50 Inch Diameter)PULLEY, (3.50 Inch Diameter)
-
15807757T PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
-
1611-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
17807753T1 BRACKET, IdlerBRACKET, Idler
-
1811-32219 NUT, (.375-16)NUT, (.375-16)
-
1910-816601 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
20807767T BRACKET, Idler AdjustmentBRACKET, Idler Adjustment
-
2110-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
2211-29250 NUT, (.312-24)NUT, (.312-24)
-
2343-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
2412-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
25864625T PULLEY (4.25 Inch Diameter)PULLEY (4.25 Inch Diameter)
-
2657-865615Q05 BELT, SerpentineBELT, Serpentine
