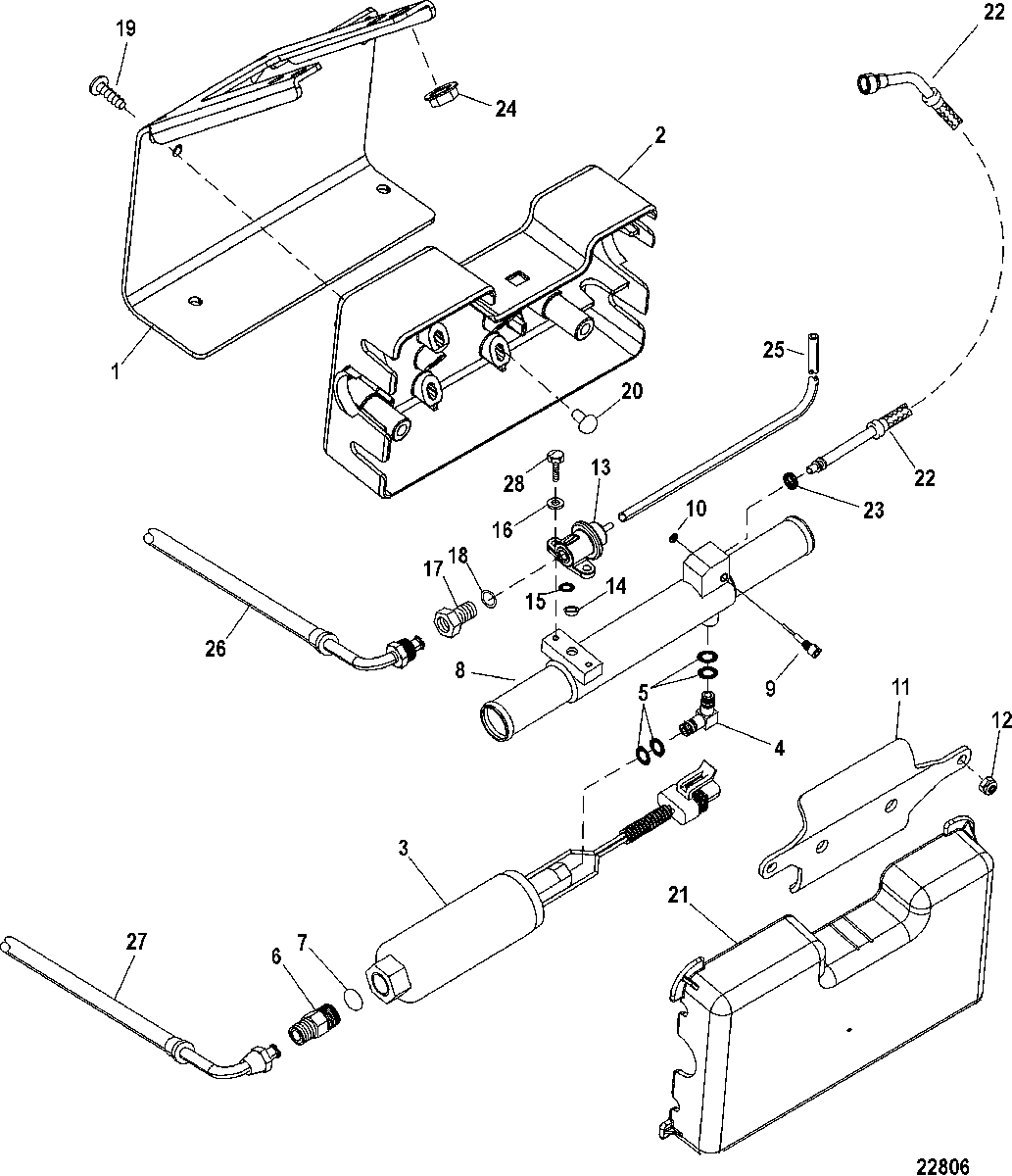

Fuel Pump And Fuel Cooler для Mercruiser - SCORPION 377 0W698433 & Up
-
№АртикулНазвание
-
1807951T BRACKET, Fuel CoolerBRACKET, Fuel Cooler
-
2807685T INSULATOR, BaseINSULATOR, Base
-
38M0125846 PUMP/COOLER KIT, Fuel
Contains Cooler 861267A 1PUMP/COOLER KIT, Fuel
Contains Cooler 861267A 1 -
422-807783A1 FITTING ASSEMBLY, 90 DegreeFITTING ASSEMBLY, 90 Degree
-
525-805063 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
622-808001A1 FITTING ASSEMBLYFITTING ASSEMBLY
-
725-805062 O-RING, (.530 x .082)O-RING, (.530 x .082)
-
88M0125847 COOLER KIT, FuelCOOLER KIT, Fuel
-
910-866114 SCREW, (.250-28) SpecialSCREW, (.250-28) Special
-
1053-861414 RING, RetainingRING, Retaining
-
11807979T BRACKETBRACKET
-
1211-29598 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
13807952A1 REGULATOR KIT, Fuel PressureREGULATOR KIT, Fuel Pressure
-
1435-805406 FILTERFILTER
-
1525-805531 O-RING, (.476 x .075)O-RING, (.476 x .075)
-
1612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1722-808002A1 FITTING KITFITTING KIT
-
1812-36533 WASHER, (.328 x .562 x .0312) CopperWASHER, (.328 x .562 x .0312) Copper
-
1910-808005 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
20269011 BUMPER, RubberBUMPER, Rubber
-
21807930T01 INSULATOR, CoverINSULATOR, Cover
-
2232-862617A02 LINE ASSEMBLY, Fuel, Fuel Cooler to Fuel Rail
Manual Drain (350) SN# 1A091517 & BelowLINE ASSEMBLY, Fuel, Fuel Cooler to Fuel Rail
Manual Drain (350) SN# 1A091517 & Below -
2232-862617A03 LINE ASSEMBLY, Fuel, Fuel Cooler to Fuel Rail
Manual Drain (350) SN# 1A091518 & UpLINE ASSEMBLY, Fuel, Fuel Cooler to Fuel Rail
Manual Drain (350) SN# 1A091518 & Up -
2232-8M2000518 LINE, Fuel, Fuel Cooler to Fuel Rail
Air Actuated Drain (350) SN# 1A091517 & BelowLINE, Fuel, Fuel Cooler to Fuel Rail
Air Actuated Drain (350) SN# 1A091517 & Below -
2232-8M2013942 LINE, Fuel, Fuel Cooler to Fuel Rail
350/377 SN# 1A091518 & UpLINE, Fuel, Fuel Cooler to Fuel Rail
350/377 SN# 1A091518 & Up -
2326-863151 SEAL, Quad RingSEAL, Quad Ring
-
2411-860069 NUT, (.375-16)NUT, (.375-16)
-
2532-8M0063567 HOSE, (58.00 Inches Bulk), Fuel Pressure Regulator to Intake Manifold
Cut to LengthHOSE, (58.00 Inches Bulk), Fuel Pressure Regulator to Intake Manifold
Cut to Length -
2632-8M0046750 LINE, Fuel, Fuel Pressure Regulator to Fuel FilterLINE, Fuel, Fuel Pressure Regulator to Fuel Filter
-
2732-8M0046684 LINE, Fuel, Fuel Filter to Fuel PumpLINE, Fuel, Fuel Filter to Fuel Pump
-
2810-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
