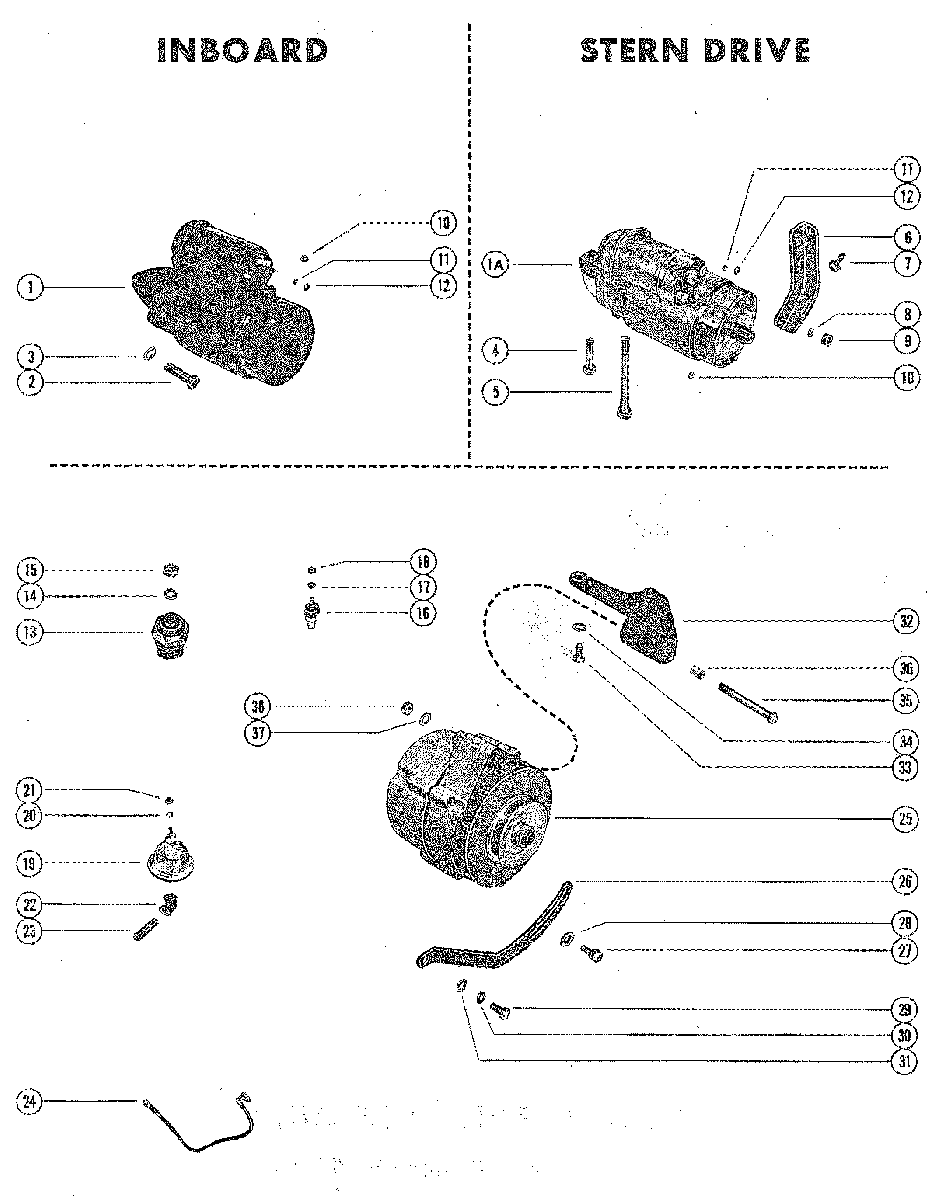

STARTER MOTOR AND ALTERNATOR для Mercruiser - 225 (2 BBL.) GM 327 V-8 1967-1969 2278647 THRU 2694014
-
№АртикулНазвание
-
150-808011A05 STARTER MOTOR ASS'Y (STANDARD ROTATION)
SEE NOTE BELOW-INBOARDSTARTER MOTOR ASS'Y (STANDARD ROTATION)
SEE NOTE BELOW-INBOARD -
150-97499R3 STARTER MOTOR ASS'Y (OPPOSITE ROTATION)
SEE NOTE BELOW-INBOARDSTARTER MOTOR ASS'Y (OPPOSITE ROTATION)
SEE NOTE BELOW-INBOARD -
210-47462 SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")
INBOARDSCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")
INBOARD -
313-32993 LOCKWASHER, STARTER MOTOR SCREW
INBOARDLOCKWASHER, STARTER MOTOR SCREW
INBOARD -
1A50-46277 STARTER MOTOR ASSEMBLY (SEE NOTE BELOW)
STERN DRIVESTARTER MOTOR ASSEMBLY (SEE NOTE BELOW)
STERN DRIVE -
410-8053433 BOLT, STARTER MOTOR TO CYLINDER BLOCK (1 27/32")
STERN DRIVEBOLT, STARTER MOTOR TO CYLINDER BLOCK (1 27/32")
STERN DRIVE -
510-94435001 BOLT, STARTER MOTOR TO CYLINDER BLOCK (4 21/32")
STERN DRIVEBOLT, STARTER MOTOR TO CYLINDER BLOCK (4 21/32")
STERN DRIVE -
635363 BRACE, STARTER MOTOR
STERN DRIVEBRACE, STARTER MOTOR
STERN DRIVE -
710-35765A1 SCREW, BRACE TO CYLINDER BLOCK (5/8")
STERN DRIVESCREW, BRACE TO CYLINDER BLOCK (5/8")
STERN DRIVE -
813-35367 LOCKWASHER, BRACE TO STARTER MOTOR TERMINAL
STERN DRIVELOCKWASHER, BRACE TO STARTER MOTOR TERMINAL
STERN DRIVE -
911-20890 NUT, BRACE TO STARTER MOTOR TERMINAL
STERN DRIVENUT, BRACE TO STARTER MOTOR TERMINAL
STERN DRIVE -
1011-32219 NUT, STARTER TERMINAL (3/8")NUT, STARTER TERMINAL (3/8")
-
1113-26995 LOCKWASHER, STARTER TERMINAL (#8)LOCKWASHER, STARTER TERMINAL (#8)
-
1211-26419 NUT, STARTER TERMINAL (#8)NUT, STARTER TERMINAL (#8)
-
1397258A1 WATER TEMPERATURE SENDER ASSEMBLY (AUTOMATIC CHOKE)WATER TEMPERATURE SENDER ASSEMBLY (AUTOMATIC CHOKE)
-
13806490T WATER TEMPERATURE SENDER ASSEMBLY (ELECTRIC CHOKE)WATER TEMPERATURE SENDER ASSEMBLY (ELECTRIC CHOKE)
-
1413-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
-
1511-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
-
1652676 SWITCH, ELECTRIC CHOKESWITCH, ELECTRIC CHOKE
-
1713-26996 LOCKWASHER, CHOKE SWITCH TERMINALLOCKWASHER, CHOKE SWITCH TERMINAL
-
1811-68219 NUT, CHOKE SWITCH TERMINALNUT, CHOKE SWITCH TERMINAL
-
198M0068784 OIL PRESSURE SENDER ASSEMBLYOIL PRESSURE SENDER ASSEMBLY
-
2013-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
-
2111-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)NUT, OIL PRESSURE SENDER TERMINAL (#10)
-
2222-46932 ELBOW, OIL PRESSURE SENDER (45 DEGREES)ELBOW, OIL PRESSURE SENDER (45 DEGREES)
-
2322-38992 NIPPLE, OIL PRESSURE SENDERNIPPLE, OIL PRESSURE SENDER
-
2445107 BATTERY CABLE (NEGATIVE) STERN DRIVEBATTERY CABLE (NEGATIVE) STERN DRIVE
-
2445108 BATTERY CABLE (POSITIVE)BATTERY CABLE (POSITIVE)
-
2547456A1 ALTERNATOR ASSEMBLY (SEE NOTE BELOW)ALTERNATOR ASSEMBLY (SEE NOTE BELOW)
-
2685013T BRACE, ALTERNATOR ADJUSTINGBRACE, ALTERNATOR ADJUSTING
-
2710-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
-
2812-26168 WASHER, ALTERNATOR BRACE SCREWWASHER, ALTERNATOR BRACE SCREW
-
2910-98261 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")
-
3013-35048 LOCKWASHER, ALTERNATOR BRACE SCREWLOCKWASHER, ALTERNATOR BRACE SCREW
-
3112-20553 WASHER, ALTERNATOR BRACE SCREWWASHER, ALTERNATOR BRACE SCREW
-
3247620 BRACKET, ALTERNATOR MOUNTING
SERIAL 02278647-02399397BRACKET, ALTERNATOR MOUNTING
SERIAL 02278647-02399397 -
3148104A1 BRAAKET, ALTERNATOR MOUNTING
SERIAL 02399398-09999999BRAAKET, ALTERNATOR MOUNTING
SERIAL 02399398-09999999 -
3310-21077 SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")
-
3413-35048 LOCKWASHER, ALTERNATOR BRACKET SCREWLOCKWASHER, ALTERNATOR BRACKET SCREW
-
3510-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
-
3623-33186 BUSHING, ALTERNATOR BRACKET SCREWBUSHING, ALTERNATOR BRACKET SCREW
-
3712-20553 WASHER, ALTERNATOR BRACKET SCREWWASHER, ALTERNATOR BRACKET SCREW
-
3811-23161 NUT, ALTERNATOR BRACKET SCREWNUT, ALTERNATOR BRACKET SCREW
