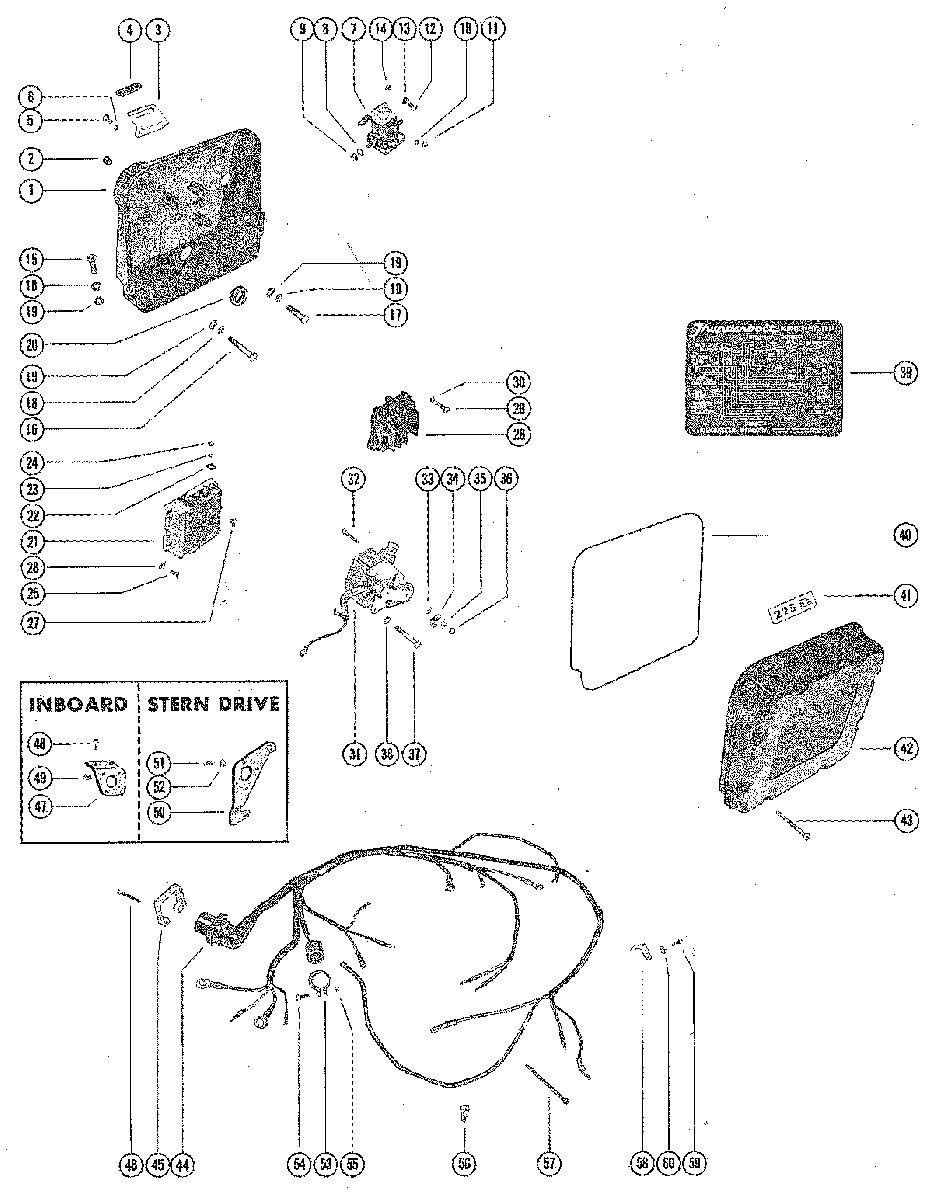

WIRING HARNESS, SWITCH BOX AND IGNITION COIL для Mercruiser - 225 (2 BBL.) GM 327 V-8 1967-1969 2278647 THRU 2694014
-
№АртикулНазвание
-
156717 PANEL , ELECTRICPANEL , ELECTRIC
-
222-328022 PLUG, PIPE - ELECTRIC PANEL (1/8-27)PLUG, PIPE - ELECTRIC PANEL (1/8-27)
-
210-36737 PLUG, PIPE - ELECTRIC PANEL (3/8-18)PLUG, PIPE - ELECTRIC PANEL (3/8-18)
-
347763 BRACKET, RETAINER - HIGH TENSION LEADSBRACKET, RETAINER - HIGH TENSION LEADS
-
425-38930 GROMMET, HIGH TENSION LEADS (RETAINER BRACKETS)GROMMET, HIGH TENSION LEADS (RETAINER BRACKETS)
-
510-98256 SCREW, RETAINER BRACKET TO ELECTRIC PANEL (1/2")SCREW, RETAINER BRACKET TO ELECTRIC PANEL (1/2")
-
613-26992 LOCKWASHER, RETAINER BRACKET SCREWLOCKWASHER, RETAINER BRACKET SCREW
-
725661T1 STARTER SOLENOIDSTARTER SOLENOID
-
813-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
-
911-22053 NUT, STARTER SOLENOID TERMINAL (5/16-24)NUT, STARTER SOLENOID TERMINAL (5/16-24)
-
946265 BOOT, STARTER MOTOR TERMINALBOOT, STARTER MOTOR TERMINAL
-
1013-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
1111-68219 NUT, STARTER SOLENOID TERMINAL (10-32)NUT, STARTER SOLENOID TERMINAL (10-32)
-
1210-96138 SCREW, STARTER SOLENOID TO ELECTRIC PANEL (1/2")SCREW, STARTER SOLENOID TO ELECTRIC PANEL (1/2")
-
1313-26992 LOCKWASHER, STARTER SOLENOID SCREWLOCKWASHER, STARTER SOLENOID SCREW
-
1254-21623 SCREW, STARTER SOLENOID ATTACHING (3/4")SCREW, STARTER SOLENOID ATTACHING (3/4")
-
1411-24652 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
-
1510-37612 SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (1 1/4")SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (1 1/4")
-
1610-35787 SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (2 1/4")SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (2 1/4")
-
1710-47954 SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (1 5/8")SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (1 5/8")
-
1813-35048 LOCKWASHER, ELECTRIC PANEL SCREWLOCKWASHER, ELECTRIC PANEL SCREW
-
1912-20553 WASHER, ELECTRIC PANEL SCREWWASHER, ELECTRIC PANEL SCREW
-
2022-47625 GROMMET, ELECTRIC PANELGROMMET, ELECTRIC PANEL
-
21332-2986A27 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
2212-45075 WASHER, SWITCH BOX TERMIALWASHER, SWITCH BOX TERMIAL
-
2313-26996 LOCKWASHER, SWITCH BOX TERMINALLOCKWASHER, SWITCH BOX TERMINAL
-
2411-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
2510-26184 SCREW, SWITCH BOX TO ELECTRIC PANEL (9/16")SCREW, SWITCH BOX TO ELECTRIC PANEL (9/16")
-
2613-21547 LOCKWASHER, SWITCH BOX SCREWLOCKWASHER, SWITCH BOX SCREW
-
2710-45218 SCREW, GROUND WIRE TO SWITCH BOX (3/8")SCREW, GROUND WIRE TO SWITCH BOX (3/8")
-
2837707 VOLTAGE REGULATORVOLTAGE REGULATOR
-
2910-52102 SCREW, VOLTAGE REGULATOR TO ELECTRIC PANEL (1")SCREW, VOLTAGE REGULATOR TO ELECTRIC PANEL (1")
-
3013-26992 LOCKWASHER, VOLTAGE REGULATOR SCREWLOCKWASHER, VOLTAGE REGULATOR SCREW
-
2910-37908 SCREW, VOLTAGE REGULATOR ATTACHING (1 1/4")SCREW, VOLTAGE REGULATOR ATTACHING (1 1/4")
-
3012-20028 WASHER, VOLTAGE REGULATOR SCREWWASHER, VOLTAGE REGULATOR SCREW
-
31332-4895A8 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
3210-45102 SCREW, IGNITION COIL CLAMPING (2 3/8")SCREW, IGNITION COIL CLAMPING (2 3/8")
-
3210-45103 SCREW, IGNITION COIL CLAMPING (2")SCREW, IGNITION COIL CLAMPING (2")
-
3312-56681 WASHER, IGNITION COIL SCREWWASHER, IGNITION COIL SCREW
-
3454-22740 CLIP, IGNITION COIL LEADCLIP, IGNITION COIL LEAD
-
358M0084613 "D" WASHER, IGNITION COIL SCREW"D" WASHER, IGNITION COIL SCREW
-
3611-68219 NUT, IGNITION COIL SCREWNUT, IGNITION COIL SCREW
-
3710-26889 SCREW, IGNITION COIL TO ELECTRIC PANEL (2 1/4")SCREW, IGNITION COIL TO ELECTRIC PANEL (2 1/4")
-
3813-26992 LOCKWASHER, IGNITION COIL SCREWLOCKWASHER, IGNITION COIL SCREW
-
3937-47239 DECAL, WIRINGDECAL, WIRING
-
4038371 SEAL, COVER TO ELECTRIC PANELSEAL, COVER TO ELECTRIC PANEL
-
4137-36350 DECAL, ELECTRIC COVER (225 H.P.)DECAL, ELECTRIC COVER (225 H.P.)
-
4247550 COVER, ELECTRIC PANELCOVER, ELECTRIC PANEL
-
4310-47674 SCREW, COVER TO ELECTRIC PANEL (2 3/4")SCREW, COVER TO ELECTRIC PANEL (2 3/4")
-
4447682 WIRING HARNESSWIRING HARNESS
-
4449450 WIRING HARNESS (AUTOMATIC CHOKE)WIRING HARNESS (AUTOMATIC CHOKE)
-
4453072 WIRING HARNESS (ELECTRIC CHOKE)WIRING HARNESS (ELECTRIC CHOKE)
-
452132-2679 PLATE, BACKUP - WIRING HARNESSPLATE, BACKUP - WIRING HARNESS
-
4610-46718 SCREW, BACKUP PLATE FASTENING (3/4")SCREW, BACKUP PLATE FASTENING (3/4")
-
4738532 BRACKET, MOUNTING - WIRING HARNESSBRACKET, MOUNTING - WIRING HARNESS
-
4810-32417 SCREW, MOUNTING BRACKET TO ELECTRIC PANEL (5/8")SCREW, MOUNTING BRACKET TO ELECTRIC PANEL (5/8")
-
4911-30506 NUT, MOUNTING BARCKET SCREWNUT, MOUNTING BARCKET SCREW
-
5049451 BRACKET, MOUNTING - WIRING HARNESS SERIAL
SERIAL 02399398-02595696BRACKET, MOUNTING - WIRING HARNESS SERIAL
SERIAL 02399398-02595696 -
5110-37612 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 1/4")
SERIAL 02399398-02595696SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 1/4")
SERIAL 02399398-02595696 -
5110-32132 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 3/4")
SERIAL 02399398-02595696SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 3/4")
SERIAL 02399398-02595696 -
5213-35048 LOCKWASHER, MOUNTING BRACKET SCREW
SERIAL 02399398-02595696LOCKWASHER, MOUNTING BRACKET SCREW
SERIAL 02399398-02595696 -
5395814 CLAMP, VOLTAGE REGULATOR PLUGCLAMP, VOLTAGE REGULATOR PLUG
-
5410-29227 SCREW, VOLTAGE REGULATOR CLAMP (1/2")SCREW, VOLTAGE REGULATOR CLAMP (1/2")
-
5511-26768 NUT, VOLTAGE REGULATOR CLAMP SCREWNUT, VOLTAGE REGULATOR CLAMP SCREW
-
5654-33361 CLIP, WIRING HARNESS ATTACHINGCLIP, WIRING HARNESS ATTACHING
-
5761990 STA-STRAP, WIRING HARNESSSTA-STRAP, WIRING HARNESS
-
5854-46721 CLIP, WIRING HARNESS ATTACHINGCLIP, WIRING HARNESS ATTACHING
-
5910-20367 SCREW, WIRING HARNESS CLIPSCREW, WIRING HARNESS CLIP
-
6013-26992 LOCKWASHER, WIRING HARNESS CLIP SCREWLOCKWASHER, WIRING HARNESS CLIP SCREW
