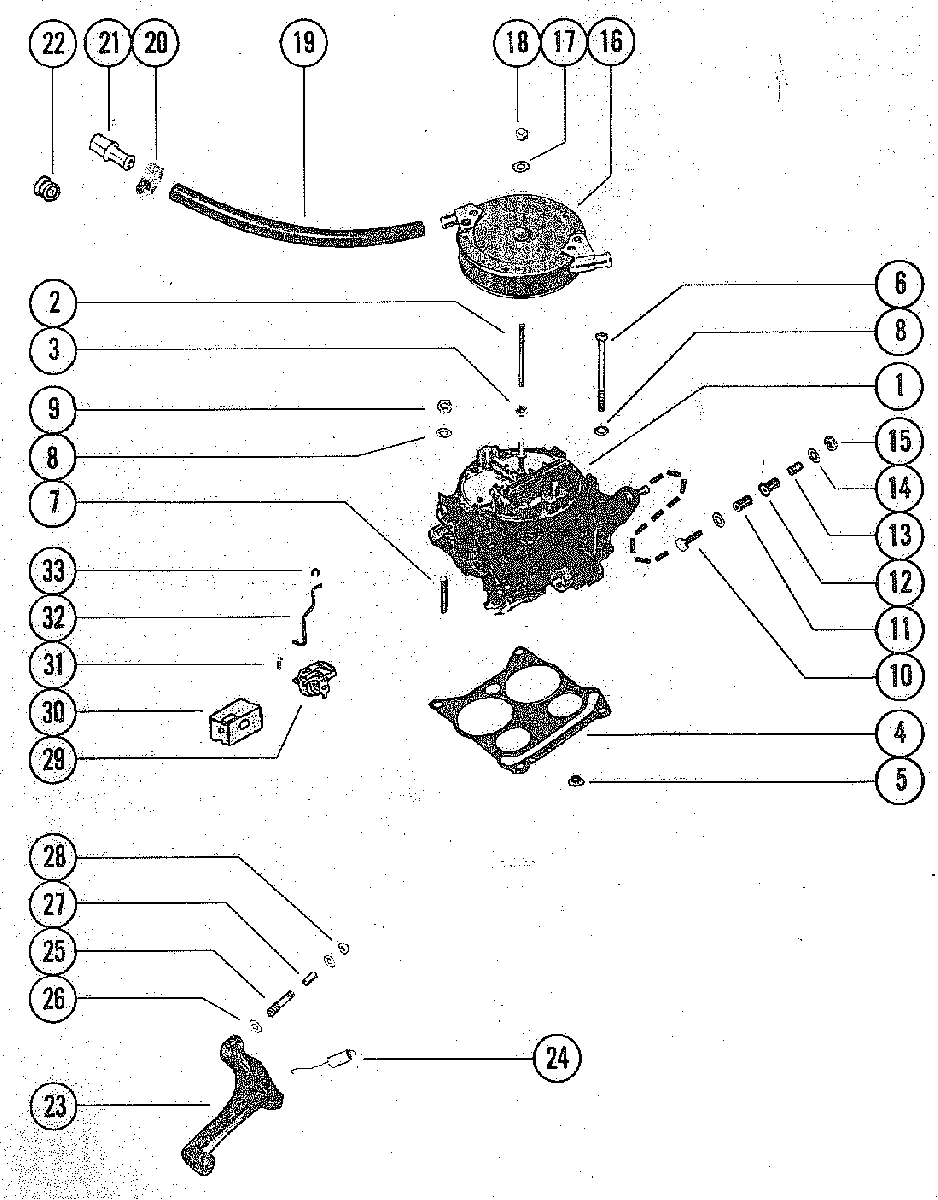

CARBURETOR AND AUTOMATIC CHOKE для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199
-
№АртикулНазвание
-
11347-5981A1 CARBURETOR ASSEMBLY
SEE PAGE 11 FOR BREAKDOWN SERIAL 00000000-04176468CARBURETOR ASSEMBLY
SEE PAGE 11 FOR BREAKDOWN SERIAL 00000000-04176468 -
11347-5981A1 CARBURETOR ASSEMBLY
SEE PAGE 11 FOR BREAKDOWN SERIAL 04176469-09999999CARBURETOR ASSEMBLY
SEE PAGE 11 FOR BREAKDOWN SERIAL 04176469-09999999 -
216-91842 STUD, FLAME ARRESTOR MOUNTING - CARBURETORSTUD, FLAME ARRESTOR MOUNTING - CARBURETOR
-
311-8267139 NUT, JAM - FLAME ARRESTORNUT, JAM - FLAME ARRESTOR
-
427-524572 GASKET, CARBURETORGASKET, CARBURETOR
-
522-12524 PLUG, INTAKE MANIFOLD VACUUM HOLEPLUG, INTAKE MANIFOLD VACUUM HOLE
-
610-74822 SCREW, CARBURETOR MOUNTING (3 1/2")SCREW, CARBURETOR MOUNTING (3 1/2")
-
716-46857 STUD, CARBURETOR MOUNTING (1 7/8")STUD, CARBURETOR MOUNTING (1 7/8")
-
812-20084 WASHER, CARBURETOR MOUNTING STUD AND SCREWWASHER, CARBURETOR MOUNTING STUD AND SCREW
-
911-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
-
1010-98509 SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")
-
1123-32818 BUSHING, THROTTLE CABLE SCREWBUSHING, THROTTLE CABLE SCREW
-
1225-35039 GROMMET, CARBURETOR LEVERGROMMET, CARBURETOR LEVER
-
1323-35040 SLEEVE, CARBURETOR LEVERSLEEVE, CARBURETOR LEVER
-
1412-847883 WASHER, THROTTLE CABLE SCREWWASHER, THROTTLE CABLE SCREW
-
1511-8267086 NUT, THROTTLE CABLE SCREWNUT, THROTTLE CABLE SCREW
-
16805298A1 FLAME ARRESTOR, CARBURETORFLAME ARRESTOR, CARBURETOR
-
1712-22937 WASHER, FLAME ARRESTOR STUDWASHER, FLAME ARRESTOR STUD
-
1811-826709109 NUT, FLAME ARRESTOR STUDNUT, FLAME ARRESTOR STUD
-
1932-8M0062669 HOSE, VENT - CARBURETOR (10")HOSE, VENT - CARBURETOR (10")
-
2054-53101 CLAMP, VENT HOSE ATTACHINGCLAMP, VENT HOSE ATTACHING
-
2147957 CONNECTOR, VENT HOSE TO ROCKER COVERCONNECTOR, VENT HOSE TO ROCKER COVER
-
2223-8M0071559 GROMMET, ROCKER COVER TO VENT HOSE CONNECTORGROMMET, ROCKER COVER TO VENT HOSE CONNECTOR
-
2347502A2 BRACKET, MOUNTING - THROTTLE CABLEBRACKET, MOUNTING - THROTTLE CABLE
-
2424-897454 SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
2516-35897 STUD, THROTTLE CABLE TO MOUNTING BRACKET (1 11/16")STUD, THROTTLE CABLE TO MOUNTING BRACKET (1 11/16")
-
2612-69056 WASHER, THROTTLE CABLE STUDWASHER, THROTTLE CABLE STUD
-
2723-31866 SPACER, THROTTLE CABLE STUDSPACER, THROTTLE CABLE STUD
-
2811-826709109 NUT, THROTTLE CABLE STUDNUT, THROTTLE CABLE STUD
-
2971464A01 CHOKE, AUTOMATIC - CARBURETORCHOKE, AUTOMATIC - CARBURETOR
-
3063922 COVER, AUTOMATIC CHOKECOVER, AUTOMATIC CHOKE
-
3110-69235 SCREW, AUTOMATIC CHOKE THERMOSTAT (5/8")SCREW, AUTOMATIC CHOKE THERMOSTAT (5/8")
-
3261112 ROD, AUTOMATIC CHOKEROD, AUTOMATIC CHOKE
-
3354-59989 CLIP, AUTOMATIC CHOKE RODCLIP, AUTOMATIC CHOKE ROD
