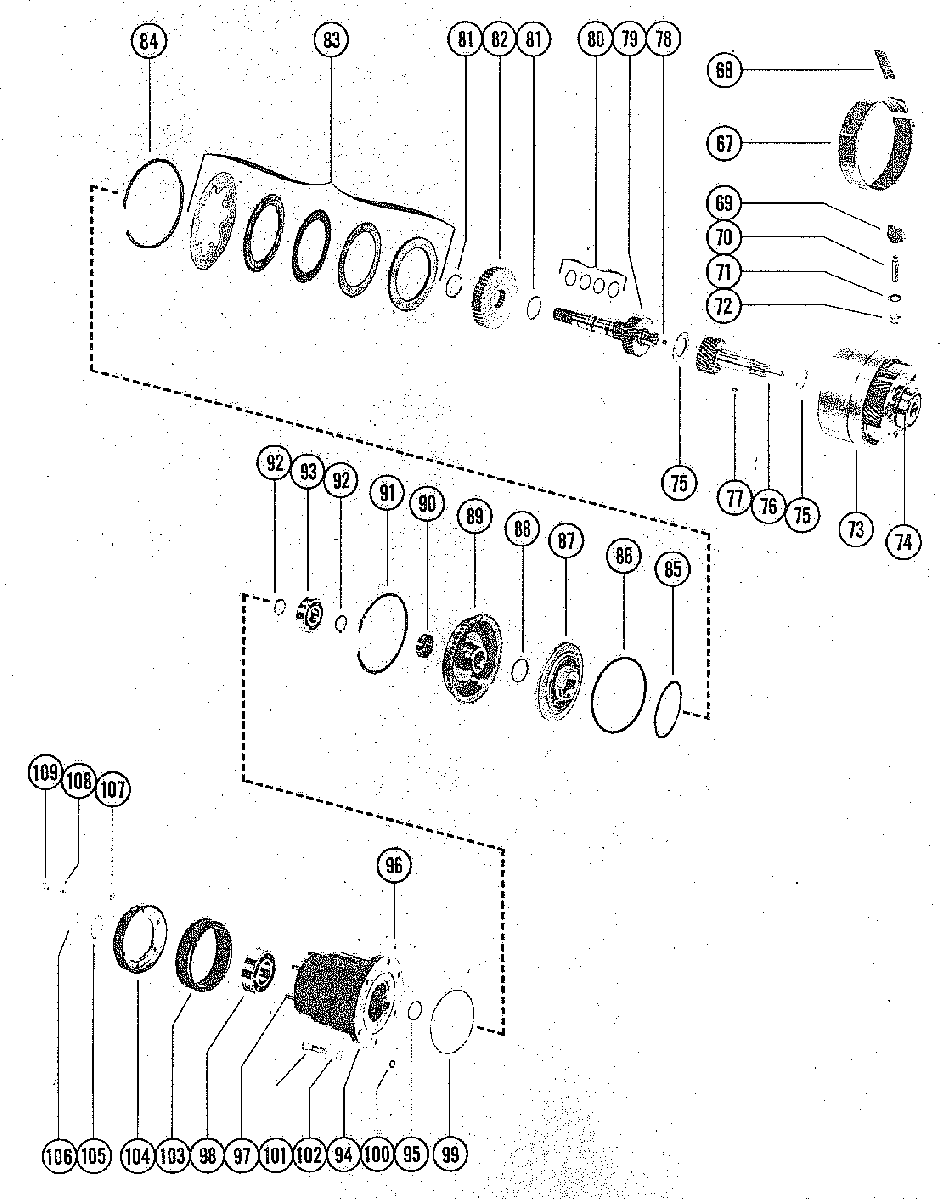

TRANSMISSION ASSEMBLY (STERN DRIVE) PAGE 2 для Mercruiser - 280 TRS GM 350 V-8 1975-1976 4176250 THRU 4770199
-
№АртикулНазвание
-
-76925A6 TRANSMISSION ASSEMBLY, COMPLETE
SEE NOTE BTRANSMISSION ASSEMBLY, COMPLETE
SEE NOTE B -
6762687 BAND, CLUTCHBAND, CLUTCH
-
6862723 LINK, CLUTCH BANDLINK, CLUTCH BAND
-
6962666 STRUT, CLUTCH BAND ANCHORSTRUT, CLUTCH BAND ANCHOR
-
7010-62679 SCREW, ADJUSTING - CLUTCH BANDSCREW, ADJUSTING - CLUTCH BAND
-
7112-62781 WASHER, SEALING - ADJUSTING SCREWWASHER, SEALING - ADJUSTING SCREW
-
7211-21612 NUT, JAM - ADJUSTING SCREWNUT, JAM - ADJUSTING SCREW
-
7362694A3 PLANETARY AND CLUTCH DRUM ASSEMBLYPLANETARY AND CLUTCH DRUM ASSEMBLY
-
7430-20839T BALL BEARING, PLANETARY AND CLUTCH DRUMBALL BEARING, PLANETARY AND CLUTCH DRUM
-
7531-66723 BEARING, THRUST - INPUT SHAFTBEARING, THRUST - INPUT SHAFT
-
7677448A1 SHAFT ASSEMBLY, INPUT
SEE NOTE ASHAFT ASSEMBLY, INPUT
SEE NOTE A -
7677448A1 SHAFT ASSEMBLY, INPUT
SEE NOTE ASHAFT ASSEMBLY, INPUT
SEE NOTE A -
7790-8M0143356 KEY, INPUT SHAFTKEY, INPUT SHAFT
-
7822-390721 PLUG, PIPE - OUTPUT SHAFTPLUG, PIPE - OUTPUT SHAFT
-
7967993A2 SHAFT, OUTPUTSHAFT, OUTPUT
-
8090-8M0143356 RING SEAL, OUTPUT SHAFTRING SEAL, OUTPUT SHAFT
-
8190-8M0143356 SNAP RING, CLUTCH HUB TO OUTPUT SHAFTSNAP RING, CLUTCH HUB TO OUTPUT SHAFT
-
8262693 HUB, CLUTCHHUB, CLUTCH
-
8362691A1 CLUTCH PLATE KITCLUTCH PLATE KIT
-
8490-8M0143356 SNAP RING, CLUTCH PACK KIT RETAININGSNAP RING, CLUTCH PACK KIT RETAINING
-
8562686 RING, PRESSURE - CLUTCH SPRINGRING, PRESSURE - CLUTCH SPRING
-
8690-8M0143356 SEAL, PISTON - OUTERSEAL, PISTON - OUTER
-
8762667 PISTON, CLUTCHPISTON, CLUTCH
-
8890-8M0143356 "O" RING, PISTON - INNER"O" RING, PISTON - INNER
-
8967282A1 HOUSING ASSEMBLY, PISTONHOUSING ASSEMBLY, PISTON
-
9030-62697 BALL BEARING, PISTON HOUSINGBALL BEARING, PISTON HOUSING
-
9190-8M0143356 SNAP RING, PISTON HOUSING TO OUTPUT SHAFTSNAP RING, PISTON HOUSING TO OUTPUT SHAFT
-
9290-8M0143356 SNAP RING, BALL BEARING TO OUTPUT SHAFTSNAP RING, BALL BEARING TO OUTPUT SHAFT
-
9330-62698 BALL BEARING, OUTPUT SHAFTBALL BEARING, OUTPUT SHAFT
-
9462739A2 HOUSING ASSEMBLY, OUTPUTHOUSING ASSEMBLY, OUTPUT
-
9590-8M0143356 SEAL, OUTPUT HOUSINGSEAL, OUTPUT HOUSING
-
9690-8M0143356 BALL, OUTPUT HOUSING (3/16")BALL, OUTPUT HOUSING (3/16")
-
9716-32027 STUD, RETAINER TO OUTPUT HOUSINGSTUD, RETAINER TO OUTPUT HOUSING
-
9830-879194A03 BALL BEARING, OUTPUT HOUSINGBALL BEARING, OUTPUT HOUSING
-
9990-8M0143356 "O" RING, OUTPUT HSG./TRANSMISSION HSG. (3 7/16" O.D.)"O" RING, OUTPUT HSG./TRANSMISSION HSG. (3 7/16" O.D.)
-
10090-8M0143356 "O" RING, OIL PRESSURE - OUTPUT HOUSING (7/16" O.D.)"O" RING, OIL PRESSURE - OUTPUT HOUSING (7/16" O.D.)
-
10110-74824 SCREW, OUTPUT HOUSING TO TRANSMISSION HOUSING (1 1/4")SCREW, OUTPUT HOUSING TO TRANSMISSION HOUSING (1 1/4")
-
10213-39107 LOCKWASHER, OUTPUT HOUSING SCREWLOCKWASHER, OUTPUT HOUSING SCREW
-
10362734 MOUNT, RUBBER - OUTPUT HOUSING (REAR)MOUNT, RUBBER - OUTPUT HOUSING (REAR)
-
10465989 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
10512-62684 WASHER, THRUST - OUTPUT HOUSINGWASHER, THRUST - OUTPUT HOUSING
-
10690-8M0143356 "O" RING, OUTPUT HOUSING (7/8" O.D.)"O" RING, OUTPUT HOUSING (7/8" O.D.)
-
10711-24652 NUT, RETAINER STUDNUT, RETAINER STUD
-
10822-74036 FITTING, GREASE - RETAINERFITTING, GREASE - RETAINER
-
10919-77633Q LUBRICAP, GREASE FITTINGLUBRICAP, GREASE FITTING
