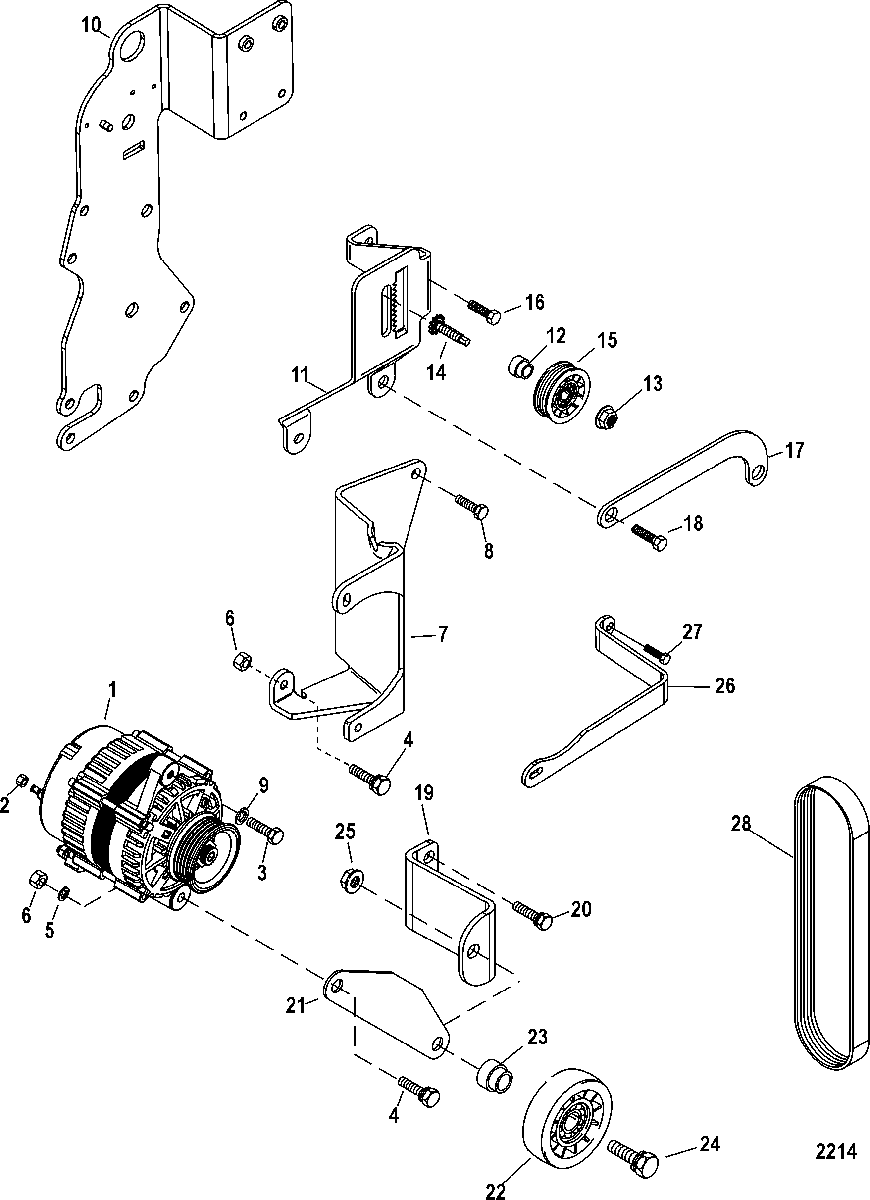

Alternator and Brackets для Mercruiser - 350 MAG MPI ALPHA/BRAVO 1A611928 THRU 1A623184
-
№АртикулНазвание
-
1863077T ALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley
Non ServiceableALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley
Non Serviceable -
211-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
310-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
410-828213 SCREW, (.312-18 x 1.500) Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange
-
512-57792 WASHERWASHER
-
611-26484 NUT, (.312-18)NUT, (.312-18)
-
7863211T01 BRACKET, Alternator MountingBRACKET, Alternator Mounting
-
810-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
912-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
10865188T01 BRACKET
Without Air Actuated DrainBRACKET
Without Air Actuated Drain -
10865188T BRACKET
With Air Actuated DrainBRACKET
With Air Actuated Drain -
11862083T BRACKET, Idler AdjustmentBRACKET, Idler Adjustment
-
12865193 BUSHINGBUSHING
-
1311-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
1443-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
15864625T PULLEY (4.25 Inch Diameter)
With Power SteeringPULLEY (4.25 Inch Diameter)
With Power Steering -
15807757T PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
Compact Hydralic SteeringPULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
Compact Hydralic Steering -
1610-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
17862082T BRACE, Power SteeringBRACE, Power Steering
-
1810-40001188 SCREW, (M10 x 20)SCREW, (M10 x 20)
-
19864456T BRACKET, Alternator Brace
Bravo, Alpha-Closed CoolingBRACKET, Alternator Brace
Bravo, Alpha-Closed Cooling -
2010-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
21862085T BRACE, Idler Bracket
Bravo, Alpha-Closed CoolingBRACE, Idler Bracket
Bravo, Alpha-Closed Cooling -
228M6500024 PULLEY
Bravo, Alpha-Closed CoolingPULLEY
Bravo, Alpha-Closed Cooling -
23865193 BUSHING
Bravo, Alpha-Closed CoolingBUSHING
Bravo, Alpha-Closed Cooling -
2410-56393 SCREW, (.437-20 x 1.75)
Bravo, Alpha-Closed CoolingSCREW, (.437-20 x 1.75)
Bravo, Alpha-Closed Cooling -
2511-859135 NUT, (.437-20) Brass/Nickel Plated
Bravo, Alpha-Closed CoolingNUT, (.437-20) Brass/Nickel Plated
Bravo, Alpha-Closed Cooling -
26862778 BRACKET, Alternator BraceBRACKET, Alternator Brace
-
2710-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2857-865615Q04 BELT, Serpentine
Standard Cooling, Alpha, With Power SteeringBELT, Serpentine
Standard Cooling, Alpha, With Power Steering -
2857-865615Q09 BELT, Serpentine
Standard Cooling, Alpha, CHS and Non Power SteeringBELT, Serpentine
Standard Cooling, Alpha, CHS and Non Power Steering -
2857-865615Q03 BELT, Serpentine
Standard Cooling, Bravo, With Power SteeringBELT, Serpentine
Standard Cooling, Bravo, With Power Steering -
2857-865615Q08 BELT, Serpentine, Standard Cooling, Bravo, CHS and Non Power SteeringBELT, Serpentine, Standard Cooling, Bravo, CHS and Non Power Steering
-
2857-865615Q01 BELT, Serpentine
Standard Cooling, AxiusBELT, Serpentine
Standard Cooling, Axius -
2857-865615Q06 BELT, Serpentine, Alpha/Bravo,Closed Cooling, With Power SteeringBELT, Serpentine, Alpha/Bravo,Closed Cooling, With Power Steering
-
2857-865615Q08 BELT, Serpentine
Alpha/Bravo, Closed Cooling, CHS and Non Power SteeringBELT, Serpentine
Alpha/Bravo, Closed Cooling, CHS and Non Power Steering -
2857-8M2018984 BELT, Serpentine
Axius, Closed CoolingBELT, Serpentine
Axius, Closed Cooling
