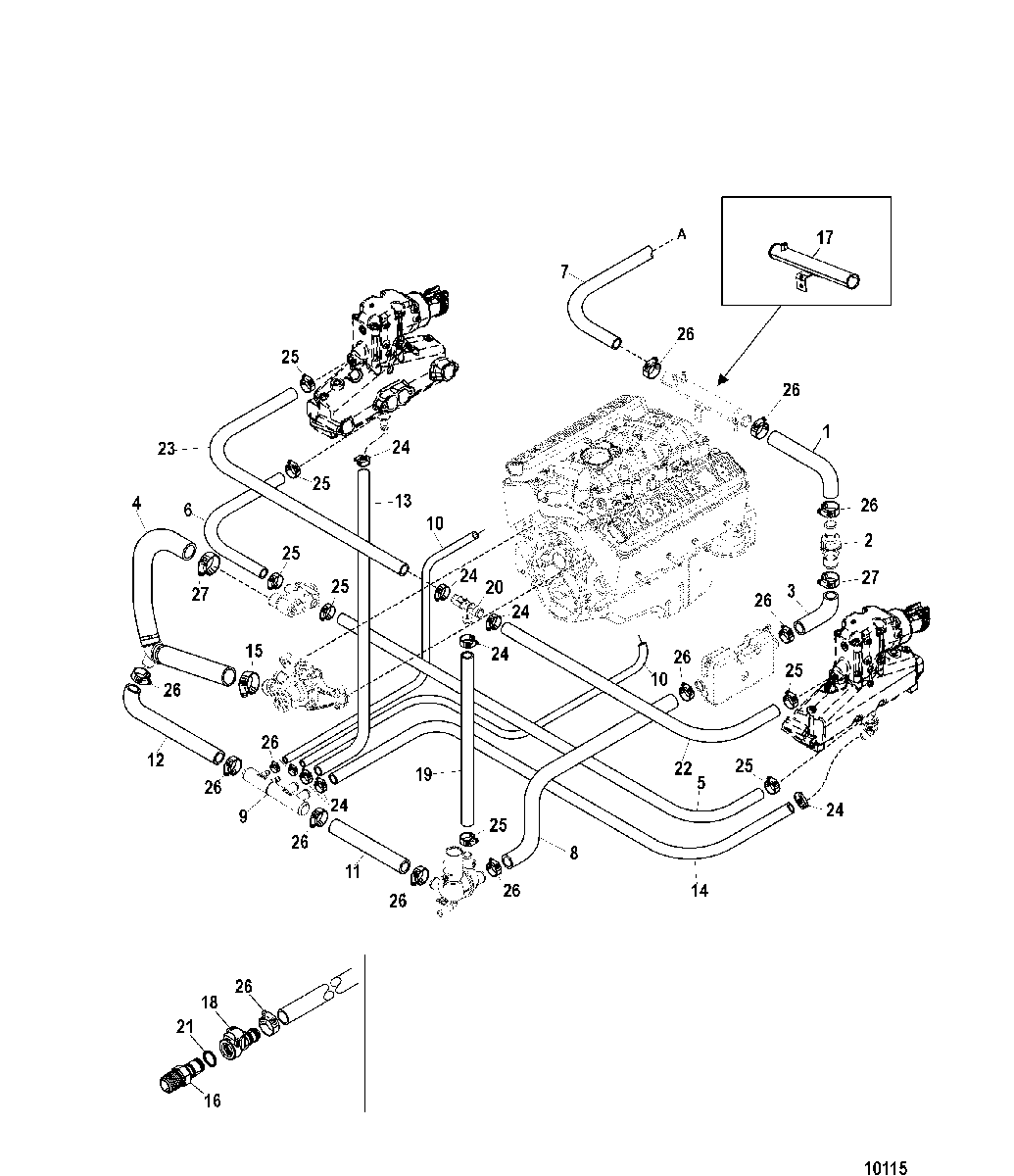

Standard Cooling System - ALPHA, Single and 3 Point Drain для Mercruiser - 350 MAG MPI ALPHA/BRAVO 1A611928 THRU 1A623184
-
№АртикулНазвание
-
132-863489 HOSE, Power Steering Cooler to Check ValveHOSE, Power Steering Cooler to Check Valve
-
221-864206A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
332-863623 HOSE, Check Valve to Fuel CoolerHOSE, Check Valve to Fuel Cooler
-
432-863456A1 HOSE ASSEMBLY, Thermostat Housing to Circulating PumpHOSE ASSEMBLY, Thermostat Housing to Circulating Pump
-
532-863458 HOSE, Thermostat Housing to Port ManifoldHOSE, Thermostat Housing to Port Manifold
-
632-863459 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
732-807661 HOSE, Transom Assembly to Power Steering Cooler
AlphaHOSE, Transom Assembly to Power Steering Cooler
Alpha -
832-863670 HOSE, Fuel Cooler to Water Distribution HousingHOSE, Fuel Cooler to Water Distribution Housing
-
922-864621A1 FITTING ASSEMBLY, Lower DistributionFITTING ASSEMBLY, Lower Distribution
-
1032-8M0062590 HOSE, Cylinder Block Drain to Distribution Fitting
Port Cut to 23 Inches, Starboard 17 InchesHOSE, Cylinder Block Drain to Distribution Fitting
Port Cut to 23 Inches, Starboard 17 Inches -
1132-863490 HOSE, Water Drain Accumulator to Distribution FittingHOSE, Water Drain Accumulator to Distribution Fitting
-
1232-863491 HOSE, Distribution Fitting to "Y" FittingHOSE, Distribution Fitting to "Y" Fitting
-
1332-8M0062634 HOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting
Cut to 22 Inch LengthHOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting
Cut to 22 Inch Length -
1432-8M0062634 HOSE, (44.00 Inches Bulk), Port Manifold to Distribution Fitting
Cut to 31 Inch LengthHOSE, (44.00 Inches Bulk), Port Manifold to Distribution Fitting
Cut to 31 Inch Length -
1554-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
1622-862603 FITTING, Male Quick Connector, ThreadedFITTING, Male Quick Connector, Threaded
-
17863841T TUBE, Water, Brass
Compact Hydraulic SteeringTUBE, Water, Brass
Compact Hydraulic Steering -
1822-862225 FITTING, PushlockFITTING, Pushlock
-
1932-863465 HOSE, Drain Accumulator to Tee FittingHOSE, Drain Accumulator to Tee Fitting
-
2022-8M0065823 FITTING ASSEMBLY
Alpha OnlyFITTING ASSEMBLY
Alpha Only -
NS22-8M0065823 BUSHING, Orifice
Alpha OnlyBUSHING, Orifice
Alpha Only -
NS22-8M0065823 O-RING
Alpha OnlyO-RING
Alpha Only -
2125-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
2232-864560 HOSE, Tee Fitting to Port Elbow
Non Riser, 1.7 inch and 3 Inch RiserHOSE, Tee Fitting to Port Elbow
Non Riser, 1.7 inch and 3 Inch Riser -
2232-864965 HOSE, Tee Fitting to Port Elbow
4.7 Inch and 6 Inch RiserHOSE, Tee Fitting to Port Elbow
4.7 Inch and 6 Inch Riser -
2332-864561 HOSE, Tee Fitting to Starboard Elbow
Non Riser, 1.7 inch and 3 Inch RiserHOSE, Tee Fitting to Starboard Elbow
Non Riser, 1.7 inch and 3 Inch Riser -
2332-864966 HOSE, Tee Fitting to Starboard Elbow
4.7 Inch and 6 Inch RiserHOSE, Tee Fitting to Starboard Elbow
4.7 Inch and 6 Inch Riser -
2454-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
2554-815504216 CLAMP, Worm Gear (1.56 Diameter)CLAMP, Worm Gear (1.56 Diameter)
-
2654-815504228 CLAMP, Worm GearCLAMP, Worm Gear
-
2754-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
