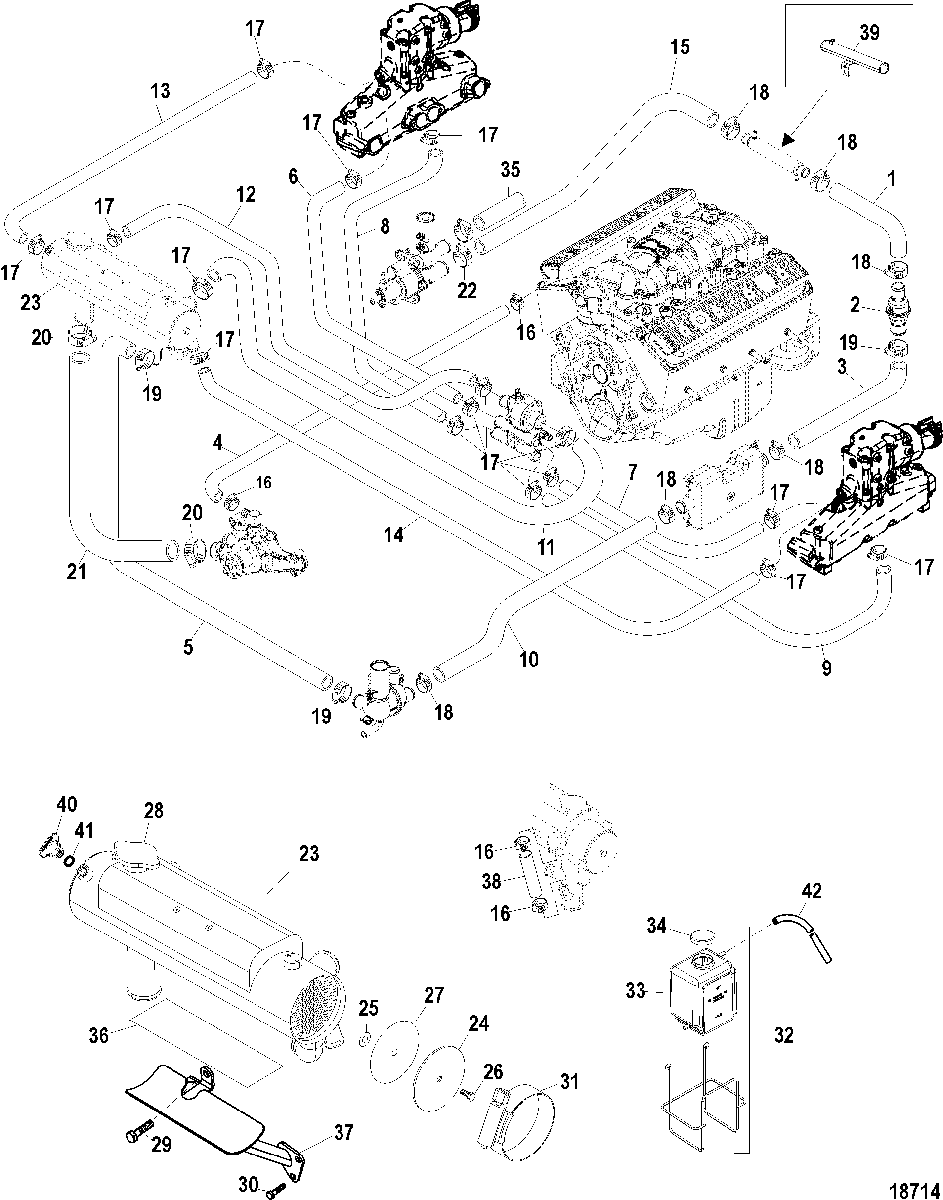

Closed Cooling System (ALPHA) для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO 0W310000 THRU 0W649999
-
№АртикулНазвание
-
132-863489 HOSE, Power Steering to Check ValveHOSE, Power Steering to Check Valve
-
221-864206A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
332-863623 HOSE, Check Valve to Fuel CoolerHOSE, Check Valve to Fuel Cooler
-
432-864551 HOSE, Intake Bypass to Circulating PumpHOSE, Intake Bypass to Circulating Pump
-
532-864431 HOSE, Distribution Fitting to Heat ExchangerHOSE, Distribution Fitting to Heat Exchanger
-
632-864539 HOSE, Thermostat Housing to Upper Manifold
(Starboard) (Non Riser)HOSE, Thermostat Housing to Upper Manifold
(Starboard) (Non Riser) -
632-864956 HOSE, Thermostat Housing to Upper Manifold
(Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)HOSE, Thermostat Housing to Upper Manifold
(Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) -
732-864552 HOSE, Thermostat Housing to Upper Manifold
(Port) (Non Riser)HOSE, Thermostat Housing to Upper Manifold
(Port) (Non Riser) -
732-864954 HOSE, Thermostat Housing to Upper Manifold
(Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)HOSE, Thermostat Housing to Upper Manifold
(Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) -
832-864509 HOSE, Thermostat Housing to Lower Manifold
(Starboard)HOSE, Thermostat Housing to Lower Manifold
(Starboard) -
932-864508 HOSE, Thermostat Housing to Lower Manifold
(Port)HOSE, Thermostat Housing to Lower Manifold
(Port) -
1032-863670 HOSE, Fuel Cooler to Accumulator HousingHOSE, Fuel Cooler to Accumulator Housing
-
1132-864506 HOSE, Heat Exchanger to Thermostat HousingHOSE, Heat Exchanger to Thermostat Housing
-
1232-864507 HOSE, Heat Exchanger to Thermostat HousingHOSE, Heat Exchanger to Thermostat Housing
-
13864542 HOSE, Heat Exchanger to Starboard Elbow
(Non Riser, 1.7 Inch and 3 Inch Riser)HOSE, Heat Exchanger to Starboard Elbow
(Non Riser, 1.7 Inch and 3 Inch Riser) -
1332-864955 HOSE, Heat Exchanger to Starboard Elbow
(4.7 Inch and 6 Inch Riser)HOSE, Heat Exchanger to Starboard Elbow
(4.7 Inch and 6 Inch Riser) -
1432-864726 HOSE, Heat Exchanger to Port Elbow
(Non Riser, 1.7 Inch and 3 Inch Riser)HOSE, Heat Exchanger to Port Elbow
(Non Riser, 1.7 Inch and 3 Inch Riser) -
1432-864953 HOSE, Heat Exchanger to Port Elbow
(4.7 Inch and 6 Inch Riser)HOSE, Heat Exchanger to Port Elbow
(4.7 Inch and 6 Inch Riser) -
1532-863611 HOSE, Sea Pump to Power Steering CoolerHOSE, Sea Pump to Power Steering Cooler
-
1654-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
1754-815504216 CLAMP, Worm Gear (1.56 Diameter)CLAMP, Worm Gear (1.56 Diameter)
-
1854-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
-
1954-815504228 CLAMP, Worm GearCLAMP, Worm Gear
-
2054-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2132-864886 HOSE, Heat Exchanger to Circulating PumpHOSE, Heat Exchanger to Circulating Pump
-
2254-815504224 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
23864395T01 HEAT EXCHANGER, Closed CoolingHEAT EXCHANGER, Closed Cooling
-
24864708 COVER, End, Heat ExchangerCOVER, End, Heat Exchanger
-
2525-818679 O-RINGO-RING
-
2610-94247 SCREW, (.375-16 x .750) Stainless SteelSCREW, (.375-16 x .750) Stainless Steel
-
2725-8M0084884 SEALSEAL
-
2836-8148791 CAP, PressureCAP, Pressure
-
2910-805559 SCREW, (.375-16 x .875) Stainless SteelSCREW, (.375-16 x .875) Stainless Steel
-
3010-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3154-815504396 CLAMP, Worm Gear, Heat ExchangerCLAMP, Worm Gear, Heat Exchanger
-
3271587A10 RECOVERY KIT, CoolantRECOVERY KIT, Coolant
-
3371587A11 BOTTLE, Plastic, Coolant Recovery KitBOTTLE, Plastic, Coolant Recovery Kit
-
3472058 CAP, Coolant Recovery BottleCAP, Coolant Recovery Bottle
-
3532-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick UpHOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up
-
3618431 PAD, Heat ExchangerPAD, Heat Exchanger
-
37864494T BRACKET, CoolerBRACKET, Cooler
-
3832-864533 HOSEHOSE
-
39863841T TUBE, Water, Brass
(Compact Hydralic Steering)TUBE, Water, Brass
(Compact Hydralic Steering) -
4022-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
4125-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
4232-1983389 HOSE (Included with Coolant Recovery Kit)HOSE (Included with Coolant Recovery Kit)
