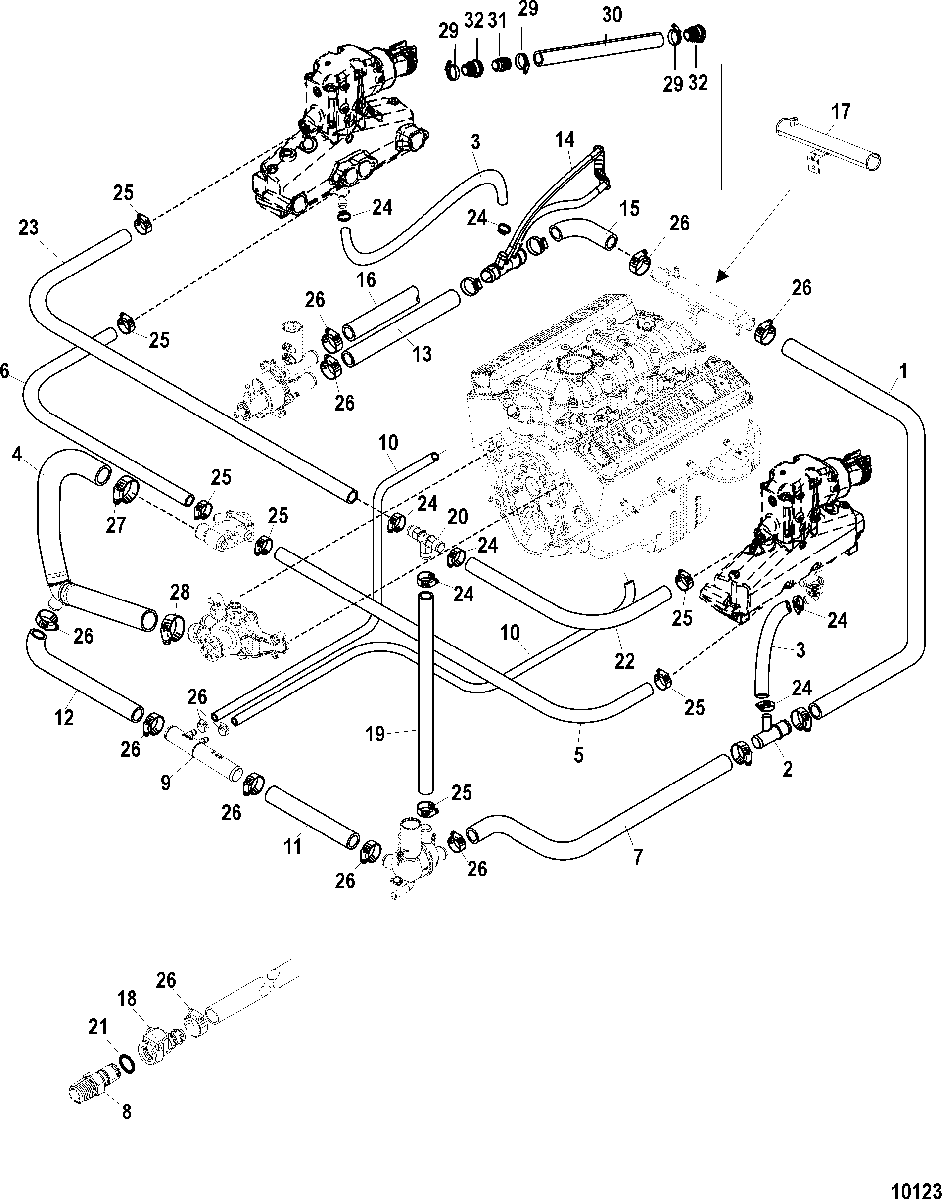

Standard Cooling System (BRAVO)(Single and 3 Point Drain) для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO 0W310000 THRU 0W649999
-
№АртикулНазвание
-
132-865255 HOSE, Power Steering Cooler to Accumulator HousingHOSE, Power Steering Cooler to Accumulator Housing
-
222-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose BarbFITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
-
332-8M0062634 HOSE, (44.00 Inches Bulk), Exhaust Manifold to Y Fitting
(Port)(Cut to 9.00 Inches)HOSE, (44.00 Inches Bulk), Exhaust Manifold to Y Fitting
(Port)(Cut to 9.00 Inches) -
332-8M0062634 HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting
(Starboard)(Cut to 3.5 Inches)HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting
(Starboard)(Cut to 3.5 Inches) -
432-863456A1 HOSE ASSEMBLY, Thermostat Housing to Circulating PumpHOSE ASSEMBLY, Thermostat Housing to Circulating Pump
-
532-863458 HOSE, Thermostat Housing to Port ManifoldHOSE, Thermostat Housing to Port Manifold
-
632-863459 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
732-866331 HOSE, Y Fitting to AccumulatorHOSE, Y Fitting to Accumulator
-
822-862603 FITTING, Male Quick Connector, Threaded - Engine BlockFITTING, Male Quick Connector, Threaded - Engine Block
-
922-864989A01 FITTING ASSEMBLY, Lower DistributionFITTING ASSEMBLY, Lower Distribution
-
1032-8M0062590 HOSE, Cylinder Block Drain to Distribution Fitting
(Port-23 Inches)(Starboard 17 Inches)HOSE, Cylinder Block Drain to Distribution Fitting
(Port-23 Inches)(Starboard 17 Inches) -
1132-863490 HOSE, Water Drain Accumulator to Distribution FittingHOSE, Water Drain Accumulator to Distribution Fitting
-
1232-865394 HOSEHOSE
-
1332-8M2021656 HOSE, Sea Pump to Water Orifice
(3 Point Manual Drain)HOSE, Sea Pump to Water Orifice
(3 Point Manual Drain) -
1332-865234 HOSE, Sea Pump to Water Orifice
(Single Point Air Actuated Drain)HOSE, Sea Pump to Water Orifice
(Single Point Air Actuated Drain) -
1422-865208T01 HOSE ASSEMBLY, 3 Bib Orfice MeterHOSE ASSEMBLY, 3 Bib Orfice Meter
-
1532-8M2021655 HOSE, Water Orifice to Power Steering CoolerHOSE, Water Orifice to Power Steering Cooler
-
1632-8M0062666 HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water PumpHOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump
-
17863841T TUBE, Water, Brass
(Compact Hydraulic Steering)TUBE, Water, Brass
(Compact Hydraulic Steering) -
1822-862225 FITTING, Pushlock - Block Drain HoseFITTING, Pushlock - Block Drain Hose
-
1932-863465 HOSE, Drain Accumulator to Tee FittingHOSE, Drain Accumulator to Tee Fitting
-
2022-863464 FITTING, Tee
(Bravo Only)FITTING, Tee
(Bravo Only) -
2125-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
2232-864560 HOSE, Tee Fitting to Port Elbow
(Non Riser, 1.7 Inch and 3 Inch Riser)HOSE, Tee Fitting to Port Elbow
(Non Riser, 1.7 Inch and 3 Inch Riser) -
2232-864965 HOSE, Tee Fitting to Port Elbow
(4.7 Inch and 6 Inch Riser)HOSE, Tee Fitting to Port Elbow
(4.7 Inch and 6 Inch Riser) -
2332-864561 HOSE, Tee Fitting to Starboard Elbow
(Non Riser, 1.7 Inch and 3 Inch Riser)HOSE, Tee Fitting to Starboard Elbow
(Non Riser, 1.7 Inch and 3 Inch Riser) -
2332-864966 HOSE, Tee Fitting to Starboard Elbow
(4.7 Inch and 6 Inch Riser)HOSE, Tee Fitting to Starboard Elbow
(4.7 Inch and 6 Inch Riser) -
2454-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
2554-815504216 CLAMP, Worm Gear (1.56 Diameter)CLAMP, Worm Gear (1.56 Diameter)
-
2654-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
-
2754-815504228 CLAMP, Worm GearCLAMP, Worm Gear
-
2854-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2954-815504220 CLAMP, Worm GearCLAMP, Worm Gear
-
3032-8M0062653 HOSE, (4.00 Inches), Transom HoseHOSE, (4.00 Inches), Transom Hose
-
3122-865362 QUICK CONNECT, Transom HoseQUICK CONNECT, Transom Hose
-
3222-865324 QUICK CONNECTQUICK CONNECT
