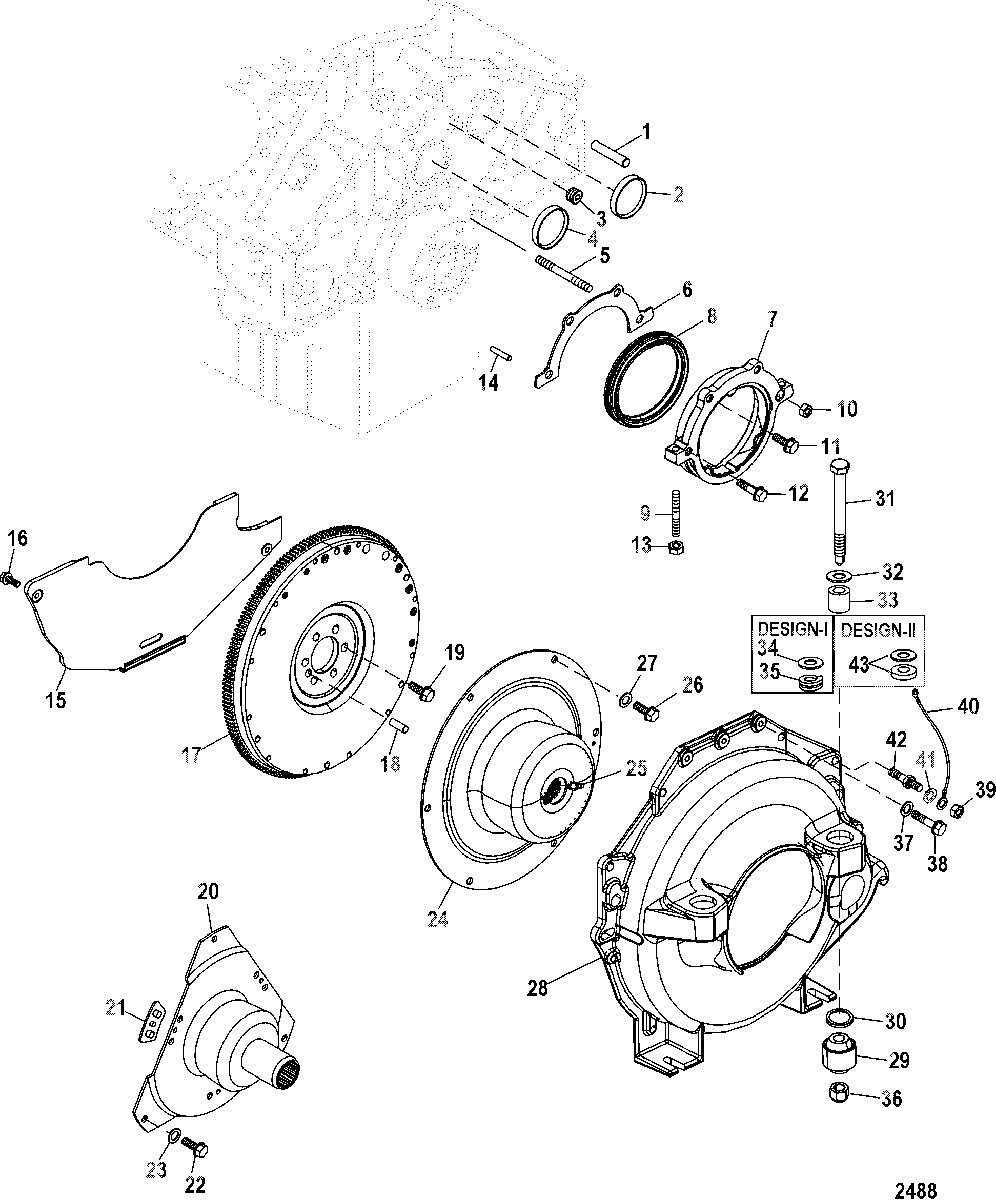

Cylinder Block and Flywheel Housing для Mercruiser - 5.0L MPI ALPHA/BRAVO 0M600000 THRU 0W059999
-
№АртикулНазвание
-
117-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing LocationPIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
-
219-34270 EXPANSION PLUG, (1.625), Engine Core HoleEXPANSION PLUG, (1.625), Engine Core Hole
-
322-32561 PLUG, (.250-18 x .41), Oil GalleyPLUG, (.250-18 x .41), Oil Galley
-
422-72640 PLUG, Expansion, Camshaft Bearing HolePLUG, Expansion, Camshaft Bearing Hole
-
516-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
-
627-881715 GASKET, Crankshaft Oil Seal HousingGASKET, Crankshaft Oil Seal Housing
-
7852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil SealHOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
-
826-852941 SEAL, Crankshaft OilSEAL, Crankshaft Oil
-
916-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1011-8M0098315 NUT, (.250-20)NUT, (.250-20)
-
1110-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
1210-8M0064241 BOLT, (.250-20 x 1.750)BOLT, (.250-20 x 1.750)
-
1311-11971 NUT, (.312-18)NUT, (.312-18)
-
1417-14263 PIN, Dowel, Dowel - Oil Seal Housing LocatingPIN, Dowel, Dowel - Oil Seal Housing Locating
-
15807260A2 COVER KIT, FlywheelCOVER KIT, Flywheel
-
NS11-807296 NUT, (.250-20)NUT, (.250-20)
-
1610-76596 SCREW, (.250-20 x 1.250)SCREW, (.250-20 x 1.250)
-
17222-8M0047213 FLYWHEELFLYWHEEL
-
1817-43504 PIN, Dowel, FlywheelPIN, Dowel, Flywheel
-
1910-845757 SCREW, (.437-20 x 1.00)SCREW, (.437-20 x 1.00)
-
2018643A5 COUPLING ASSEMBLY
(Alpha)COUPLING ASSEMBLY
(Alpha) -
NS22-74036 FITTING, Grease
(Alpha)FITTING, Grease
(Alpha) -
2118644 BUMPER, Rubber
(Alpha)BUMPER, Rubber
(Alpha) -
2210-14883 SCREW, (.375-16 x 1.12)
(Alpha)SCREW, (.375-16 x 1.12)
(Alpha) -
2312-13510 WASHER
(Alpha)WASHER
(Alpha) -
248M0098795 COUPLER ASSEMBLY, Engine - Short Aluminum Hub
(Bravo and All Jackshaft Models)COUPLER ASSEMBLY, Engine - Short Aluminum Hub
(Bravo and All Jackshaft Models) -
24861523A11 COUPLER ASSEMBLY, Engine
(Bravo)(Steel Hub For Work Application)COUPLER ASSEMBLY, Engine
(Bravo)(Steel Hub For Work Application) -
2522-49099 FITTING
(Bravo)FITTING
(Bravo) -
2610-863480 SCREW, (.375-16 x 1.125)
(Bravo)SCREW, (.375-16 x 1.125)
(Bravo) -
2712-20572 WASHER, (.390 x .750 x .093)
(Bravo)WASHER, (.390 x .750 x .093)
(Bravo) -
28865657A03 HOUSING ASSEMBLY, Flywheel
Alpha SN# 0M659999 & BelowHOUSING ASSEMBLY, Flywheel
Alpha SN# 0M659999 & Below -
28865657A03 HOUSING ASSEMBLY, Flywheel
Alpha SN# 0M660000 & UpHOUSING ASSEMBLY, Flywheel
Alpha SN# 0M660000 & Up -
28865657A04 HOUSING ASSEMBLY, Flywheel
Bravo SN# 0M659999 & BelowHOUSING ASSEMBLY, Flywheel
Bravo SN# 0M659999 & Below -
28865657A04 HOUSING ASSEMBLY, Flywheel
Bravo SN# 0M660000 & UpHOUSING ASSEMBLY, Flywheel
Bravo SN# 0M660000 & Up -
298M0103028 MOUNT ASSEMBLY, Rubber
SN# 0M659999 & BelowMOUNT ASSEMBLY, Rubber
SN# 0M659999 & Below -
298M0103028 MOUNT, Rubber
SN# 0M660000 & UpMOUNT, Rubber
SN# 0M660000 & Up -
29865330A02 MOUNT KIT, Rubber
SN# 0M659999 & BelowMOUNT KIT, Rubber
SN# 0M659999 & Below -
29865330A02 MOUNT, Rubber
SN# 0M660000 & UpMOUNT, Rubber
SN# 0M660000 & Up -
3023-99322 SPACERSPACER
-
3110-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
-
3212-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
3323-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
3412-32834 WASHER, (.9375 x 1.750 x .172)
SN# 0M659999 & BelowWASHER, (.9375 x 1.750 x .172)
SN# 0M659999 & Below -
3513-33734 LOCKWASHER, (.500)
SN# 0M659999 & BelowLOCKWASHER, (.500)
SN# 0M659999 & Below -
3611-863332 NUT, (.500-20) AluminumNUT, (.500-20) Aluminum
-
3712-20572 WASHER, (.390 x .750 x .093)WASHER, (.390 x .750 x .093)
-
3810-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
3810-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
3911-32219 NUT, (.375-16)NUT, (.375-16)
-
4084-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) BlackCABLE ASSEMBLY, Ground (13.00 Inches) Black
-
4113-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
4216-861316 STUD, (.375-16 x 2.750) SpecialSTUD, (.375-16 x 2.750) Special
-
4216-861316 STUD
(HORIZON)STUD
(HORIZON) -
4312-892619A01 SHIM KIT, Rear Engine Mount
Where Applicable SN# 0M660000 & UpSHIM KIT, Rear Engine Mount
Where Applicable SN# 0M660000 & Up -
-27-861246A05 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
