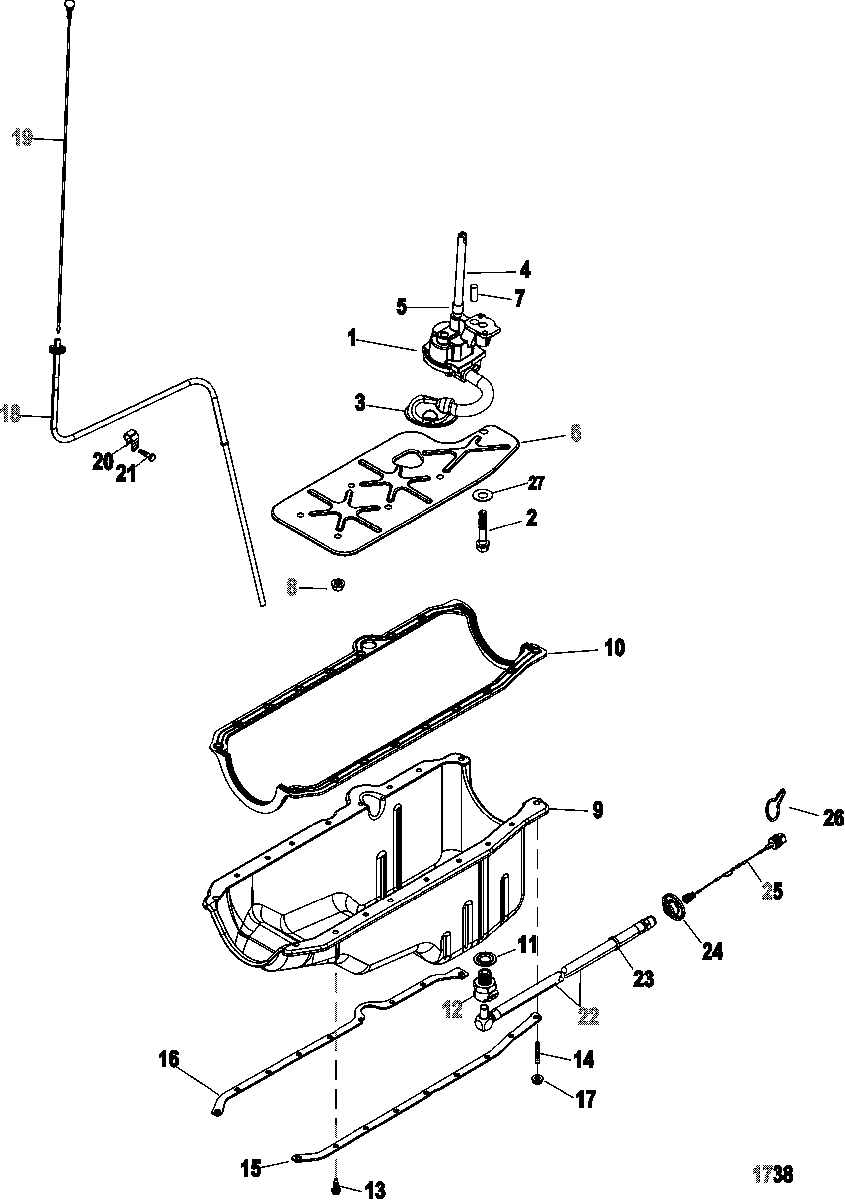

Oil Pan and Oil Pump для Mercruiser - 5.0L MPI ALPHA/BRAVO 0M600000 THRU 0W059999
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-17346 SCREW, Oil PumpSCREW, Oil Pump
-
3809909 SCREEN, Oil Pump Pick UpSCREEN, Oil Pump Pick Up
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 DEFLECTOR, OilDEFLECTOR, Oil
-
717-843378 PIN, Dowel (1/4 In. Diameter), Alignment, Oil PUmpPIN, Dowel (1/4 In. Diameter), Alignment, Oil PUmp
-
811-845602 NUT, (.375-16)NUT, (.375-16)
-
9809910 PAN, OilPAN, Oil
-
1027-138651 GASKET, Oil PanGASKET, Oil Pan
-
1127-8M0077608 GASKET, Drain ScrewGASKET, Drain Screw
-
1222-862811 FITTING, Femal Quick Connect
(Design 1-With Quick Connect Hose Assembly) SN# 0M642774 & BelowFITTING, Femal Quick Connect
(Design 1-With Quick Connect Hose Assembly) SN# 0M642774 & Below -
1310-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1416-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1514257 REINFORCEMENT, PortREINFORCEMENT, Port
-
1614256 REINFORCEMENT, StarboardREINFORCEMENT, Starboard
-
1711-11971 NUT, (.312-18)NUT, (.312-18)
-
18862704A4 TUBE, DipstickTUBE, Dipstick
-
19861942T9 DIPSTICK, Oil LevelDIPSTICK, Oil Level
-
2054-805625 CLIP, Dipstick TubeCLIP, Dipstick Tube
-
2110-8M0040582 SCREWSCREW
-
2232-805505A4 HOSE, Oil Drain
(Design 1-With Quick Connect Hose Assembly) SN# 0M642774 & BelowHOSE, Oil Drain
(Design 1-With Quick Connect Hose Assembly) SN# 0M642774 & Below -
2232-865281 HOSE, OIl Drain
(Design II-Without Quick Connect Hose Assembly) SN# 0M642775 & UpHOSE, OIl Drain
(Design II-Without Quick Connect Hose Assembly) SN# 0M642775 & Up -
2232-865280 HOSE, Oil Drain, Jackshaft Models
(Design II Without Quick Connect Hose Assembly) SN# 0M642775 & UpHOSE, Oil Drain, Jackshaft Models
(Design II Without Quick Connect Hose Assembly) SN# 0M642775 & Up -
2354-863481 CLAMP, Ty StrapCLAMP, Ty Strap
-
24862777 FLANGE, DrainFLANGE, Drain
-
25862827 TETHER ASSEMBLYTETHER ASSEMBLY
-
2654-805524 CLIPCLIP
-
2712-27339 WASHERWASHER
-
-27-861246A05 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
