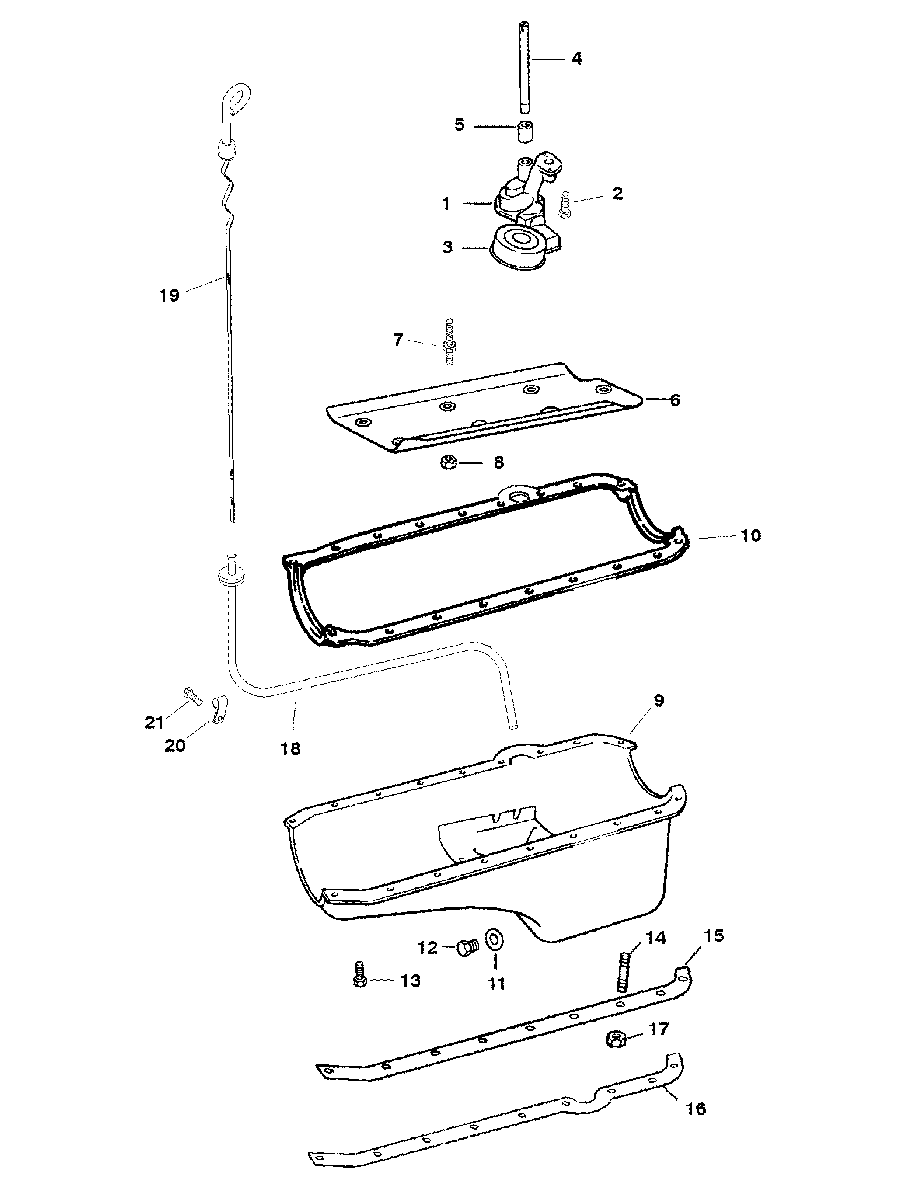

OIL PAN AND OIL PUMP для Mercruiser - 5.7LX BRAVO EFI (GEN+) GM 350 V-8 1997 0K001509 AND UP
-
№АртикулНазвание
-
1809907002 PUMP-OILPUMP-OIL
-
210-17346 BOLT-OIL PUMPBOLT-OIL PUMP
-
3809909 SCREEN-OIL PUMP PICK-UPSCREEN-OIL PUMP PICK-UP
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 DEFLECTOR-OILDEFLECTOR-OIL
-
716-850090 STUDSTUD
-
811-845602 NUT (3/8-16)NUT (3/8-16)
-
9809910 OIL PANOIL PAN
-
1027-138651 GASKET-OIL PANGASKET-OIL PAN
-
1127-8M0077608 GASKET-DRAIN SCREWGASKET-DRAIN SCREW
-
1210-809911001 SCREW-DRAIN (M12 X 25)SCREW-DRAIN (M12 X 25)
-
1310-14070 SCREW (1/4-20 X 5/8 IN.)SCREW (1/4-20 X 5/8 IN.)
-
1416-11989 STUDSTUD
-
1514257 REINFORCEMENT
(PORT)REINFORCEMENT
(PORT) -
1614256 REINFORCEMENT
(STARBOARD)REINFORCEMENT
(STARBOARD) -
1711-11971 NUTNUT
-
18860274A2 TUBE-DIPSTICKTUBE-DIPSTICK
-
19861942T7 DIPSTICKDIPSTICK
-
2054-805625 CLIP-DIPSTICK TUBECLIP-DIPSTICK TUBE
-
2110-8M0040582 SCREW (1/4-20 X 9/16 IN.)SCREW (1/4-20 X 9/16 IN.)
-
-27-75611A96 GASKET SET-ENGINE OVERHAULGASKET SET-ENGINE OVERHAUL
