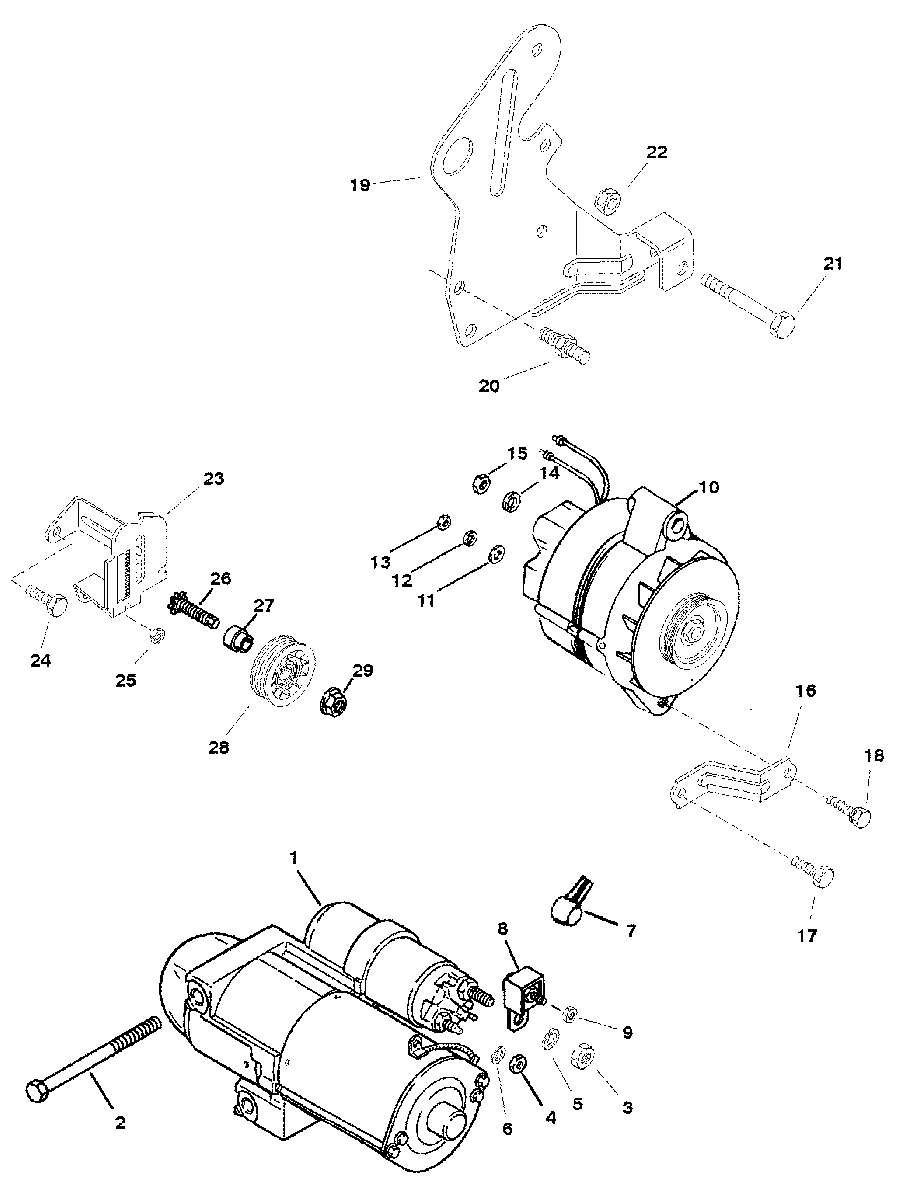

STARTER MOTOR AND ALTERNATOR для Mercruiser - 5.7LX BRAVO EFI (GEN+) GM 350 V-8 1997 0K001509 AND UP
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLY
(SEE "STARTER MOTOR" FOR BREAKDOWN)STARTER MOTOR ASSEMBLY
(SEE "STARTER MOTOR" FOR BREAKDOWN) -
210-8053432 SCREW (3/8-16 X 4-3/8 IN.)SCREW (3/8-16 X 4-3/8 IN.)
-
311-806949 NUT (M8-1.5)NUT (M8-1.5)
-
411-400211 NUT (M5-0.8)NUT (M5-0.8)
-
513-39107 LOCKWASHER (5/16 IN.)LOCKWASHER (5/16 IN.)
-
613-26996 LOCKWASHER (#10)LOCKWASHER (#10)
-
785-79695T BOOT-INSULATORBOOT-INSULATOR
-
888-79023A91 FUSE (90 AMP.)FUSE (90 AMP.)
-
911-21825 NUT (1/4-28)NUT (1/4-28)
-
10807653T ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN) -
1112-96457 WASHER-PHENOLICWASHER-PHENOLIC
-
1213-26996 LOCKWASHER (#10)LOCKWASHER (#10)
-
1311-79989 NUT (#10-24)NUT (#10-24)
-
1413-26992 LOCKWASHER (1/4 IN.)LOCKWASHER (1/4 IN.)
-
1511-94330 NUT (1/4-20)NUT (1/4-20)
-
16807750T BRACEBRACE
-
1710-98261 SCREW (3/8-16 X 3/4 IN.)SCREW (3/8-16 X 3/4 IN.)
-
1810-29198 SCREW & LOCKWASHER (5/16-18 X 7/8 IN.)SCREW & LOCKWASHER (5/16-18 X 7/8 IN.)
-
19860370T BRACKET-ALTERNATOR/POWER STEERINGBRACKET-ALTERNATOR/POWER STEERING
-
2016-860102 STUDSTUD
-
2110-56743 SCREW (3/8-24 X 3-1/8 IN.)SCREW (3/8-24 X 3-1/8 IN.)
-
2211-23161 NUT (3/8-24)NUT (3/8-24)
-
23807767T IDLER BRACKETIDLER BRACKET
-
2410-98261 SCREW (3/8-16 X 3/4 IN.)SCREW (3/8-16 X 3/4 IN.)
-
2511-29250 NUT (5/16-24)NUT (5/16-24)
-
2643-8M0113182 PINION STUDPINION STUD
-
27865193 BUSHINGBUSHING
-
28807757T PULLEYPULLEY
-
2911-859135 NUT (7/16-20)NUT (7/16-20)
