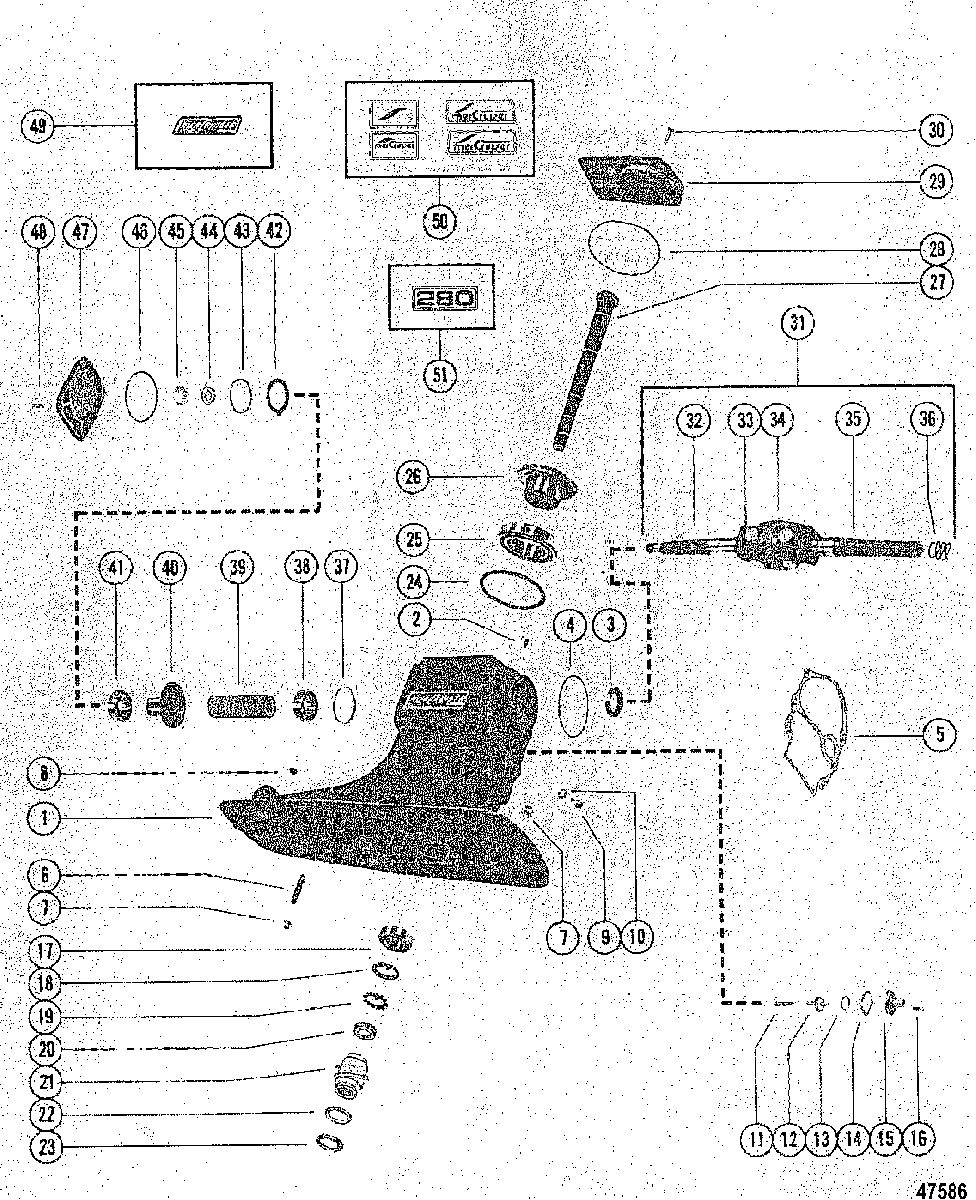

DRIVE SHAFT HOUSING ASSEMBLY для Mercruiser - 280-TRS 1975-1976 4203750 THRU 4895399
-
№АртикулНазвание
-
11571-4847A5 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
210-21934 SCREW, (.375-16 x .500), SET - DRIVE SHAFT HOUSINGSCREW, (.375-16 x .500), SET - DRIVE SHAFT HOUSING
-
326-62818 SEAL, DRIVE SHAFT HOUSINGSEAL, DRIVE SHAFT HOUSING
-
425-62817 O-RING, DRIVE SHAFT HOUSINGO-RING, DRIVE SHAFT HOUSING
-
527-54014Q1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSINGGASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
-
616-54674 STUD, (.437-14/.437-20 x 2.250), DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")STUD, (.437-14/.437-20 x 2.250), DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")
-
711-34933 NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUDNUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
-
819-47579 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSINGPLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
-
910-79953Q04 SCREW, (.375-16), VENT - DRIVE SHAFT HOUSINGSCREW, (.375-16), VENT - DRIVE SHAFT HOUSING
-
1012-191833 WASHER, SEALING - VENT SCREWWASHER, SEALING - VENT SCREW
-
1124-48442 SPRING, TENSION - OIL RELEASE CHECK VALVESPRING, TENSION - OIL RELEASE CHECK VALVE
-
1220-48219 CHECK VALVE, OIL RELEASECHECK VALVE, OIL RELEASE
-
1325-48452 QUAD RING, OIL RELEASE CHECK VALVEQUAD RING, OIL RELEASE CHECK VALVE
-
1427-66925 GASKET, CHECK VALVE GUIDEGASKET, CHECK VALVE GUIDE
-
1554168 GUIDE, CHECK VALVEGUIDE, CHECK VALVE
-
1610-22523 SCREW, (.190-32 x .75), CHECK VALVE GUIDE TO HOUSING (3/4")SCREW, (.190-32 x .75), CHECK VALVE GUIDE TO HOUSING (3/4")
-
1731-38356A1 BEARING SET, DRIVE SHAFTBEARING SET, DRIVE SHAFT
-
1812-62795 WASHER, DRIVE SHAFTWASHER, DRIVE SHAFT
-
1913-62788 LOCKWASHER, DRIVE SHAFTLOCKWASHER, DRIVE SHAFT
-
2011-41527T NUT, DRIVE SHAFTNUT, DRIVE SHAFT
-
2162787A1 COUPLING ASSEMBLY, OIL SLINGERCOUPLING ASSEMBLY, OIL SLINGER
-
2215-36178A02 SHIM ASSEMBLY, ROLLER BEARING TO COUPLING (.002-3-5-10)SHIM ASSEMBLY, ROLLER BEARING TO COUPLING (.002-3-5-10)
-
2312-62797 WASHER, ROLLER BEARING TO COUPLINGWASHER, ROLLER BEARING TO COUPLING
-
2415-846353A1 SHIM SET, TAPERED ROLLER BEARING (.002-3-5-10-250)SHIM SET, TAPERED ROLLER BEARING (.002-3-5-10-250)
-
2531-62799A1 BEARING SET, DRIVE GEARBEARING SET, DRIVE GEAR
-
2643-62879T1 GEAR, DRIVEN - DRIVE SHAFTGEAR, DRIVEN - DRIVE SHAFT
-
2745-62793T DRIVESHAFTDRIVESHAFT
-
2825-67202 O-RING, TOP COVERO-RING, TOP COVER
-
2962911T COVER, TOPCOVER, TOP
-
3010-35047 SCREW, (.375-16 x 1.250) Stainless Steel, COVER TO DRIVE SHAFT HOUSING (1 1/4")SCREW, (.375-16 x 1.250) Stainless Steel, COVER TO DRIVE SHAFT HOUSING (1 1/4")
-
3162782A8 UNIVERSAL JOINT ASSEMBLY, PINION GEAR
SN# 4345438 & BelowUNIVERSAL JOINT ASSEMBLY, PINION GEAR
SN# 4345438 & Below -
3162782A8 UNIVERSAL JOINT ASSEMBLY, PINION GEAR
SN# 4345439 & UpUNIVERSAL JOINT ASSEMBLY, PINION GEAR
SN# 4345439 & Up -
3262782A6 YOKE, UNIVERSAL JOINT (GEAR END)YOKE, UNIVERSAL JOINT (GEAR END)
-
3375832T1 CROSS AND BEARING ASSEMBLY
SN# 4345438 & BelowCROSS AND BEARING ASSEMBLY
SN# 4345438 & Below -
3375832T1 CROSS AND BEARING ASSEMBLY
SN# 4345439 & UpCROSS AND BEARING ASSEMBLY
SN# 4345439 & Up -
34393831 SOCKET, CENTER - UNIVERSAL JOINTSOCKET, CENTER - UNIVERSAL JOINT
-
3562784A1 YOKE, UNIVERSAL JOINT (COUPLING END)YOKE, UNIVERSAL JOINT (COUPLING END)
-
3624-62727 SPRING, UNIVERSAL JOINT (COUPLING END)SPRING, UNIVERSAL JOINT (COUPLING END)
-
3715-62833A1 SHIM SET, ROLLER BEARING TO HOUSING (.002-3-5-10)SHIM SET, ROLLER BEARING TO HOUSING (.002-3-5-10)
-
3831-38356A1 BEARING SET, UNIVERSAL JOINTBEARING SET, UNIVERSAL JOINT
-
3923-62789 SPACER, TAPERED ROLLER BEARINGSPACER, TAPERED ROLLER BEARING
-
4043-62878 GEAR, DRIVEGEAR, DRIVE
-
4131-8M0103475 BEARING ASSEMBLY, Tapered Roller, PINION GEARBEARING ASSEMBLY, Tapered Roller, PINION GEAR
-
4212-62786 WASHER, TAPERED ROLLER BEARINGWASHER, TAPERED ROLLER BEARING
-
4315-55499A1 SHIM ASSEMBLY, TAPERED ROLLER BEARING TO REAR COVER
(.002-3-5-10-200SHIM ASSEMBLY, TAPERED ROLLER BEARING TO REAR COVER
(.002-3-5-10-200 -
4412-48912 WASHER, PINION GEAR TO UNIVERSAL JOINTWASHER, PINION GEAR TO UNIVERSAL JOINT
-
4511-82671327 NUT, (1.00-14), PINION GEAR TO UNIVERSAL JOINTNUT, (1.00-14), PINION GEAR TO UNIVERSAL JOINT
-
4625-39695 O-RING, REAR COVERO-RING, REAR COVER
-
4762785T COVER, REARCOVER, REAR
-
4810-35047 SCREW, (.375-16 x 1.250) Stainless Steel, REAR COVER TO DRIVE SHAFT HOUSING (1 1/4")SCREW, (.375-16 x 1.250) Stainless Steel, REAR COVER TO DRIVE SHAFT HOUSING (1 1/4")
-
4937-14489A90 DECAL SET, DRIVE SHAFT HOUSING
SN# 4644909 & BelowDECAL SET, DRIVE SHAFT HOUSING
SN# 4644909 & Below -
5037-14489A90 DECAL SET, DRIVE SHAFT HOUSING
SN# 4644910 & UpDECAL SET, DRIVE SHAFT HOUSING
SN# 4644910 & Up -
5137-76762 DECAL, "280"
SN# 4644910 & UpDECAL, "280"
SN# 4644910 & Up
