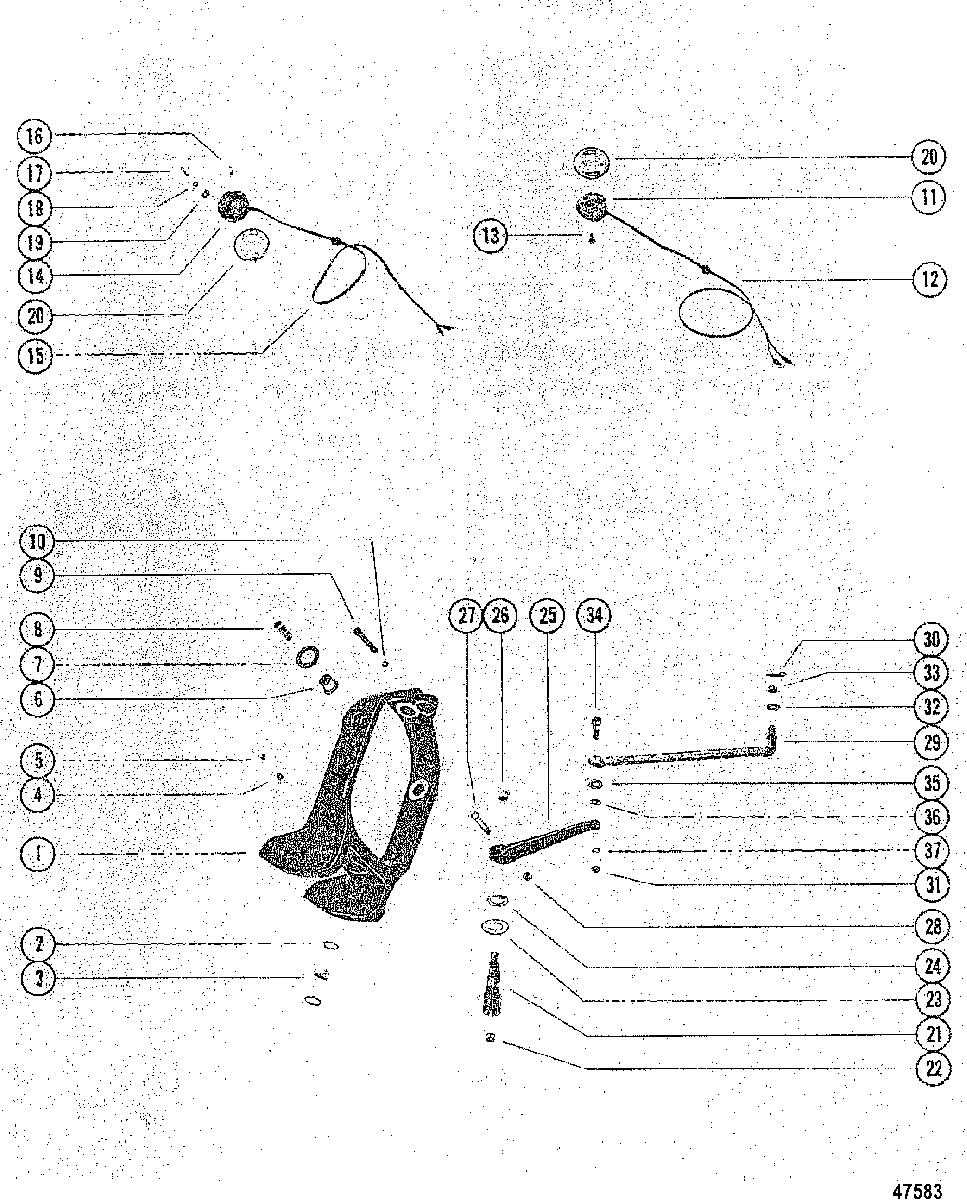

GIMBAL RING AND STEERING LEVER для Mercruiser - 280-TRS 1975-1976 4203750 THRU 4895399

№

Артикул

Название
1

42385A7 GIMBAL RING ASSEMBLY

GIMBAL RING ASSEMBLY

195 780 ₽
2

26-54927 SEAL, Oil, GIMBAL RING

SEAL, Oil, GIMBAL RING

2 220 ₽
3

31-54928 BEARING, Roller, GIMBAL RING (SWIVEL PIN)

BEARING, Roller, GIMBAL RING (SWIVEL PIN)

2 390 ₽
4

22-69059 FITTING, GREASE - GIMBAL RING

FITTING, GREASE - GIMBAL RING

720 ₽
5

19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING

LUBRICAP, GIMBAL RING GREASE FITTING

450 ₽
6

23-54002 BUSHING, GIMBAL RING (HINGE PIN)

BUSHING, GIMBAL RING (HINGE PIN)

2 170 ₽
7

12-54019 WASHER, ANTI-GALLING - BELL HOUSING (HINGE PIN)

WASHER, ANTI-GALLING - BELL HOUSING (HINGE PIN)

530 ₽
8

17-59812 PIN, HINGE - GIMBAL RING TO HOUSING (12 POINT SOCKET)

PIN, HINGE - GIMBAL RING TO HOUSING (12 POINT SOCKET)

6 590 ₽
9

10-45833 SCREW, (.312-18 x 2.500), UPPER SWIVEL SHAFT RETAINING - GIMBAL RING (2 1/2")

SCREW, (.312-18 x 2.500), UPPER SWIVEL SHAFT RETAINING - GIMBAL RING (2 1/2")

0 ₽
10

12-20546 WASHER, (.330 x .500 x .060), UPPER SWIVEL SHAFT RETAINING SCREW

WASHER, (.330 x .500 x .060), UPPER SWIVEL SHAFT RETAINING SCREW

400 ₽
11

63115A2 SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)

SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)

0 ₽
12

84-19279 HARNESS ASSEMBLY, TRIM LIMIT SWITCH

HARNESS ASSEMBLY, TRIM LIMIT SWITCH

7 680 ₽
13

10-63400 SCREW, (#6-32 x .125), HARNESS ATTACHING (5/32")

SCREW, (#6-32 x .125), HARNESS ATTACHING (5/32")

0 ₽
14

64947 SENDER, DUMMY (STARBOARD SIDE)

SENDER, DUMMY (STARBOARD SIDE)

2 060 ₽
15

84-64987 HARNESS ASSEMBLY, DUMMY SENDER

HARNESS ASSEMBLY, DUMMY SENDER

5 390 ₽
16

10-46942 SCREW, (#6-20 x .3125), HARNESS ATTACHING (5/16")

SCREW, (#6-20 x .3125), HARNESS ATTACHING (5/16")

100 ₽
17

10-37978 SCREW, (#10-32 x .750) Stainless Steel, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4")

SCREW, (#10-32 x .750) Stainless Steel, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4")

200 ₽
18

13-26996 LOCKWASHER, (#10) Stainless Steel, TRIM SENDER AND SWITCH SCREW

LOCKWASHER, (#10) Stainless Steel, TRIM SENDER AND SWITCH SCREW

60 ₽
19

57008 RETAINER, TRIM SENDER AND SWITCH SCREW

RETAINER, TRIM SENDER AND SWITCH SCREW

290 ₽
20

85-63990 INSULATOR, SWITCH AND SENDER TO GIMBAL RING

INSULATOR, SWITCH AND SENDER TO GIMBAL RING

610 ₽
21

42385A7 SHAFT, UPPER SWIVEL - GIMBAL RING TO GIMBAL HOUSING

SHAFT, UPPER SWIVEL - GIMBAL RING TO GIMBAL HOUSING

195 780 ₽
22

22-32561 PLUG, Pipe - Allen Head (.250-18), PIPE - UPPER SWIVEL SHAFT

PLUG, Pipe - Allen Head (.250-18), PIPE - UPPER SWIVEL SHAFT

430 ₽
23

12-54026 WASHER, UPPER SWIVEL SHAFT (2" O.D.)

WASHER, UPPER SWIVEL SHAFT (2" O.D.)

0 ₽
24

12-54027 WASHER, UPPER SWIVEL SHAFT (1 5/8" O.D.)

WASHER, UPPER SWIVEL SHAFT (1 5/8" O.D.)

0 ₽
25

88433 LEVER, Steering, STEERING

LEVER, Steering, STEERING

0 ₽
26

11-8M2014641 NUT, (.750-16), STEERING LEVER TO UPPER SWIVEL SHAFT

NUT, (.750-16), STEERING LEVER TO UPPER SWIVEL SHAFT

1 050 ₽
27

10-68479 SCREW, (.437-20 x 2.250), STEERING LEVER TO UPPER SWIVEL SHAFT (2 1/4")

SCREW, (.437-20 x 2.250), STEERING LEVER TO UPPER SWIVEL SHAFT (2 1/4")

610 ₽
28

11-34933 NUT, (.437-20) Stainless Steel, STEERING LEVER SCREW

NUT, (.437-20) Stainless Steel, STEERING LEVER SCREW

440 ₽
29

67538A1 LINK ROD ASSEMBLY, STEERING

LINK ROD ASSEMBLY, STEERING

0 ₽
30

18-45882 COTTER PIN, RETAINING - STEERING LINK ROD

COTTER PIN, RETAINING - STEERING LINK ROD

280 ₽
31

11-55438 NUT, (.375-24), LINK ROD BOLT

NUT, (.375-24), LINK ROD BOLT

180 ₽
32

12-20086 WASHER, (.390 x .620 x .060), LINK ROD

WASHER, (.390 x .620 x .060), LINK ROD

130 ₽
33

11-55438 NUT, (.375-24), LINK ROD

NUT, (.375-24), LINK ROD

180 ₽
34

10-66389 SCREW, (.375-24 x .875), LINK ROD TO STEERING LEVER

SCREW, (.375-24 x .875), LINK ROD TO STEERING LEVER

0 ₽
35

12-34966 WASHER, NYLON - LINK ROD BOLT

WASHER, NYLON - LINK ROD BOLT

0 ₽
36

13-54667 WASHER, WAVE - LINK ROD BOLT

WASHER, WAVE - LINK ROD BOLT

0 ₽
37

12-20086 WASHER, (.390 x .620 x .060), LINK ROD BOLT

WASHER, (.390 x .620 x .060), LINK ROD BOLT

130 ₽
