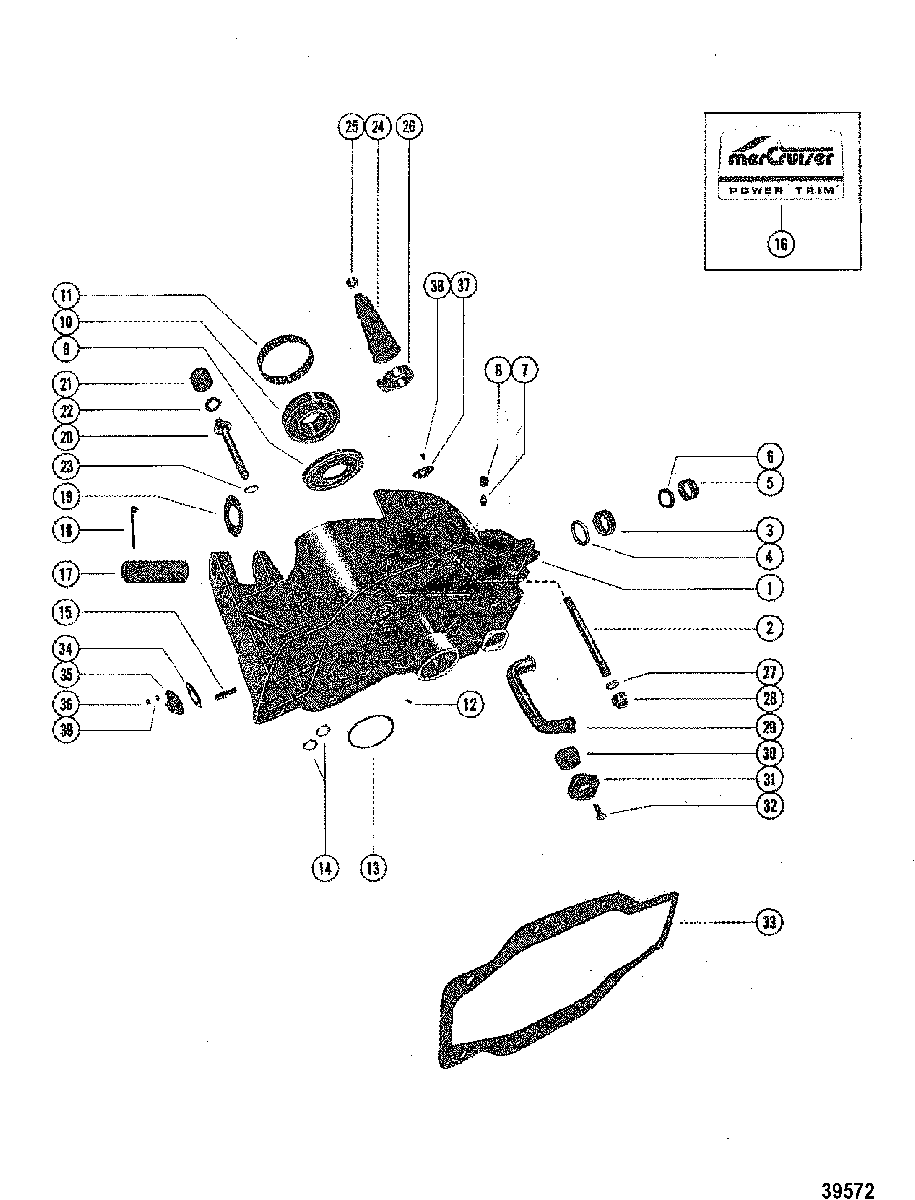

GIMBAL HOUSING ASSEMBLY для Mercruiser - 485 1980-1982 4893835 & Up
-
№АртикулНазвание
-
170861A1 GIMBAL HOUSING ASSEMBLY
(IN-LINE ENGINES)GIMBAL HOUSING ASSEMBLY
(IN-LINE ENGINES) -
170862A1 GIMBAL HOUSING ASSEMBLY
(V-8 ENGINES)GIMBAL HOUSING ASSEMBLY
(V-8 ENGINES) -
216-56296 STUD, (.437-20 x 4.750), GIMBAL HOUSING TO TRANSOM PLATESTUD, (.437-20 x 4.750), GIMBAL HOUSING TO TRANSOM PLATE
-
331-32536 BEARING, ROLLER - GIMBAL HOUSING (LOWER)BEARING, ROLLER - GIMBAL HOUSING (LOWER)
-
426-32911 SEAL, Oil, LOWER GIMBAL HOUSING ROLLER BEARINGSEAL, Oil, LOWER GIMBAL HOUSING ROLLER BEARING
-
531-21145 BEARING, Roller, GIMBAL HOUSING (UPPER)BEARING, Roller, GIMBAL HOUSING (UPPER)
-
626-54925 SEAL, Oil, UPPER GIMBAL HOUSING BEARINGSEAL, Oil, UPPER GIMBAL HOUSING BEARING
-
722-74036 FITTING, Grease, GIMBAL HOUSING (STAINLESS STEEL)
(Use with greased bearing)FITTING, Grease, GIMBAL HOUSING (STAINLESS STEEL)
(Use with greased bearing) -
710-8M2015913 PLUG, (.250-28 x .320)
(Use with non-greased bearing)PLUG, (.250-28 x .320)
(Use with non-greased bearing) -
819-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTINGLUBRICAP, GIMBAL HOUSING GREASE FITTING
-
926-88416 SEAL, Oil, GREASE - GIMBAL HOUSINGSEAL, Oil, GREASE - GIMBAL HOUSING
-
1030-879194A02 BEARING ASSEMBLY, BALL -GIMBAL HOUSINGBEARING ASSEMBLY, BALL -GIMBAL HOUSING
-
1161075 TOLERANCE RING, GIMBAL HOUSING BEARINGTOLERANCE RING, GIMBAL HOUSING BEARING
-
1210-69707 SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGESCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
-
1325-20863 O-RING, GIMBAL HOUSINGO-RING, GIMBAL HOUSING
-
1425-23145 O-RING, (.984 x .139), GIMBAL HOUSING
(V-8 ENGINES)O-RING, (.984 x .139), GIMBAL HOUSING
(V-8 ENGINES) -
1516-56766 STUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSINGSTUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSING
-
1637-87018 DECAL, GIMBAL HOUSINGDECAL, GIMBAL HOUSING
-
1717-45212 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
-
1818-34212 COTTER PIN, RETAINING - LOWER SWIVEL PINCOTTER PIN, RETAINING - LOWER SWIVEL PIN
-
1912-32518 WASHER, GIMBAL HOUSING TO LOWER SWIVEL PINWASHER, GIMBAL HOUSING TO LOWER SWIVEL PIN
-
208M0030655 BOLT ASSEMBLY, Anodic, GIMBAL HOUSING TO TRANSOM PLATEBOLT ASSEMBLY, Anodic, GIMBAL HOUSING TO TRANSOM PLATE
-
2197-55989Q9 ANODE, BOLT ASSEMBLYANODE, BOLT ASSEMBLY
-
2212-56085 WASHER, ANODIC BOLT ASSEMBLYWASHER, ANODIC BOLT ASSEMBLY
-
2312-32620 WASHER, GIMBAL HOUSING BOLTWASHER, GIMBAL HOUSING BOLT
-
2474639A2 BELLOWS, Shift CableBELLOWS, Shift Cable
-
2554-8M0090424 CLAMP, ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLECLAMP, ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE
-
2654-815504320 CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSINGCLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
-
2712-34567 WASHER, GIMBAL HOUSING STUDWASHER, GIMBAL HOUSING STUD
-
2811-34933 NUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUDNUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUD
-
2932-41672A01 TUBE, WATER - GIMBAL HOUSING
(IN-LINE ENGINES)TUBE, WATER - GIMBAL HOUSING
(IN-LINE ENGINES) -
2932-41672A01 TUBE, WATER - GIMBAL HOUSING
(V-8 ENGINES)TUBE, WATER - GIMBAL HOUSING
(V-8 ENGINES) -
3023-28055 BUSHING, RUBBER - WATER TUBE SEALINGBUSHING, RUBBER - WATER TUBE SEALING
-
3132517 COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSINGCOVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING
-
3210-28635 SCREW, (.250-20 x .620) Stainless Steel, WATER TUBE SEALING COVER TO GIMBAL HOUSINGSCREW, (.250-20 x .620) Stainless Steel, WATER TUBE SEALING COVER TO GIMBAL HOUSING
-
3365533A1 SEAL, GIMBAL HOUSING TO TRANSOMSEAL, GIMBAL HOUSING TO TRANSOM
-
3427-476441 GASKET, HYDRAULIC CONNECTORGASKET, HYDRAULIC CONNECTOR
-
3547347 CONNECTOR, HYDRAULIC - GIMBAL HOUSINGCONNECTOR, HYDRAULIC - GIMBAL HOUSING
-
3611-35888 NUT, (.250-28) Stainless Steel, GIMBAL HOUSING TO HYDRAULIC CONNECTOR STUDNUT, (.250-28) Stainless Steel, GIMBAL HOUSING TO HYDRAULIC CONNECTOR STUD
-
3757322T COVER, RETAINING - GIMBAL HOUSINGCOVER, RETAINING - GIMBAL HOUSING
-
3810-28635 SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSINGSCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING
-
3913-78968 LOCKWASHER, Internal (.250), HYDRAULIC CONNECTOR TO GIMBAL HOUSING STUDLOCKWASHER, Internal (.250), HYDRAULIC CONNECTOR TO GIMBAL HOUSING STUD
