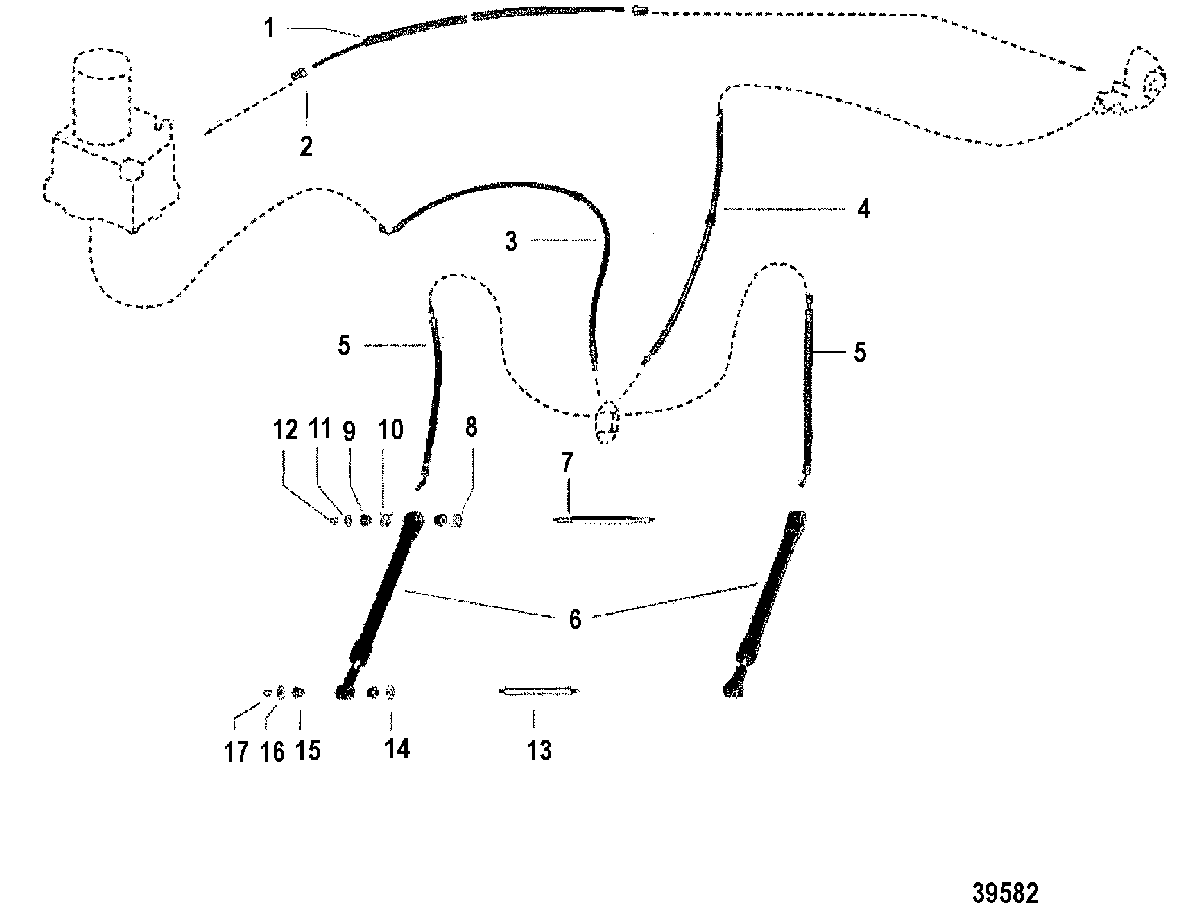

TRIM CYLINDERS AND HYDRAULIC HOSES(INTERNAL LINES) для Mercruiser - 485 1980-1982 4893835 & Up
-
№АртикулНазвание
-
132-52951A1 HOSE, HYDRAULIC PUMP TO VALVE
(IN-LINE ENGINES)HOSE, HYDRAULIC PUMP TO VALVE
(IN-LINE ENGINES) -
132-8M0111655 TUBING, HYDRAULIC PUMP TO VALVE
(V-8 ENGINES)TUBING, HYDRAULIC PUMP TO VALVE
(V-8 ENGINES) -
222-49718 NUT, COMPRESSION-HYDRAULIC TUBE ATTACHINGNUT, COMPRESSION-HYDRAULIC TUBE ATTACHING
-
332-55816 HOSE, HYDRAULIC-CONNECTOR TO PUMP
(IN-LINE ENGINES)HOSE, HYDRAULIC-CONNECTOR TO PUMP
(IN-LINE ENGINES) -
332-59841 HOSE, HYDRAULIC-CONNECTOR TO PUMP (44")
(V-8 ENGINES)HOSE, HYDRAULIC-CONNECTOR TO PUMP (44")
(V-8 ENGINES) -
432-59842 HOSE, HYDRAULIC-CONNECTOR TO REVERSE VALVE (29 1/2")HOSE, HYDRAULIC-CONNECTOR TO REVERSE VALVE (29 1/2")
-
532-86036Q HOSE, HYDRAULIC-CONNECTOR TO TRIM CYLINDER (12 1/2")HOSE, HYDRAULIC-CONNECTOR TO TRIM CYLINDER (12 1/2")
-
645706A14 TRIM CYLINDER ASSEMBLY, COMPLETETRIM CYLINDER ASSEMBLY, COMPLETE
-
-45522A3 REPAIR KIT, Pivot End, TRIM CYLINDERREPAIR KIT, Pivot End, TRIM CYLINDER
-
-77442A1 REPAIR KIT, Outer Tube, TRIM CYLINDERREPAIR KIT, Outer Tube, TRIM CYLINDER
-
-25-60342A2 O-RING KIT, TRIM CYLINDERO-RING KIT, TRIM CYLINDER
-
717-45735 PIN, Front Anchor, TRIM CYLINDER TO GIMBAL RING (10 11/32")PIN, Front Anchor, TRIM CYLINDER TO GIMBAL RING (10 11/32")
-
812-45737 WASHER, FRONT ANCHOR PINWASHER, FRONT ANCHOR PIN
-
923-89574 BUSHING, RUBBER-FRONT ANCHOR PINBUSHING, RUBBER-FRONT ANCHOR PIN
-
1024-46312 SPRING, FRONT ANCHOR PINSPRING, FRONT ANCHOR PIN
-
1112-46765 WASHER, (.390 x 1.50 x .120), FRONT ANCHOR PINWASHER, (.390 x 1.50 x .120), FRONT ANCHOR PIN
-
1211-82671013 NUT, (.375-24), FRONT ANCHOR PINNUT, (.375-24), FRONT ANCHOR PIN
-
1317-45738 PIN, REAR ANCHOR-TRIM CYLINDER TO DRIVE SHAFT HSG. (7 1/2")PIN, REAR ANCHOR-TRIM CYLINDER TO DRIVE SHAFT HSG. (7 1/2")
-
1412-45737 WASHER, REAR ANCHOR PINWASHER, REAR ANCHOR PIN
-
1523-89574 BUSHING, RUBBER-REAR ANCHOR PINBUSHING, RUBBER-REAR ANCHOR PIN
-
1612-46765 WASHER, (.390 x 1.50 x .120), REAR ANCHOR PINWASHER, (.390 x 1.50 x .120), REAR ANCHOR PIN
-
1711-82671013 NUT, (.375-24), REAR ANCHOR PINNUT, (.375-24), REAR ANCHOR PIN
-
--24-86687A1 SPRING/CONTINUINTY KITSPRING/CONTINUINTY KIT
