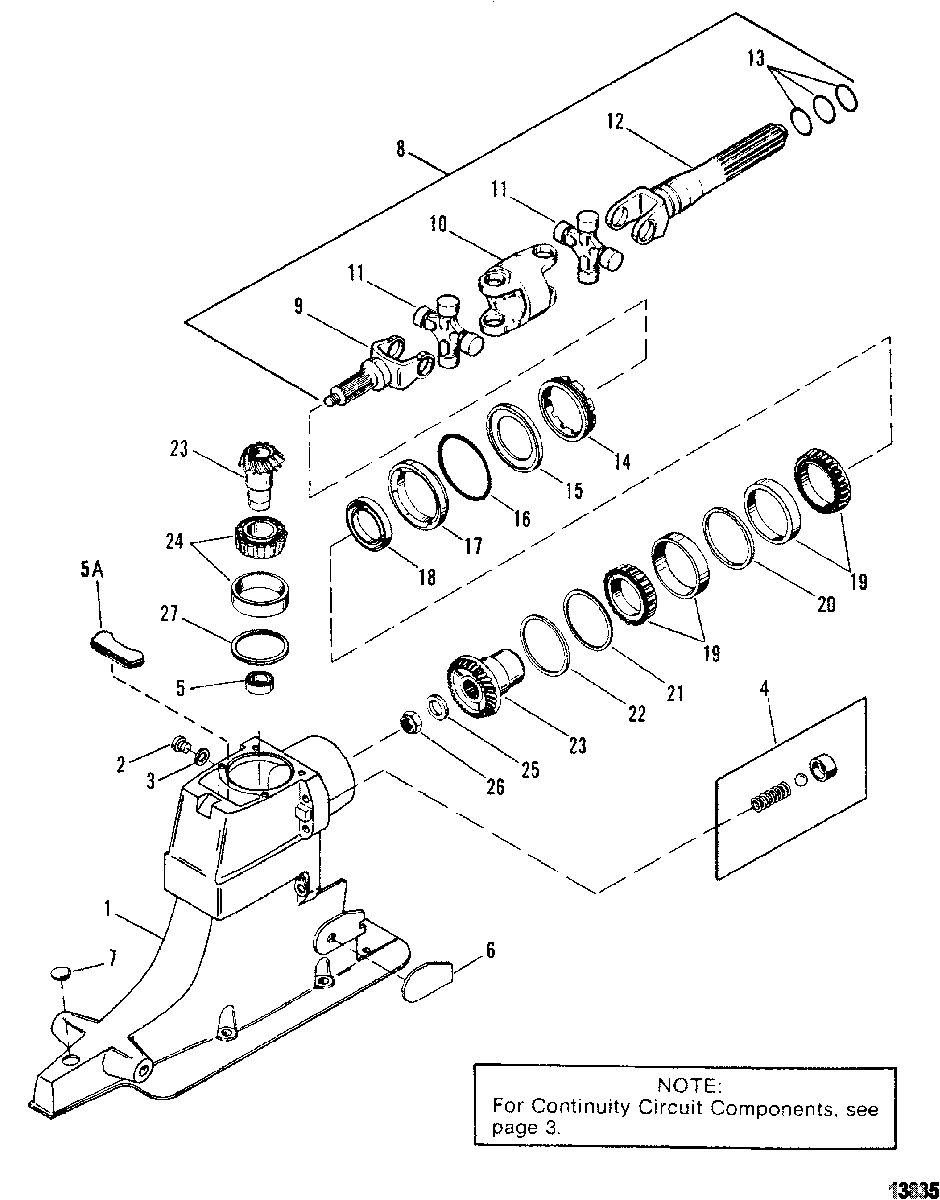

Drive Shaft Housing And Drive Gears для Mercruiser - ALPHA ONE (GEN.II) 1991-1995 0D469859 THRU 0F679999
-
№АртикулНазвание
-
11547-815930A20 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
210-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
312-191833 WASHER, FiberWASHER, Fiber
-
325-805726 O-RING, RubberO-RING, Rubber
-
424-17997A1 SPRING KIT, RubberSPRING KIT, Rubber
-
526-66302 SEAL, Oil
SN# 0M400411 & BelowSEAL, Oil
SN# 0M400411 & Below -
526-864319 SEAL, Oil
SN# 0M400412 & UpSEAL, Oil
SN# 0M400412 & Up -
5A861738 PLUGPLUG
-
68M2015937 WEAR PAD, PortWEAR PAD, Port
-
6879346T30 WEAR PAD, StarboardWEAR PAD, Starboard
-
719-824928001 PLUGPLUG
-
8814819A2 UNIVERSAL JOINT
(Coupling Yoke Has Two O-Rings) SN# D869999 & BelowUNIVERSAL JOINT
(Coupling Yoke Has Two O-Rings) SN# D869999 & Below -
946020T02 YOKE, Gear End
(Coupling Yoke Has Two O-Rings) SN# D869999 & BelowYOKE, Gear End
(Coupling Yoke Has Two O-Rings) SN# D869999 & Below -
10393831 SOCKET, Center
(Coupling Yoke Has Two O-Rings) SN# D869999 & BelowSOCKET, Center
(Coupling Yoke Has Two O-Rings) SN# D869999 & Below -
1175832T1 CROSS AND BEARING
(Coupling Yoke Has Two O-Rings) SN# D869999 & BelowCROSS AND BEARING
(Coupling Yoke Has Two O-Rings) SN# D869999 & Below -
1259830A7 YOKE ASSEMBLY, Coupling End
(Coupling Yoke Has Two O-Rings) SN# D869999 & BelowYOKE ASSEMBLY, Coupling End
(Coupling Yoke Has Two O-Rings) SN# D869999 & Below -
1325-25439 O-RING, (.862 x .103)
(Coupling Yoke Has Two O-Rings) SN# D869999 & BelowO-RING, (.862 x .103)
(Coupling Yoke Has Two O-Rings) SN# D869999 & Below -
8814819A2 UNIVERSAL JOINT
(Coupling Yoke Has Three O-Rings) SN# D870000 & UpUNIVERSAL JOINT
(Coupling Yoke Has Three O-Rings) SN# D870000 & Up -
946020T02 YOKE, Gear End
(Coupling Yoke Has Three O-Rings) SN# D870000 & UpYOKE, Gear End
(Coupling Yoke Has Three O-Rings) SN# D870000 & Up -
10393831 SOCKET, Center
(Coupling Yoke Has Three O-Rings) SN# D870000 & UpSOCKET, Center
(Coupling Yoke Has Three O-Rings) SN# D870000 & Up -
11805536A2 CROSS AND BEARING
(Coupling Yoke Has Three O-Rings) SN# D870000 & UpCROSS AND BEARING
(Coupling Yoke Has Three O-Rings) SN# D870000 & Up -
12814819A3 YOKE, Coupler End
(Coupling Yoke Has Three O-Rings) SN# D870000 & UpYOKE, Coupler End
(Coupling Yoke Has Three O-Rings) SN# D870000 & Up -
1325-25439 O-RING, (.862 x .103)
(Coupling Yoke Has Three O-Rings) SN# D870000 & UpO-RING, (.862 x .103)
(Coupling Yoke Has Three O-Rings) SN# D870000 & Up -
1325-35027 O-RING, (1.046)O-RING, (1.046)
-
148168112 RETAINERRETAINER
-
1535983 RINGRING
-
1625-70937 O-RINGO-RING
-
1766081A2 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
1826-823894 SEAL, OilSEAL, Oil
-
1931-35988A12 BEARING KIT, RollerBEARING KIT, Roller
-
2023-35985 SPACERSPACER
-
2115-35980A1 SHIM SETSHIM SET
-
2223-8M0124132 SHIM, SpacerSHIM, Spacer
-
2343-55778A3 GEAR KIT (2.40 Ratio)
(20-24 Gear Ratio)GEAR KIT (2.40 Ratio)
(20-24 Gear Ratio) -
2343-55778A3 GEAR KIT (1.98 Ratio)
(20-24 Gear Ratio)GEAR KIT (1.98 Ratio)
(20-24 Gear Ratio) -
2343-45814A5 GEAR KIT (1.65 Ratio)
(24-24 Gear Ratio)GEAR KIT (1.65 Ratio)
(24-24 Gear Ratio) -
2343-75325A3 GEAR KIT (1.84 Ratio)
(17-19 Gear Ratio)GEAR KIT (1.84 Ratio)
(17-19 Gear Ratio) -
2343-18411A2 GEAR KIT (1.50 Ratio)
(20-22 Gear Ratio)GEAR KIT (1.50 Ratio)
(20-22 Gear Ratio) -
2431-35990A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
2431-32573A1 BEARING ASSEMBLY, Roller (1.50 Ratio Only)BEARING ASSEMBLY, Roller (1.50 Ratio Only)
-
2512-45810 WASHERWASHER
-
2611-22339 NUT, (.625-18)NUT, (.625-18)
-
2715-36178A02 SHIM SETSHIM SET
-
2826-88397A1 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
