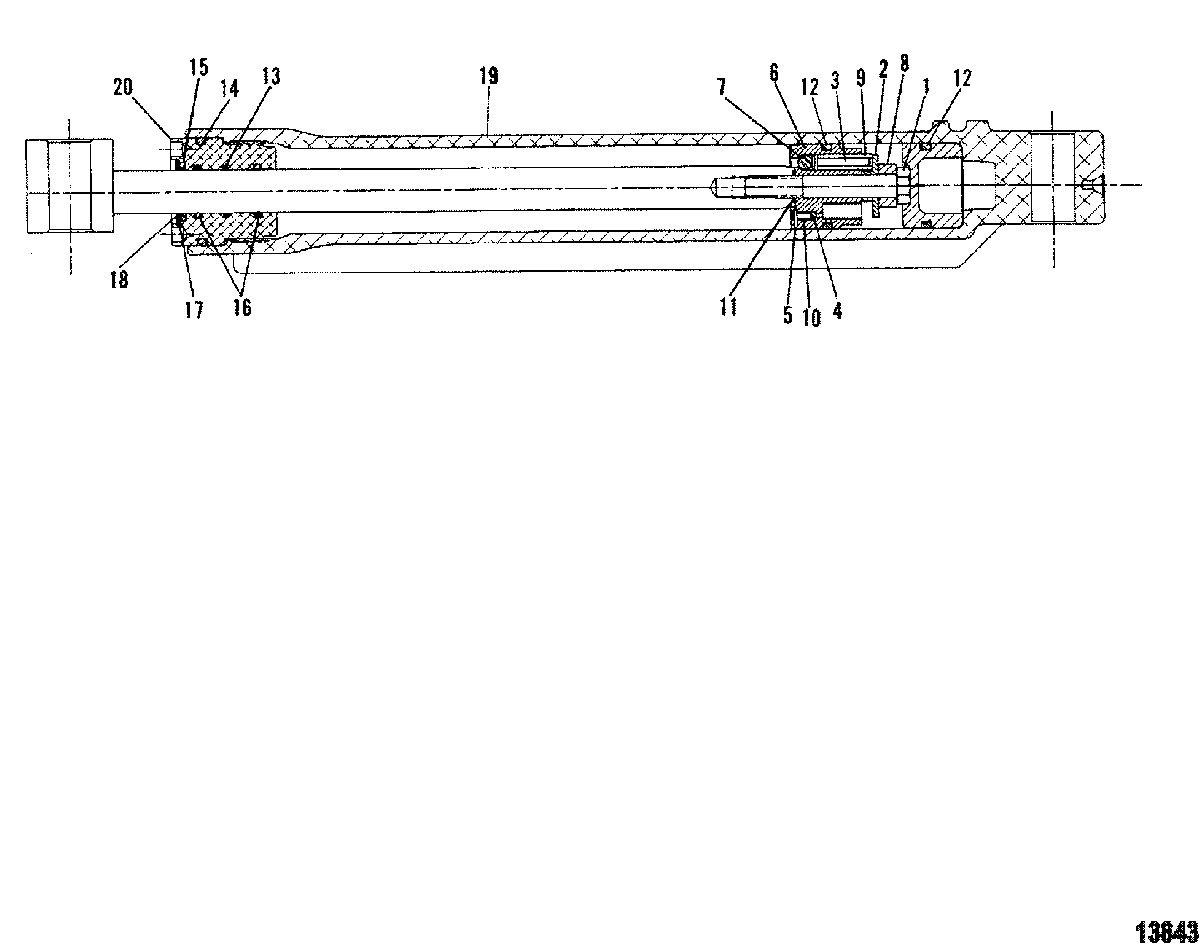

Power Trim Cylinder Repair Kits для Mercruiser - ALPHA ONE (GEN.II) 1991-1995 0D469859 THRU 0F679999
-
№АртикулНазвание
-
-87399A3 OVERHAUL KITOVERHAUL KIT
-
1NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
2NSS NOT SOLD SEPARATE, Spring SeatNOT SOLD SEPARATE, Spring Seat
-
3NSS NOT SOLD SEPARATE, Valve SeatNOT SOLD SEPARATE, Valve Seat
-
4NSS NOT SOLD SEPARATE, Steel Ball (.109 Diameter)NOT SOLD SEPARATE, Steel Ball (.109 Diameter)
-
5NSS NOT SOLD SEPARATE, Spring PinNOT SOLD SEPARATE, Spring Pin
-
6NSS NOT SOLD SEPARATE, Shock PistonNOT SOLD SEPARATE, Shock Piston
-
7NSS NOT SOLD SEPARATE, Steel Ball (.250 Diameter)NOT SOLD SEPARATE, Steel Ball (.250 Diameter)
-
8NSS NOT SOLD SEPARATE, SpacerNOT SOLD SEPARATE, Spacer
-
9NSS NOT SOLD SEPARATE, Compression SpringNOT SOLD SEPARATE, Compression Spring
-
10NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
-25-87400A2 SEAL KITSEAL KIT
-
11NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
12NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
13NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
14NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
15NSS NOT SOLD SEPARATE, Scraper RodNOT SOLD SEPARATE, Scraper Rod
-
16NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
17NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
18NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
18815935T TUBE, Port CylinderTUBE, Port Cylinder
-
19815954T TUBE, Starboard CylinderTUBE, Starboard Cylinder
-
2098-8M0118340 CAP, Rod EndCAP, Rod End
