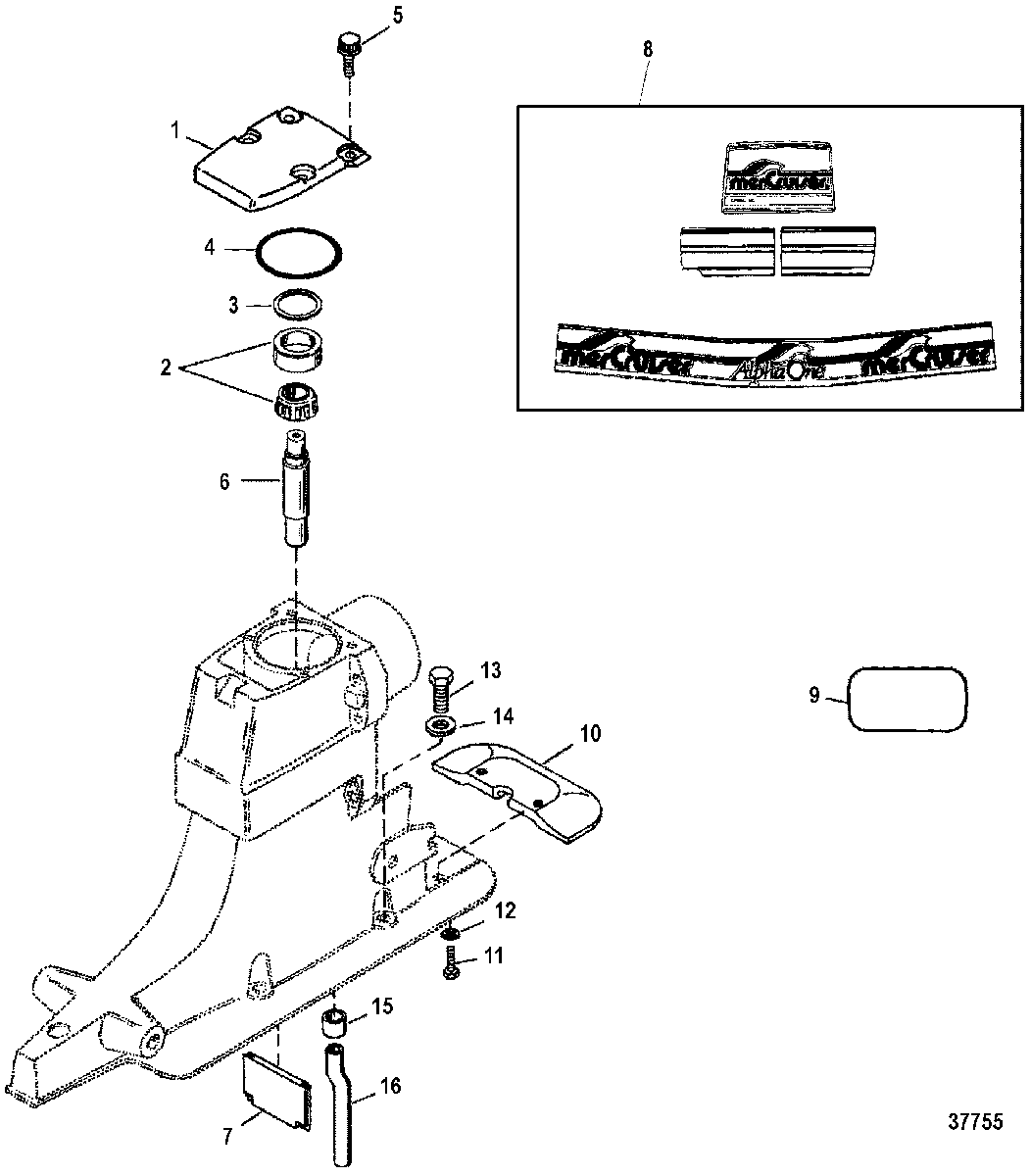

DRIVESHAFT HOUSING AND DRIVESHAFT для Mercruiser - ALPHA ONE (GEN.II) 1996-1997 0F680000 THRU 0K999999
-
№АртикулНазвание
-
1828692A1 COVER ASSEMBLYCOVER ASSEMBLY
-
231-32575T1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
315-32563A1 SHIM SETSHIM SET
-
425-32546 O-RINGO-RING
-
510-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
645-557961 DRIVESHAFT, UpperDRIVESHAFT, Upper
-
7815932 FILLER WALLFILLER WALL
-
837-817387A91 DECAL SETDECAL SET
-
937-13722A11 DECAL SET, Engine Model
(3.0LX)DECAL SET, Engine Model
(3.0LX) -
937-13722A13 DECAL SET, Engine Model
(4.3L/4.3LX/5.7L)DECAL SET, Engine Model
(4.3L/4.3LX/5.7L) -
937-13722A14 DECAL SET
(4.3LX/4.3LXH/262 MAG)(GEN +)DECAL SET
(4.3LX/4.3LXH/262 MAG)(GEN +) -
937-13722A15 DECAL SET
(5.7L/LX CARB & EFI)DECAL SET
(5.7L/LX CARB & EFI) -
937-13722A16 DECAL SET
(350 MAGNUM)DECAL SET
(350 MAGNUM) -
1097-821629Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
1110-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
1213-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
1310-816601 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
1412-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
1526-88397 SEALSEAL
-
1632-860220 TUBE, WaterTUBE, Water
-
-26-88397A1 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
