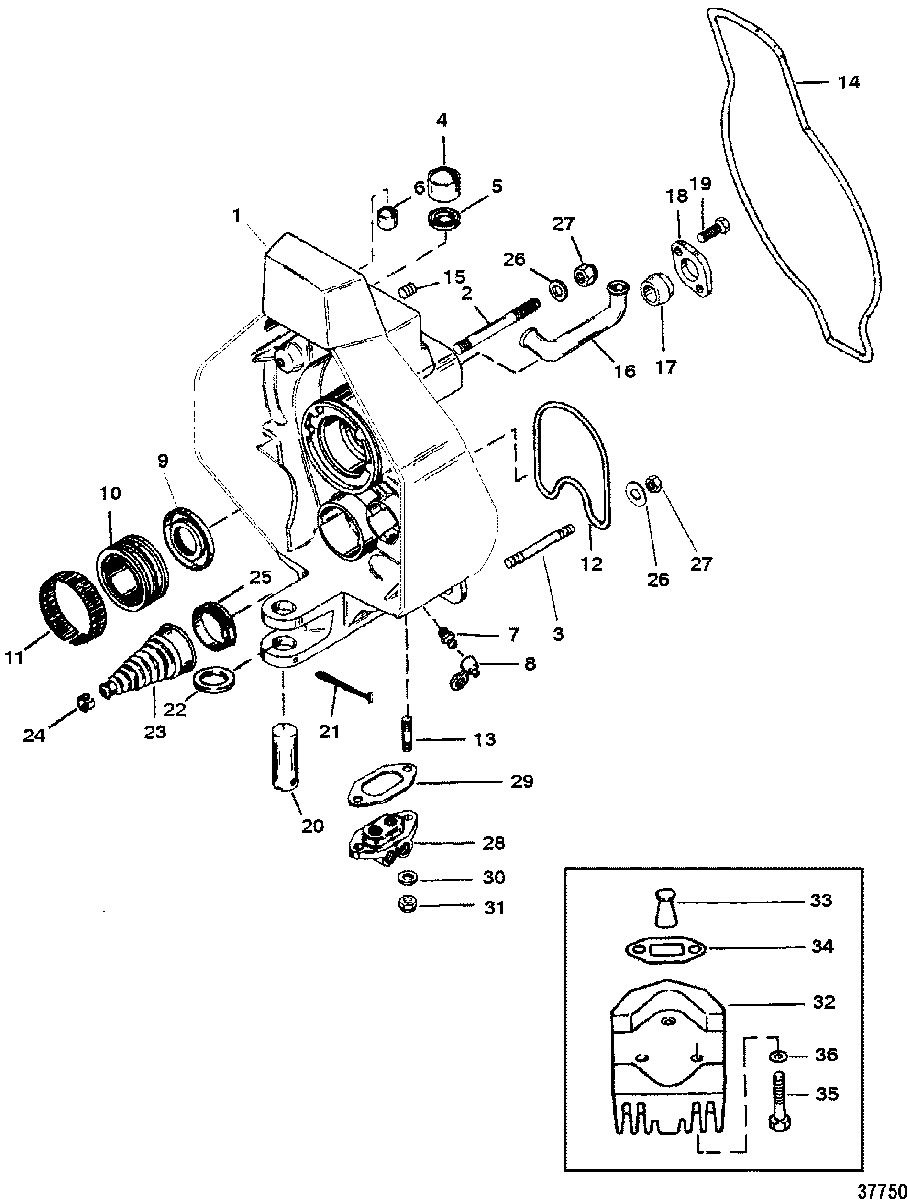

GIMBAL HOUSING для Mercruiser - ALPHA ONE (GEN.II) 1996-1997 0F680000 THRU 0K999999
-
№АртикулНазвание
-
18M0062568 GIMBAL HOUSING ASSEMBLYGIMBAL HOUSING ASSEMBLY
-
216-56296 STUD, (.437-20 x 4.750)STUD, (.437-20 x 4.750)
-
316-818834 STUD, (.437-20 x 4.250)STUD, (.437-20 x 4.250)
-
423-983571 BUSHINGBUSHING
-
526-8M2005029 SEAL, OilSEAL, Oil
-
623-98356 BUSHINGBUSHING
-
722-74036 FITTING, Grease (1/4-28)
(Use with greased bearing)FITTING, Grease (1/4-28)
(Use with greased bearing) -
710-8M2015913 PLUG, (.250-28 x .320)
(Use with non-greased bearing)PLUG, (.250-28 x .320)
(Use with non-greased bearing) -
819-77633Q LUBRICAPLUBRICAP
-
926-88416 SEAL, OilSEAL, Oil
-
1030-879194A02 BEARING ASSEMBLYBEARING ASSEMBLY
-
1161075 TOLERANCE RINGTOLERANCE RING
-
1241802 SEAL, RubberSEAL, Rubber
-
1316-56766 STUD, (.250-20/.250-28 x 1.380)STUD, (.250-20/.250-28 x 1.380)
-
1443713 SEALSEAL
-
1522-73379 PLUG, (.250-18)PLUG, (.250-18)
-
1632-416721 TUBE, WaterTUBE, Water
-
1723-8165991 BUSHINGBUSHING
-
188M0092452 COVERCOVER
-
1910-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2017-8M0073409 SWIVEL PIN, LowerSWIVEL PIN, Lower
-
2118-54929 COTTER PINCOTTER PIN
-
2212-32518 WASHERWASHER
-
2374639A2 BELLOWS, Shift CableBELLOWS, Shift Cable
-
2454-8M0090424 CLAMPCLAMP
-
2554-815504320 CLAMP, Worm GearCLAMP, Worm Gear
-
2612-34567 WASHERWASHER
-
2711-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
288M0137703 MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
2927-988231 GASKETGASKET
-
3013-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
3111-8267119 NUT, (.250-28)NUT, (.250-28)
-
3297-821631Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
3312077 SEALSEAL
-
3427-995061 GASKETGASKET
-
3510-86885 SCREW, (.250-20 x 1.500) Stainless SteelSCREW, (.250-20 x 1.500) Stainless Steel
-
3613-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
-22-88847A1 PLUG KIT, Access HolePLUG KIT, Access Hole
